Specifications
Brand Name :
CINACHARM
Model Number :
3.2×48
Certification :
CE ISO BV SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
15 working days after got advanced payment
Packaging Details :
China Standard Package
Product name :
Rotary Kiln
Productivity :
1000t/d
Inclined degree :
3.5%
Support :
3 pieces
Kiln body speed main drive :
0.375-3.75
Lower speed :
16.6r/h
Description

Cement Clinker Making Machinery Rotary Kiln Lithium Powder Rotary Kiln Sponge Iron Plant

Rotary Kiln belongs to building material equipment, according to different materials, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln. Cement kiln is used for making cement clinker and there are dry and wet methods to make cement clinker. Metallurgy chemical kiln is widely used for magnetic roasting of poor iron ore and oxidizing roasting of chrome and nickel in the steel factory; backing high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminum factory and baking chrome ore and chrome powder in the chemical plant. The Lime Kiln is used for roasting active lime in steel works and ferroalloy plants and light roasting dolomite.

Cement Clinker Making Machinery Rotary Kiln / Lithium Powder Rotary Kiln Sponge Iron Plant

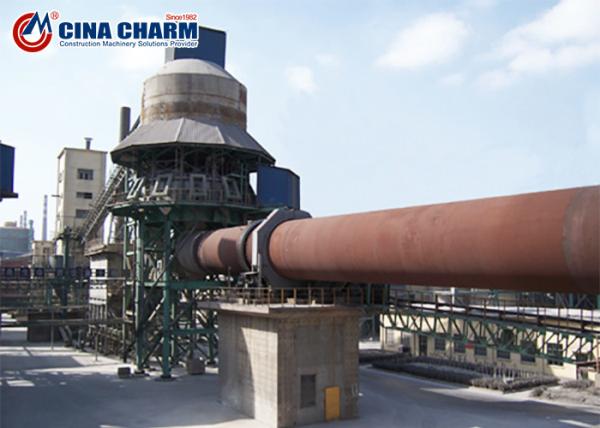

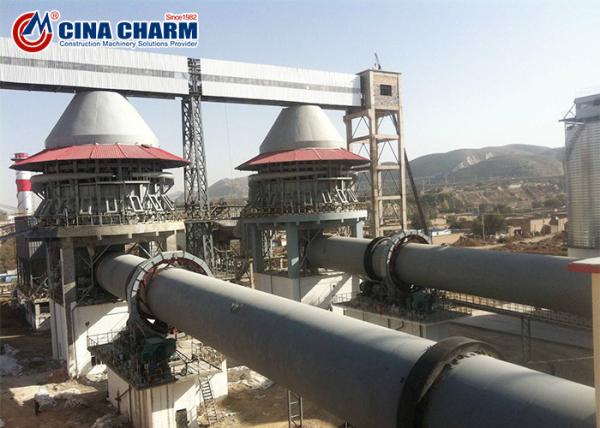

The rotary kiln from china professional manufacture Hongji Group Machinery is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly around its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, the materials gradually move down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or 'firing pipe') which acts like a large burner. The fuel may be gas, oil or pulverized coal.

Model(m) Φ3.2×48 Φ3.2×50 Φ3.3×52 Φ4×60 Φ4.2×60
Productivity(t/d) 1000 1200 1200 2500 2800
Inclined degree(％) 3.5 3.5 3.5 3.5 3.5
Support(Pieces) 3 3 3 3 3
Kiln body speed Block wheel form Mechanical Hydraulic Hydraulic Hydraulic Hydraulic
Kiln body speed main drive(R/Min) 0.375-3.75 0.398-3.975 0.391-3.91 0.396-3.96 0.4165-4.165
Lower speed(R/Hour) 16.6 11.585 8.82 8.56 10.35
Main drive Motor Model ZSN4-280-21B ZSN4-280-11B ZSN4-315-082 ZSN4-355-092 ZSN4-355-12
Rated power(kw) 160 190 190 315 420
Speed adjust range(r/minute) 100-1000 150-1500 100-1000 100-1000 100-1000
Voltage(V) 440 440 440 440 440
Reducer Model NZS1240-28 ZL130-16 ZSY500-28 ZSY630-35.5 ZSY710-35.5
Speed 27.469 40.85 27.707 34.601 35.526

Auxiliary drive

 Motor Model Y180L-4 Y180L-4 Y180L-4 Y200L-4 Y225S-4
Rated(kw) 22 22 22 30 37
Speed(r/min) 1470 1470 1470 1470 1480
Voltage(V) 380 380 380 380 380
Reducer Model ZL50-10 ZL50-10 ZSY224-40 ZL65-16 ZSY280-35.5
Speed 19.99 20.17 39.063 40.85 35.748
Totally weight(T) 252 263 280.8 487.5 576.1
