Specifications
Brand Name :
Cinacharm
Certification :
CE ISO BV
Place of Origin :
Henan province, China
MOQ :
1 set
Price :
10,000 USD/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
10-15 days
Packaging Details :
China standard package
Condition :
New
Dimension(l*w*h) :
Working Site
Warranty :
12 months
Weight :
According to the model
Voltage :
Customized 220V/380V/415V
Features :
Automatic,High Efficiency
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Field maintenance and repair service
Name :
Dry mix mortar station
Advantage :
Convenient Maintenance
Color :
Customer's Request
Packaging :
15-50kg/bag
Description

Premixed Batch Dry Mortar Production Plant professional making machine/Hot sale high efficiency dry mixed mortar equipment

The advantages of our fully automatic dry mortar mixing equipment:
1. A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2. The ingredients are accurate, can automatically calculate the error and automatically correct.
3. The use of tower layout structure, shorten the transmission distance and increase production efficiency.
4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
5. The control system man-machine dialogue is simple and easy to operate.
6. With strong environmental protection, colleagues who reduce the labor intensity of their staff effectively improve the work environment in the working area.

Model XC1200 XC2000 XC3000 XC4500 XC6000
capacity(t/h) 10-20 20-40 40-60 60-80 80-120
main machine FJD1200 FJD2000 FJD3000 FJD6000 FJD4500
power(kW) 30 37 55 75 110
high speed end two-pole (7.5kW),four-pole(5.5kW)(optional) two-pole (7.5kW),four-pole(5.5kW)(optional) two-pole (7.5kW),four-pole(5.5kW)(optional) two-pole (7.5kW),four-pole(5.5kW)(optional) two-pole (7.5kW),four-pole(5.5kW)(optional)
volume fraction of mixer 70% 70% 70% 70% 70%
aggregate size (mm) 0~4.75 0~4.75 0~4.75 0~4.75 0~4.75
aggregate scale(kg) (200~1300)±1% (200~2200)±1% (400~3000)±1% (400~3800)±1% (500-5800)±1%
cement scale(kg) (100~700)±1% (100~800)±1% (200~1300)±1% (200~1800)±1% (200~2000)±1%
additive scale(kg) (5~30)±0.5% (10~50)±0.5% (10~200)±0.5% (10~200)±0.5% (10~200)±0.5%

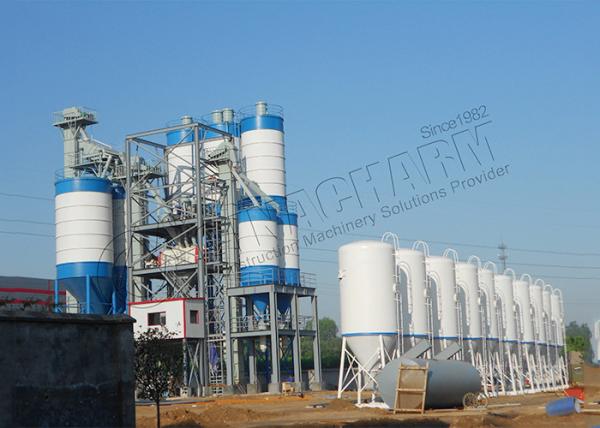

Premixed Batch 80TPH 120TPH Dry Mortar Mixing Plant

Premixed Batch 80TPH 120TPH Dry Mortar Mixing Plant

Dehumidification system

Double return roller, Intelligent detection, Easy maintenance

The finished product temperature out of double return drying roller ≤65℃,and it‘s moisture content <0.5%,so that excessive temperature to make the additive ineffective can be effectively avoided.And comparing with triple return roller, which difficult to repair and easy to be scrapped, double return drying roller has unique intelligent detection system, easy to operate control interface etc.

Dust removal system

Integrated and intelligent dust removal

Container type integrated dust removal mode mainly uses gravity precipitation and dust-proof bag these two main approaches, which can keep dust emission less than 20mg/Nm3.And this system is intelligent impulse type. Cleaner production can avoid the dust leaking from the roller and dust sticking to the dust-proof bag effectively.

Metering system

Accurate, Stable, Reliable

The unique variable frequency feeding technique makes the measurement results more accurate(±1%-±2%),even can be superior to industry standard. Our metering system has higher quality and lower cost.

Ordinary mortar agitator

New methods, Efficient mixing, Low energy consumption

The new upgrade spiral vane blending method can be applied to unconventional product formula. It can mix different kinds of aggregate, such as fragile components,light aggregate and large size aggregate perfectly. Intelligent automatic lubrication system is very reliable on quality and easy to be maintained.

Intelligent control system

Safe, Reliable, Never stop, Cloud data safe

Dual computer synchronous production management control system make the production line can be unattended. A trouble warning technology patent is applied to this system. Beyond that, it has achieved remote monitoring, cloud data collection and diagnosis, intelligent fault diagnosis, product quality online inspection and report classification query.

Premixed Batch 80TPH 120TPH Dry Mortar Mixing Plant
