Specifications
Place of Origin :
China
Brand Name :
GET Camping | GET VEHICLES
Type :
other parts
Material :
NON-FERRO FRP Insulation Composite Sandwich Panels
Camper Design Code :
Square Truck Camper Shell-Base Shell
Shell Main materials: :
Light NON-FERRO FRP Insulation Composite Sandwich Panels R>12
Super Structure: :
Light & Strong NON-FERRO Frameless Self-Support Structure K<0.295
Shipment Width, CBU/FlatPacked: :
7.4 ' (2250mm)/ 1000~3000mm
Shipment Height, CBU/FlatPacked: :
8.0 ' (2450mm )/1000~3000mm
Wall Thickness: :
Customize avaliable 20~120mm Advise :40,50,60,80mm
Wall Skin Material: :
Alu. 1mm/ FRP : Glass fibre Reinforced Polyester.1.5~2.5mm
Thermo Material : :
XPS /PUR/PIR /PET 40-45kg/cbm
Embedded Frame :
Available & Customize for Side Awing,Roof Rail,Rear Spare Tire etc.
Application: :
Temperature from -50~+60 oC for RV, Motorhomes, Truck Camper
Price :
$11,500.00 - $16,800.00/units
Description
Product Overview

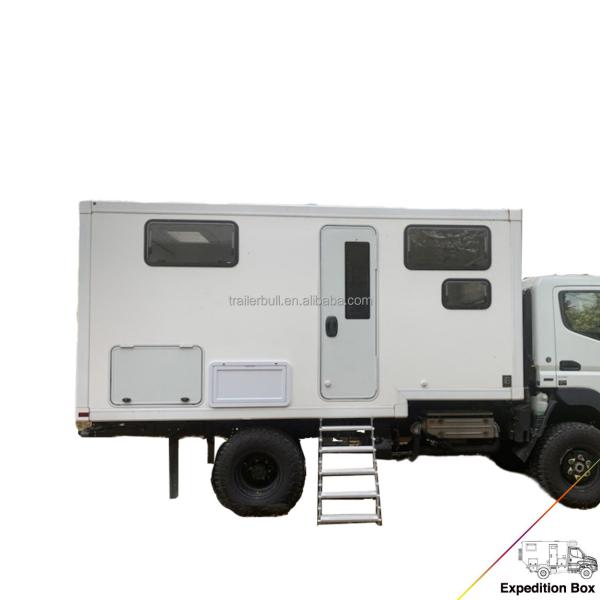

Rectangle Box -Base Box
FRP motorhome Truck Camper Shells for DIY Overland Expedition Trucks

GET Industry Rectangle Box provides an excellent platform for an expedition vehicle. Wh for a compact RV, a pick-up , a camping or an off-road expedition vehicle. 1. We supply the Rectangle Box up to a cabin length of 14.8 m ( Caravan Trailers) , in a variety of wall thicknesses (from 30mm to 125mm) and FRP or Steel ( Aluminum, PPGL) surfaces. 2. The Rectangle Box is offered as an FRP or aluminum composite box and is available either fully assembled or as a self-build kit ( Flat-packed). 3. A steel frame and/or empty pipes and cable ducts can be integrated into the walls and floor during the vacuum pressing process. 4. An optional double floor for installing water tanks, batteries, and different floor heating solutions is available. This will optimize weight distribution and improve frost resistance. 5. A full range of doors, windows, hatches and skylights is available at prices tailored to your requirements.
Features At a Glance
1. Light net Weight : 40% lighter than Metal
2. Better insulation: K value < 0.295 W/㎡ ℃
3. High in strength :
* ANTI-PRESSURE:>180MPa
* ANTI-CURVE: >220MPa
* ANTI-CURVE: >220MPa
CUT STRENGTH: 24.6MPa
4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
5. Easy assembly and repair at site ,3 work 4 hours for one box.
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Right elevation
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Interior elevation
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Amount Truck elevation
Customize & Order Measurements Request
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition

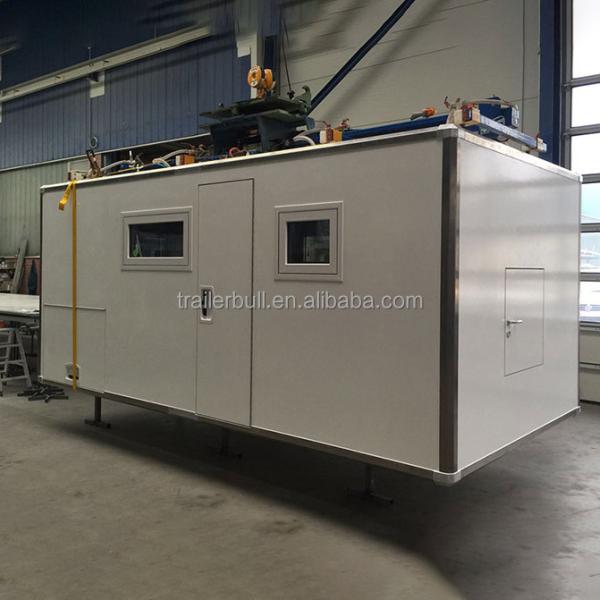

Box Installation Process
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Your Benefits
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Windows Side Elevation
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Tail Elevation
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Door Side Elevation
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Windows Side Elevation
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Tail Elevation
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
Door Side Elevation
Brief Instruction
GET CAMPING | GET VEHICLES TRUCK CAMPERS
GETC.6EXP. LIGHT AND STRONGER MODULAR BOX BY GETC (GET CAMPING) GETC engineered expedition box types are available to accommodate your ideas about Expedition Vehicles. Though the basic needs of globetrotters are much the same, their demands on the vehicle itself differ lone traveler, twosome, family, class of driving license, destination, infrastructure, terrain, duration of the journey … All these criteria ultimately determine the optimum vehicle and the suitable chassis. GETC.6EXP can translates these criteria into 3 Expedition box models geared to these different requirements thanks to our durable GRP Sandwich panel composite technology offers top performing strength. GETC With different wall panels (FRP-Pie Modular Panel, FRP-Plast Sandwich Panel) to meet all the popular chassis and requirements in the world and already have proven themselves on the actual journeys of many satisfied cust.
Customizable Square FRP Motorhome Truck Camper Shell Perfect for Overland Expedition
FAQ
Q '-What’s the material of your Truck Camper body?
A.- We can produce FRP (Fiberglass Reinforced Plastic), PPGI steel and Aluminum composite with XPS/PU insulation Sandwich panels for the truck camper box. The Core Material can be PU, XPS.

Q '- If want the price, what should offer us the information?
A.-You need offer us the material, size (LxWxH and the thickness of the panel) and quantity of the truck body as the basic
information. The sketch or the design drawing is much appreciated.

Q '-Can you pre-cut openings for windows and doors?
A.-We can offer this service with cost as we have embedded strengthen parts inside, but that will be confirmed before producing. your own Openings can easily be cut with a jigsaw and plastic rated blade, but the embedded strengthen parts cannot make. So if it will work in really bad expedition, you'd better let us pre-cut openings for windows and doors.


Q '-Can you do departure angles?
A.-Yes, we have two sizes of the box shape, one is the standard square shape, the other is the departure angle design. Please mark the desired angle (including dimensions) in the quoting template if you need.

Q '-Can you design subframes?
A.-We have the service of this, but you need supply the full chassis layout to us in advance.

Q '-Can I use different windows and doors than what’s listed on your specification?
A.-Yes. However, we highly recommend our windows and doors as they work in perfect balance with our camper bodies.

Q '-Can I order a camper body with an alcove?
A.-Yes. Please ask us for our alcove quoting template.

Q '–What’s included in the shipment?
A.-1. CKD type with All panels cut to size (other than departure angle), 2. CBU type with assembled box per your requirements.

Q '–Can you help with the interior layout?
A'–No. We are solely a camper body supplier, not a full-scale outfitter/design office.
