52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
52 ft
Max Payload :
40T
Place of Origin :
China
Brand Name :
GET VEHICLES | TRAILERBULL
Trailer type :
Flatbed Semi Trailer
Special design :
Double Platform for more cargos loading
Loading capacity :
40T/60T/80T
Chassis :
Heavy Duty Type
Axle :
Drum/Disc FUWA BPW Optional
Suspension :
Mechanical / Air Suspension Optional
Brake System :
Dual circuit electro-pneumatic WABCO brand brake Optional : ABS ,EBS
Landing Gear :
JOST 25T Linkage Type Double Speed
Tyre :
11.00R22.5 , Optional: 11.00R20,12.00R22.5 etc
Condition :
Brand-new
Packaging Details :
rol-rol, general cargo vessels
Port :
QINGDAO,CHINA
Supply Ability :
200 Unit/Units per Month
MOQ :
3 units
Price :
$12,000.00 - $20,000.00/units
Description
Brief Instruction

Title goes here.

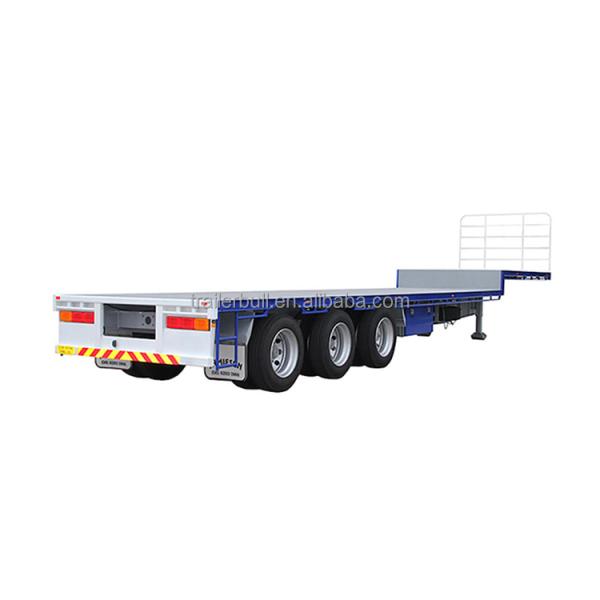

This Flatbed semi trailer is designed with two platform , the large one with lower loading clearance for transporting general cargos and mixed cargos have the different height packages, and also the containers equiped with Twist locks .
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
Product Paramenters
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
16m Double Deck Flatbed Truck Semi Trailer for General Cargos and pipes Transport
1. MODEL:
GET.9TJZP.GDB.3/16
This Flatbed semi trailer is designed with two platform , the large one with lower loading clearance for transporting general cargos and mixed cargos have the different height packages, and also the containers equiped with Twist locks .

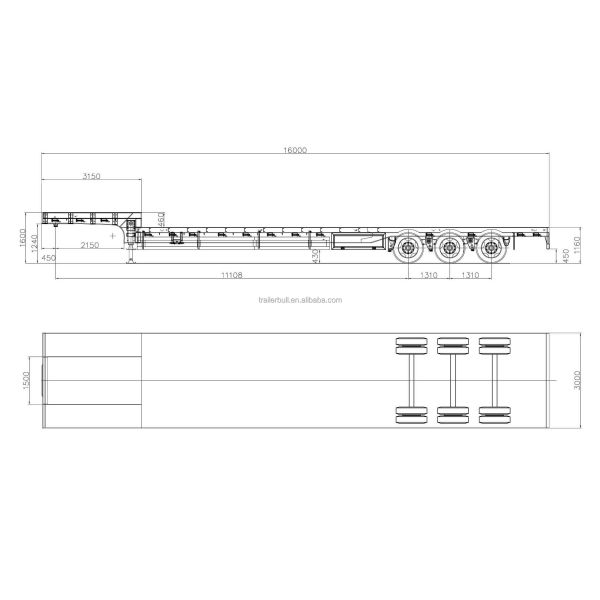

2. GENERAL PARAMETERS
Overall Length
52.49 ft
16,000 mm
Overall Width
9.84 ft
3,000 mm
Overall Height
5.25 ft
1,600 mm
Fifth Wheel Height
4.07 ft
1,240 mm
Kingpin Location
1.48 ft
450 mm
From the rear face of the front bolster
Landing Gear Location
7.05 ft
2,150 mm
From the kingpin center
Axle Spread
4.3 ft
1,310 mm
Tandem Location
36.44 ft
11,108 mm
From Kingpin to Front Suspension Hanger
Tare Weight
19,850 Ibm
9,000. kg
Capacity
88,190 Ibm
40,000. kg
G.V.W
108,030 Ibm
49,000. kg
Trailer Main beam
Deep: 450 mm (17.7")
Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam (Q345)
Flatbed Trailer Floor
1/8" (3mm) Thickness ASTM A572 grade 50 Checked Steel Plate
Options: 1/5" ( 5mm)
Side Removable Pillars
12 set Side Removeable Pillars (100*100*1000mm) for side cargo hold, like the pipes and Steel Bar
Kingpin Upper coupler
1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard
Flatbed Front Bolster
ASTM A572 grade 50 steel U form channel with 7'' wide x 6'' high x 5/16 thick open section, 3/8'' top plate
Rear Bolster
ASTM A572 grade 50 steel U form channel with 7'' wide x 7'' high x 5/16 thick open section, 3/8'' top plate
Rear Bumper
100x100mm (4” x 4” ) square tube step with taper “H” section vertical member
Bar is welded to uprights and main beam.
Twist lock
8 Sets
1x40ft Container and 2x20ft Container
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation
4.TRAILER CHASSIS RUNNING GEAR
Landing gear
Jost Or CIMC Brand 28T two speed telescopic manual landing gear
Crank handle is located on the driver’s side of the chassis.
Trailer Suspension
Mechanical tandem suspension with 3-leaf springs.
Options: Air Spring Suspension , Bogie Suspension
Axles
150mm (6") Square axles with 13T/15T/16T/20T capacity, 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options)
Option : Disc Type
Manufacturer: FUWA ,Options: BPW,SAF
Wheels
steel disc wheel, 10 holes ISO, ; Option: Aluminum alloy rim
Tires
Tubeless Tires , 11.00R22.5 (dual Tire),
Options : 12.00R22.5 (dual Tire),12.00R20 (dual Tire),385/65R22.5 ( super Single Tire ),425/65R22.5( Super Single Tire) ,
Manufactuter: Double Coin, Triangle, Michelin, Firestone
Brake System
Dual line pneumatic brake, SAE hose and connector, WABCO relay emergency valve, OPTIONS: ABS brake system
T30/30 spring brake chambers, T30 brake chambers
3/8” blue air tube for control and 3/8” red for supply, 40L air tanks
Electrical
OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards.
Receptacle::7 way socket SAE standard, China
Wiring: Electric cable protected by PVC conduit on main frame
Painting
Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can
form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of
the object to form a coating film
MISC
GET standard marking, document holder, conspicuity tape, Steel or black rubber mud flaps
Option
Hubodometer, PSI tire inflation system
Manufacturing Technique
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation

CUSTOMIZED DESIGN

Based on full understanding and analysis about transportation environment of various regions, refer to the millions of trailers’
producing experience and customer’s private condition, we design all the trailers privately to different customers..
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation

TBEST STEEL CONSTRUCTION

Material choose the High strength low alloy steel with 350 mpa yield strength is used for welded I-beam and 235 mpa in other
fabricated parts and the original ALCOA aluminum for the tanks and dry logistic box.
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation

AXLE SYSTEM

High quality axle from world brand of BPW, SAF TO China Famous brand FUWA, L1 with strong bearing capacity from 9T to 20T and ABS options to fit full demand of requirements.
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation

SUSPENSION SYSTEM

High quality suspension from world brand of BPW, SAF TO China Famous brand FUWA, L1, from Leaf-spring plate type, bogie type to Air-Spring type and rubber type to fit different requirements of the cargo delivery condition
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation

TIRES AND RIMS

High quality tires from world brand of MICHELIN, BRIDGESTONE, PIRELLI to China Brand DOUBLE COIN, TRI-ANGLE, Coupled with RIMS
from STEEL to ALUMINUM.
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation

SAFETY CONTROL SYSTEM

World brand brake system WABCO Valves with ABS or EBS to keep the trailers under control at any cases.
