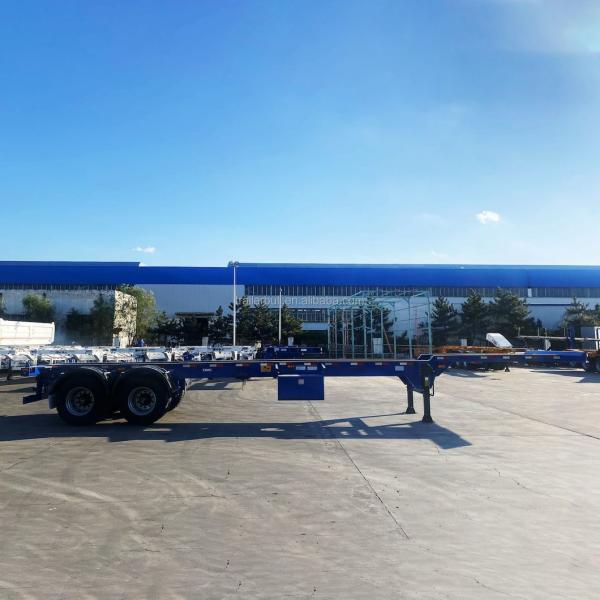

Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Specifications
Model NO. :
GET. 9TZJ. MS. SKD
Wheel Base :
8000-9000mm
Tread :
1820mm
Grade :
Light Duty
Types of Suspension Systems :
Leaf Spring Suspension
Shape :
Skeleton
Axle Number :
2
Tire Number :
8
Self-dumping :
Not Self-dumping
ABS Anti-lock Braking System :
No ABS Anti-lock Braking System
Material :
Steel
Condition :
New
Kingpin :
Jost 2.0 / 3.5 Inch
Suitable Market :
America and Latin America and Australia
Use :
Truck Trailer
Size :
12489X2480X1460 (mm)
Landing Gear :
Jost Dual-Speed Landing Gear
Shipment :
SKD , CKD Type with Container Shipment
Axles as Optional :
Fuwa 13t X 2 PCS, Option: BPW
Container Position :
40′ Tunnel Container
Product Name :
Container Chassis Steel Structure
Length :
40FT ISO Standard
Suspension System as Optional :
Leaf Spring Mechanical Standard
Max Payload :
35t
Main Beam :
T700/Q345 Steel
Transport Package :
9 Units @ 1X40′hc /45′hc
Trademark :
GET VEHICLES
Origin :
China
Supply Ability :
200 Unit/Units Per Month
Customization :
Available
Type :
Semi-Trailer
Load Capacity :
30T
Description
Brief Instruction
GET container chassis offers you the perfect solution when your top priority is the efficient transport of 20' and 40' containers positioned flush with the rear of the trailer. It carries 20' containers positioned flush with the rear of the trailer as well as 2 x 20' containers and 40' tunnel containers. * Its rear extension is a user-friendly and time-saving solution and does not require adjustment for 40' containers without a tunnel.
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Main Parameters
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Type 40FT Gooseneck Container Chassis with Two Axles
Model GET.9TJZ.MS.SKD
Parameter Overall Dimension (mm) Length×width×height:12,453x2,470xH1 (The height will be adjusted according to the tractor specification
Fifth Wheel Height (mm) The height will be adjusted according to the tractor specification
Tare Weight (kg) 3,500 kg(±5%)
Payload (kg) 35,000 kg(±5%)
Gross weight (kg) 38,500 kg(±5%)
Configuration Tire Type: 11R22.5, equip 8pcs per chassis, China Brand, optioned by factory
Rim Steel Type: 8.25-22.5, equip 8pcs per chassis
Axle 13T, 2 sets, without ABS
Suspension 2-axles enforced mechanical suspension
Landing Gear JOST 25T, Lifting capacity 25T and static load 60T
Kingpin JOST 2", exchanged
Brake System 30/30 type on rear axle, WABCO brake valve
ABS Without
Electrical System 24V, LED lamp
Spare Tire Carrier Equip 2 sets per chassis
Tool Box Optional
Lock 4pcs
Paint Primer + top coat, polyurethane paint
Color AS per required.
Others
Note: All the details not mentioned above should comply with Chinese regulations.
GET VEHICLES does not take any responsibility on the trailer's registration.
Your Benefits
Focused: mountings for ISO 40' tunnel containers
Extendible* : optional locking mechanisms for 45' containers without tunnel, and 20ft container Lock System. Also for loading into Container to save the Sea Freight .
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
Trailer Chassis
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis

Standard chassis

container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis

Rear extension*

The rear extension Optional can be pneumatically extended to the required container position for 45ft or more. and also for container loading shipment.
Running Gear
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis

Air Suspension Optionals

Outstanding driving characteristics, thanks to BPW /SAF air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis

Lifting axle Optional

The lifting axle improve efficiency, driving safety and traction off-road.
Locking Mechanisms
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis

General

Faster container swaps through efficient locking mechanisms. Greater convenience with the best material quality, simple handling, minimised risk of errors and two ISO locking systems.
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis

TWIST LOCKs Optional

Adjustable TWIST-LOCK locking in the middle 20ft position for 20ft contianer delivery.
Related Trailers
Knocked Down SKD CKD 40FT Container Chassis for Intermodal Container Chassis
FAQ
What is a Skeleton Semi Trailers
Skeleton Semi-trailers belongs to the Terminal Logistic Equipment.Can be made for 20 feet and 40 feet or 45 feet or other special dimension container's transportation. From 2 axles to 4 axles or more , with capacity from 20T to 80T to fit all the bad working conditions in all over the world. Skeleton can also work tog with the inland cargo box to be an Dry Logistics box semi-trailer, with a freezer to be a Cold Chain Logistics Refrigerated semi-trailer for fresh or frozen cargos, with an Tanker to be a Energy LogisticsTanker Monoblock Tankerer semi-trailer,etc. Totally , Skeleton Semi-trailer is a very friendly trailer friends , can make friends with most of the cargo Holders.

Additional information for TruckTrailer

1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of the container trailer will be executed according to your needs. 2.We also do OEM and ODM.If you are interested in understanding our abilities and the container trailer, we are always welcome. 3.The final price of all container trailer is determined by the container trailer configuration you choose.Therefore, if you are interested in purchasing products, please contact us

Application for Truck Trailer

1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of containers,this series container semi trailer divides flatbed type. 2. The capacity is for 50tons , we can manufacture it according to your needs. 3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences. 4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc. 5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable. 6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges. CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
