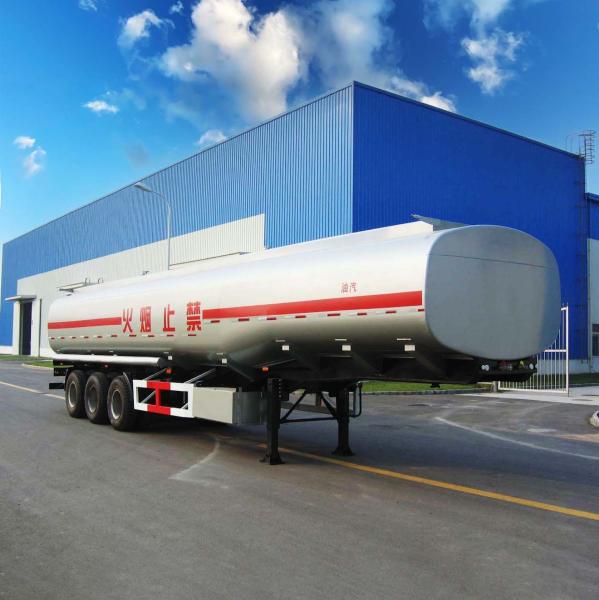

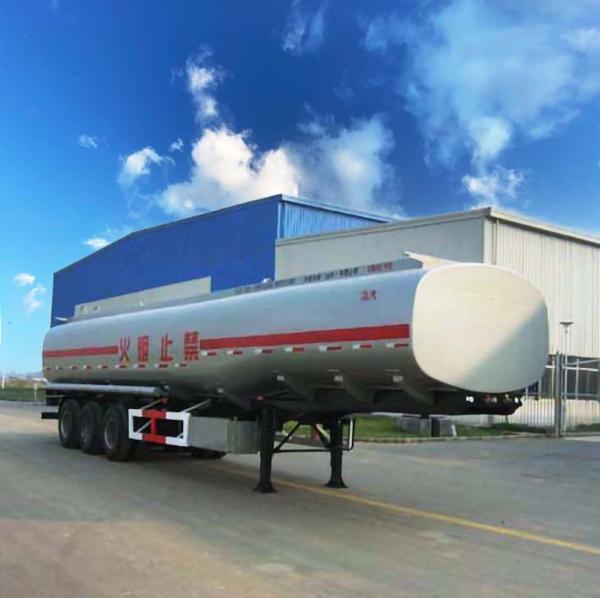

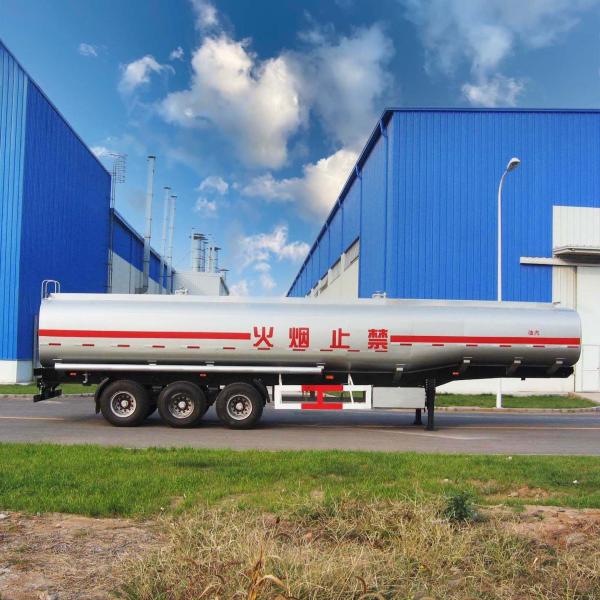

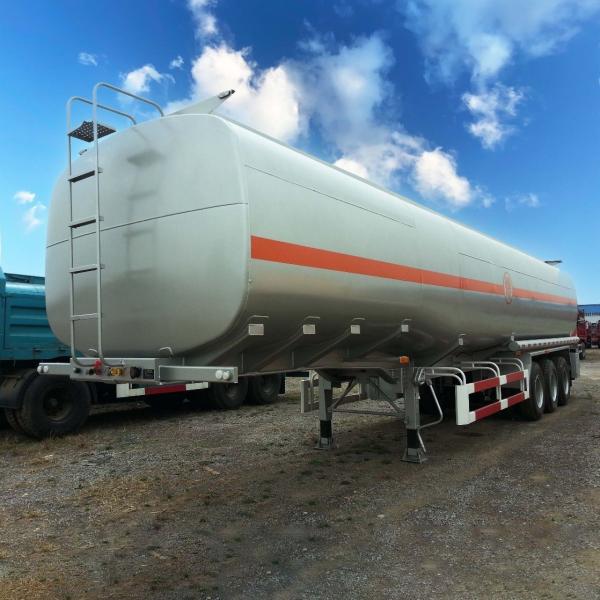

25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
Specifications
Model NO. :
6254GYY
Wheel Base :
1310+2640+1310
Tread :
1820mm
Grade :
Heavy Duty
Types of Suspension Systems :
Air Suspension
Shape :
Square-Round
Axle Number :
4
Tire Number :
16
Self-dumping :
Self-dumping
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Material :
Steel
Condition :
New
Tank Series :
Heavy Duty 4 Axles Carbon Steel Tank Semi Trailer
Customized Tank Volume :
Max. 50 000L Are All Available
Applicable Liquid Medium :
Fuel , Oil , Diesel, Jet, Gasoline, Water
Tank Discharge System :
Pneumatic Bottom API Adaptor Loading Valve System
Tank Safety Valve :
Emergency Shut Foot Valves ,Vapor Adaptor Valve
Truck Trailer Axle :
Fuwa , BPW as Optional
Trailer Suspension :
Mechanical Standard,Optional Air-Bag Spring
Brake System :
Wabco with ABS,Dual Air Brake System, Optional :E
Surface Paint :
Clean SA-2.5 Grade with Marine Paint of Not Less
Transport Package :
Wax Paint
Specification :
10230x2500x3400
Trademark :
GET ENERGY GET VEHICLES
Origin :
China
HS Code :
8716311000
Supply Ability :
100 Unit/Units Per Month
Customization :
Available
Type :
Semi-Trailer
Load Capacity :
20t
Description
Product Overview

What is a Tank Truck
A tank truck or tanker truck (United States usage) or tanker (United Kingdom usage), is a motor vehicle designed to carry
liquefied loads, dry bulk cargo or gases on roads. The largest such vehicles are similar to railroad tank cars which are also
designed to carry liquefied loads. Many variants exist due to the wide variety of liquids that can be transported. Tank trucks tend to be large; they may be insulated or non-insulated; pressurized or non-pressurized; and designed for single ormultiple loads (often by means of internal divisions in their tank). Some are semi-trailer trucks. They are difficult to drive due to their high center of gravity.

Why Choose Our Carbon Steel with 3 axles
Carbon Steel Tank With 3 Axles Max. Volume 50000 Liter Min. Weight 9200 Kg European ADR Standard Carbon Steel is the favorite material of Chinese Tank-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. We provides high-volume and small-size carbon steel fuel Tank semi-traile with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry. Tank series, Liquid foods, Water, Fuel, LPG, CNG, CO2, grain, powder cement, chemical liquids etc. Tank Size: Round Shape, Square Round shap,Ellipse Shap etc. Able to be transportation in container at CKD and SKD type, and we supply the technology support for assembling. Effective volume: 3000L----80000L
FEATURES AT A GLANCE
1. Low Investment
2. High Steel Material
3. Easy & Quick Repair
4. Low maintenance costs
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid 25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid 25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
Front elevation Valves Box elevation Tail elevation
PRODUCT SPECIFICATIONS
25000L Carbon Steel Draw Bar Tank Trailer with 4 axles for Fuel or Diesel Liquid 6254GYY
Tank Semi-Trailer
overall outside dimension(mm)		 Length 10230
Width 2500
Height (unload) 3400
Tank Semi-Trailer
Outside dimension of Tank body(mm)		 7500
Tank Body Capacity(L) 25000
Tank Trailer GVW(kg) 27000
Tank Trailer vehicle total weight(kg) 7000
Tank Trailer rated payload(kg) 20000
Tank Trailer Wheel base(mm) 1310+2640+1310
Tread(mm) Tread at front
Tread at rear 1840
Front/Rear Overhang(mm) /1910
Tank Trailer
Approach/Departure angle(°)		 /18
Rated payload of Draw Bar Eyes(KN) 250
Axle Front BPW 12T*2
Rear BPW 12T*2
Tires 11R22.5*16
Remark
The Hook for the trucks is not include
OPTIONS :
1. FUEL/WATER PUMP FOR PRIME TRACTOR
2. INSULATED COVER TO BE AN INSULATED Tank
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid 25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
Tank Safety Valves Manhole Cover Aluminum Material Size : φ460, 560,580 witih P/V vent Valves and Safety Valves
Emergency Foot Valves Aluminum Alloy Material size : 2" (80) , 3" (100) ,Pneumatic Control
API Adaptor Valves Aluminum Alloy Material size : 3' (100) API Adaptor Valves
Vent Recovry System: Aluminum Material : Vapor Vent Valve,Combing Vent Valve,Vapor Adaptor Valve,Vapor Recovery Joint
Pneumatic Control System
Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel.
Tool Box: Equipped one set.
Painting: Color by customer's requirement.
Marking: By customer's requirement.
Options: Oil Tank: 300L carbon steel.
PRODUCT CONFIGURATION

Closed Loading System

There are many significant advantages offered by Closed Loading System, such as fire prevention, spill prevention, higher operation safety, vapor recovery, avoidance of product contamination, faster loading and less expensive loading islands. It has
become a standard required by the government.

Stability System

The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes
automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.

Operation Monitoring System

Operation-monitoring system detects the whole process about tank loading, transportation and tank unloading. All real-time information about manholes, cut off valves, API connections, pipes and bottom valves will be detected and saved.
SALES AND SERVICE NETWORK
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
Successful Project
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
Project in SouthEast Asia
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
Project In Latin America
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
Project in Africa
Related Products
25000L Carbon Steel Draw Bar Tank Trailer with 4 Axles for Fuel or Diesel Liquid
FAQ
Q1Why choose carbon steel tank semi-trailer?
A1 Carbon Steel is the favorite material of Chinese tanker-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. G.E.T Vehicles provides high-volume and small-size carbon steel fuel tank semi-trailer with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.
Q2what is necessary for a Tank Semi trailer Inquiry ?
A2 a. The Volume of the Tank of your demands b. The Material of the tank you want ? C. The loading Liquid Medium for the tank ? For Example: 2 units Carbon Steel 42000L for Fuel with 4 compartments.
Q3How to ship the tank Semi trailers ?
A3 We can supply the tank in two types, one is CBU ( complete Built up ) the other is SKD ( Semi -Knocked Down )and CKD ( complete Knocked Down). a. CBU type can ship with Rol-Rol and General Cargo Vessels and The flatbed Container . b.CKD& SKD Type can ship with Container to save the Freight, and we can aslo supply the assembly Technology.
