42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
Specifications
Model NO. :
GET9423GYY. Economic
Tread :
2240mm
Grade :
Light Duty
Types of Suspension Systems :
Air Suspension
Self-dumping :
Self-dumping
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Material :
Steel
Condition :
New
Tank Series :
3 Axles Carbon Steel Tank Semi-Trailer
Tanker Volume :
42,000L
Size :
12500X2500X3700
Tank Discharge System :
Pneumatic Bottom API Adaptor Loading Valve System
Tanker Application :
Fuel , Oil , Diesel, Jet, Gasoline, Water,Bitumen
Truck Trailer Axle :
Square Drum Axle Brand Fuwa / BPW
Trailer Brake System :
Dual Air Brake System, Wabco/Haldex Relay Valve
Tanker Valves :
Emergency Shut Foot Valve ,
Trailer Suspension :
Mechanical Tandem / Air Spring / Bogie
Trailer Surface :
Clean SA-2.5 Grade with Marine Paint
Usage :
Urban Close Distance Transportation
Transport Package :
Wax Paint
Trademark :
GET ENERGY GET VEHICLES
Origin :
China
HS Code :
8716311000
Supply Ability :
100 Unit/Units Per Month
Customization :
Available
Type :
Semi-Trailer
Load Capacity :
25T
Description
Product Overview

What is a Tank Truck
A tank truck or tanker truck (United States usage) or tanker (United Kingdom usage), is a motor vehicle designed to carry
liquefied loads, dry bulk cargo or gases on roads. The largest such vehicles are similar to railroad tank cars which are also
designed to carry liquefied loads. Many variants exist due to the wide variety of liquids that can be transported. Tank trucks tend to be large; they may be insulated or non-insulated; pressurized or non-pressurized; and designed for single ormultiple loads (often by means of internal divisions in their tank). Some are semi-trailer trucks. They are difficult to drive due to their high center of gravity.

Why Choose Our Carbon Steel with 3 axles
Carbon Steel Tank With 3 Axles Max. Volume 50000 Liter Min. Weight 9200 Kg European ADR Standard Carbon Steel is the favorite material of Chinese Tank-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. We provides high-volume and small-size carbon steel fuel Tank semi-traile with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry. Tank series, Liquid foods, Water, Fuel, LPG, CNG, CO2, grain, powder cement, chemical liquids etc. Tank Size: Round Shape, Square Round shap,Ellipse Shap etc. Able to be transportation in container at CKD and SKD type, and we supply the technology support for assembling. Effective volume: 3000L----80000L
FEATURES AT A GLANCE
1. Low Investment
2. High Steel Material
3. Easy & Quick Repair
4. Low maintenance costs
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation 42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation 42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation

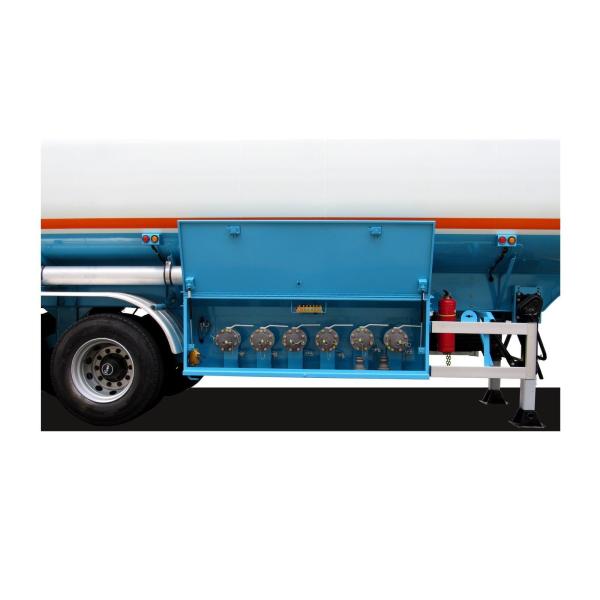

Front elevation Valves Box elevation Tail elevation
PRODUCT SPECIFICATIONS
42000L 28T Carbon Steel Fuel Or Refuel Tank Semi Trailer with 4 Compartments And Super Tire for Tanzania
Items GET9423GYY.Economic
Overall Exterior dimension(mm) Length 12500
Width 2500
Height (unload) 3700
Exterior dimension of Tank body(mm) 12150
Tank Capacity(L) 42000
GVW(kg) 38660
Dead weight(kg) 10660
Rated payload(kg) 28000
Wheel base(mm) 6660+1310+1310
Tread(mm) Tread at front
Tread at rear 1840
Front/Rear Overhang(mm) /2000
Approach/Departure angle(°) /18
Rated payload of 5th wheel 15670
Trailer Running System Trailer Axle GET SQUARE AXLE 12T-2040*3
Tires 385/65R22.5*6pcs
Suspension Tandem Steel Leaf Spring Mechinical Suspension
Brake System Dual air brake system, Wabco relay emergency valve with ABS OPTIONS: EBS
Kingpin: 3.5" /2" JOST.
Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T.
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
OPTIONS :
1. FUEL/WATER PUMP FOR PRIME TRACTOR
2. INSULATED COVER TO BE AN INSULATED Tank
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation 42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
Tank Safety Valves Manhole Cover Aluminum Material Size : φ460, 560,580 witih P/V vent Valves and Safety Valves
Emergency Foot Valves Aluminum Alloy Material size : 2" (80) , 3" (100) ,Pneumatic Control
API Adaptor Valves Aluminum Alloy Material size : 3' (100) API Adaptor Valves
Vent Recovry System: Aluminum Material : Vapor Vent Valve,Combing Vent Valve,Vapor Adaptor Valve,Vapor Recovery Joint
Pneumatic Control System
Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel.
Tool Box: Equipped one set.
Painting: Color by customer's requirement.
Marking: By customer's requirement.
Options: Oil Tank: 300L carbon steel.
PRODUCT CONFIGURATION

Closed Loading System

There are many significant advantages offered by Closed Loading System, such as fire prevention, spill prevention, higher operation safety, vapor recovery, avoidance of product contamination, faster loading and less expensive loading islands. It has
become a standard required by the government.

Stability System

The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes
automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.

Operation Monitoring System

Operation-monitoring system detects the whole process about tank loading, transportation and tank unloading. All real-time information about manholes, cut off valves, API connections, pipes and bottom valves will be detected and saved.
SALES AND SERVICE NETWORK
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
Successful Project
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
Project in SouthEast Asia
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
Project In Latin America
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
Project in Africa
Related Products
42000L 4 Compartments Super Single Tire Fuel Tank Truck Semi Trailer with Fuwa Axle 13t and Mechinical Suspension for Tanzania Road Limitation
FAQ
Q1Why choose carbon steel tank semi-trailer?
A1 Carbon Steel is the favorite material of Chinese tanker-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. G.E.T Vehicles provides high-volume and small-size carbon steel fuel tank semi-trailer with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.
Q2what is necessary for a Tank Semi trailer Inquiry ?
A2 a. The Volume of the Tank of your demands b. The Material of the tank you want ? C. The loading Liquid Medium for the tank ? For Example: 2 units Carbon Steel 42000L for Fuel with 4 compartments.
Q3How to ship the tank Semi trailers ?
A3 We can supply the tank in two types, one is CBU ( complete Built up ) the other is SKD ( Semi -Knocked Down )and CKD ( complete Knocked Down). a. CBU type can ship with Rol-Rol and General Cargo Vessels and The flatbed Container . b.CKD& SKD Type can ship with Container to save the Freight, and we can aslo supply the assembly Technology.
