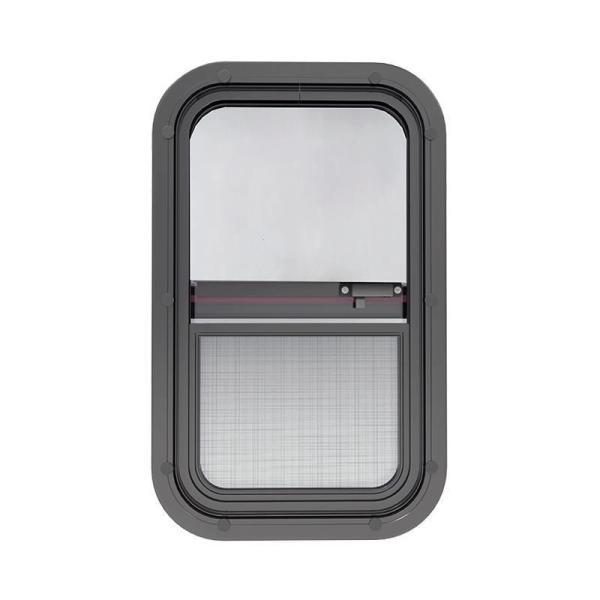

Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
Specifications
Model NO. :
WS25F
Transport Package :
Packed in Case
Trademark :
GET ENERGY GET VEHICLES
Origin :
China
HS Code :
8708299000
Customization :
Available
Type :
Ws25f
Category :
Window
Description

Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY Technical Parameters

Frame Powder coated high quality aluminum alloy.
Frame Color White, black, silver grey,or customizable.
Glass Thickness 4mm, grey single glazing acrylic panel
with UV resistance.
Blind Panel High strength fiberglass mesh, can be removed.
Open Open by Sliding one panel to opposite direction.
Installation suitable for three wall thickness ranges 24-34mm, 34-44mm, 44-54mm.

Specifications

Type
H x W		 Overall
(H+24)x (W+24)		 Cut hole
(H+3)x (W+3)		 Weight
mm mm Kg
GET.WS25F-300x500 324x524 303x503 2.0
GET.WS25F-300x700 324x724 303x703 2.4
GET.WS25F-300x900 324x924 303x903 2.8
GET.WS25F-350x600 374x624 242x603 2.3
GET.WS25F-350x800 374x824 353x803 2.7
GET.WS25F-400x700 424x724 403x703 2.7
GET.WS25F-400x750 424x774 403x753 2.8
GET.WS25F-400x900 424x924 403x903 3.1
GET.WS25F-450x800 474x824 453x803 3.0
GET.WS25F-450x900 474x924 453x903 3.2
GET.WS25F-450x1100 474x1124 453x1103 3.7
GET.WS25F-500x900 524x924 503x903 3.4
GET.WS25F-500x1000 524x1024 503x1003 3.7
GET.WS25F-550x900 574x924 553x903 3.6
GET.WS25F-550x1000 574x1024 553x1003 3.8
GET.WS25F-550x1300 574x1324 553x1303 4.4
GET.WS25F-600x1000 624x1024 603x1003 4.0
GET.WS25F-600x1200 624x1224 603x1203 4.4
GET.WS25F-600x1300 624x1324 603x1303 4.6
GET.WS25F-600x1450 624x1474 603x1453 5.0
Special sizes can be customized after discussing.

Type Description

Self-Propelled/Trailer Ws25f Sliding up and Down Window for RV Truck Camper Motorhomes DIY
WS25F Type
H x W Height from door fitting surface
Width from door fitting surface
L
R		 Left window
Right window
WH/BL/GR White/Black/silver grey

Technical drawing
