Specifications
Model NO. :
GET. RW3.
Transport Package :
Packed in Case
Trademark :
GET ENERGY GET VEHICLES
Origin :
China
HS Code :
8708299000
Customization :
Available
Type :
RW3
Category :
Roof Window
Description

Self Propelled / Trailer RW3 Roof Window For RV Truck Camper Motorhomes DIYSelf Propelled / Trailer RW3 Roof Window For RV Truck Camper Motorhomes DIYSelf Propelled / Trailer RW3 Roof Window For RV Truck Camper Motorhomes DIYFeatures & Main Functions

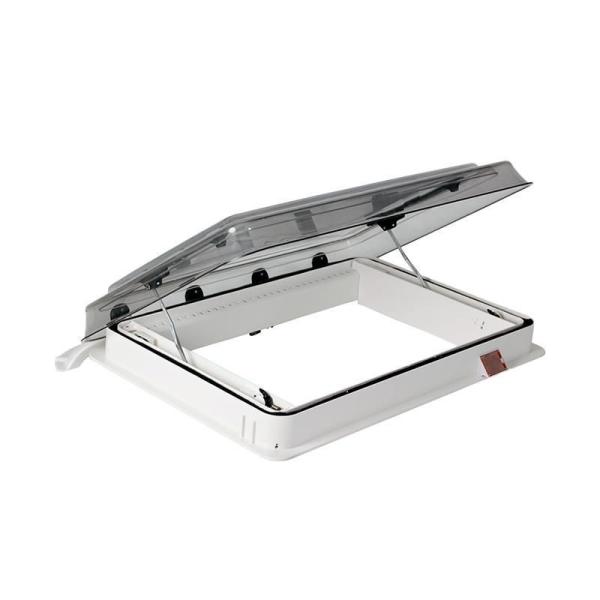

RW3 roofwindow have double acrylic glazing dome, which provide good heat preservation and daylighting. It has a filtering ventilation when the dome closed.
It can be used with crank,electric system.

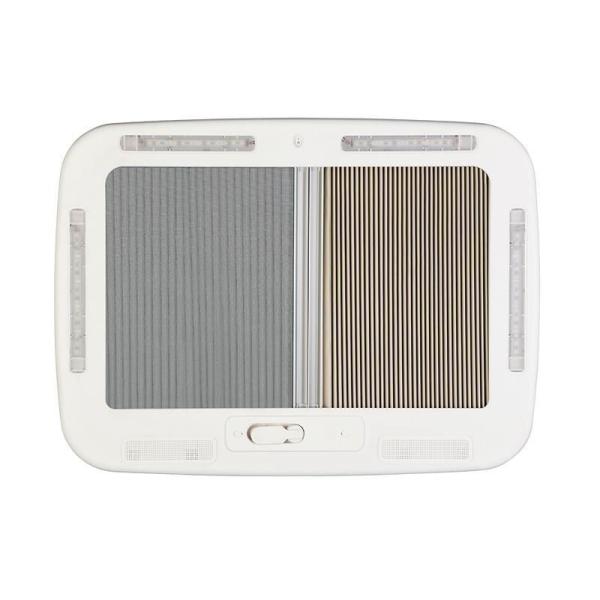

  • With darkening and fly screen (can be adjusted separately)
  • Maximum opening angle is 70° and can stay at any angle.
  • Double acrylic glazing dome (ECE)

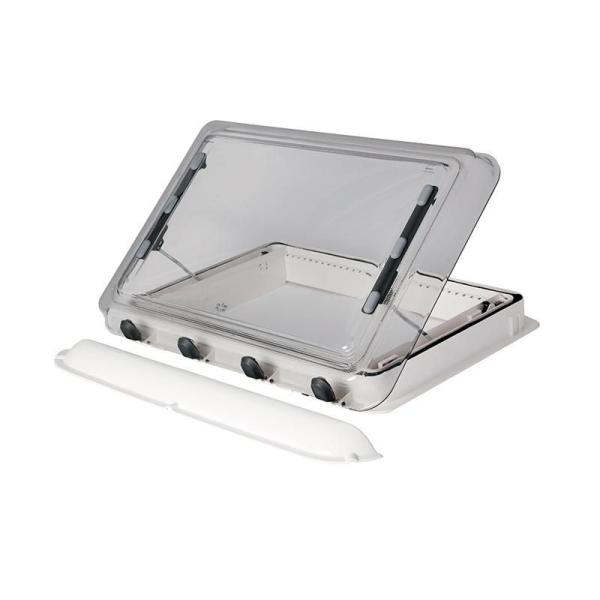

  • Can be greatly reduce the noise made by the wind with a spoiler.

Installation

suitable for wall thickness 25- 50mm or more with particular parts.

Specifications

For motorhome √
For caravan √
Operating mode Crank / Electric
Dome material Double acrylic glazing
Opening angle 0 ≤ Any ≤ 70°
Maximum opening angle 70°
Weight, kg 9.0
Blind Single-pleated
Screen Single-pleated
Forced ventilation (with filtration) √
For roof thickness, mm * 35-70, ≥70
Frame material ASA
Frame color RAL9001
External space requirement, mm 853 x 593
Cut hole, mm 700 x 500
Note
1. *Requires decorative sheets and screws offered by custom.
2. Roof window is equipped with 12V LED warm white light.
3. Manual version is in place, wvhen the buzzer is not allowed to continue to rotate the handle, 3 seconds later the alarm automatically lifted, please press the handle into the slot.

Type description

Self Propelled / Trailer RW3 Roof Window For RV Truck Camper Motorhomes DIY
RW3 Type
H
W		 Height of Mounting surface
Width of Mounting surface
E
M		 Electric
Crank

Fitting Diagram

Self Propelled / Trailer RW3 Roof Window For RV Truck Camper Motorhomes DIY
