American Type Truck Spare Parts Spoke Wheel Axle 12T - 20T High Performance
American Type Truck Spare Parts Spoke Wheel Axle 12T - 20T High Performance
Specifications
Brand Name :
GET
Model Number :
Truck Trailer Axles , Drum Axles, American Type Spoke Wheel Axle 12T-20T
Certification :
ADR,DOT
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 UNITS / MONTH
Delivery Time :
10 WORKING DAYS
Packaging Details :
CASES
Description

Truck Trailer Axles , Drum Axles, American Type Spoke Wheel Axle 12T-20T​

Truck Trailer Axles , Drum Axles, American Type Spoke Wheel Axle 12T-20T

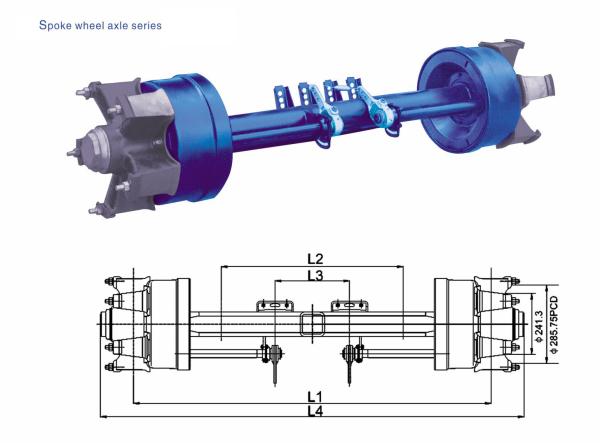

Type of Trailer Spoke Wheel Axle Spoke Wheel Axle
Axle has two different types,the stronger axle and one-piece axle.The former weight is about 5-20kg more than the one-piece axle.
Optional ABS and automatic slack adjuster available.
Spoke Wheel Axle Capacity: 12T–20T
Track of Spoke Wheel Axle 1840MM (size are available)
Brake of Spoke Wheel Axle 420*200MM (size are available)
Spoke Wheel Axle Beam 150*150MM (Square) (size are available)
Spoke Wheel Axle Beam Thickness: 16mm
Hubof Spoke Wheel Axle Both 20",24" are available
Our American type spoke wheel axle is made of high-intensity alloy steel with excellent performance:
1.High over-load capacity. Axle shaft is one-time-formed; unique overall heat treatment, thus it largely enhance the strength and elasticity of the axle and improve the load capacity.
2.Stronger axle head. Axle head is made of farctate steel alloy, which makes it much stronger than one-piece axle.
3.Stable and durable. With our 50 years machinery experience, we make our axles high and very stable quality. Our after-sales sites are much matured, we provide one-year quality guarantee for all our over-sea sales.
4.Customized design. Customized design is available for we own the most powerful technician and development team in China. We can develop new products and modify traditional products according to your requirements.
5.Delivery date assurance. We have a total area of 300 thousand square meters production base to ensure your products be delivered to you in time.
American Type Spoke Wheel Axles Contain in-board axle series,out-board axle series,spoke wheel axle series,car transport trailer axle series and small axle series.
Axle has two different types,the stronger axle and one-piece axle.The former weight is about 5-20kg more than the one-piece axle.

Model 105(km/h) Max. Capacity (kg) "S" Cam Brake Seriesφ x Width (mm) Track (mm) Spring Seat Installation (mm) Axle Beam (mm) Center distance of chamber GM (mm) Studs (mm) Spacer(mm) Total Length (mm) Recommended Wheel
GET 10Y66 10,000 S 420×180 1820 ≥950 〇 127 365 6*3/4“-10 101-20" 2170 6 spoke wheel 8.0-20
GET 10Y56 10,000 S 420×180 1820 ≥950 〇 127 365 5*3/4“-10 101-20" 2170 5 spoke wheel 8.0-20
GET 10K66 10,000 S 420×180 1820 ≥950 []127 365 6*3/4“-10 101-20" 2170 6 spoke wheel 8.0-20
GET 10K56 10,000 S 420×180 1820 ≥950 []127 365 5*3/4“-10 101-20" 2170 5 spoke wheel 8.0-20
GET 11Y66 11,000 S 420×180 1820 ≥950 〇 127 365 6*3/4“-10 101-20" 2170 6 spoke wheel 8.0-20
GET 11Y56 11,000 S 420×180 1820 ≥950 〇 127 365 5*3/4“-10 101-20" 2170 5 spoke wheel 8.0-20
GET 11R66 11,000 S 420×180 1820 ≥950 〇 146 365 6*3/4“-10 101-20" 2170 6 spoke wheel 8.0-20
GET 11R56 11,000 S 420×180 1840 ≥950 〇 146 365 5*3/4“-10 101-20" 2170 5 spoke wheel 8.0-20
GET 12Y66 12,000 S 420×180 1840 ≥950 〇 127 365 6*3/4“-10 101-20" 2170 6 spoke wheel 8.0-20
GET 12Y56 12000 S 420×180 1820 ≥950 〇 127 365 5*3/4“-10 101-20" 2170 5 spoke wheel 8.0-20
GET 13F66 13,000 S 420×180 1840 ≥940 []150 385 6*3/4“-10 101-20" 2190 6 spoke wheel 8.0-20
GET 13F56 13,000 S 420×180 1840 ≥940 []150 385 5*3/4“-10 101-20" 2190 5 spoke wheel 8.0-20
GET 12YN66 12,000 S 420×180Q 1820 ≥950 〇 127 230 6*3/4“-10 101-20" 2170 6 spoke wheel 8.0-20
GET 12YN56 12,000 S 420×180Q 1820 ≥950 〇 127 230 5*3/4“-10 101-20" 2170 5 spoke wheel 8.0-20
