Drum Axles Performance Truck Parts American Type Axles In-Board Axle 8T - 20T
Drum Axles Performance Truck Parts American Type Axles In-Board Axle 8T - 20T
Specifications
Brand Name :
GET
Model Number :
Truck Trailer Axles , Drum Axles, American Type axles In–board Axle 8T-20T
Certification :
ADR,DOT
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 UNITS / MONTH
Delivery Time :
10 WORKING DAYS
Packaging Details :
CASES
Description

Truck Trailer Axles , Drum Axles, American Type axles In–board Axle 8T-20T

Truck Trailer Axles , Drum Axles, American Type axles In–board Axle 8T-20T
　
Type of Trailer Axles In-Board Type axles
Trailer Axles has two different types,the stronger axle and one-piece axle.The former weight is about 5-20kg more than the one-piece axle.
Optional of Trailer Axles: ABS and automatic slack adjuster available.
Trailer Axles Capacity: 8T–20T
Track of Trailer Axles: 1840MM (size are available)
Brake of Trailer Axles: 420*200MM (size are available)
Beam of Trailer Axles: 150*150MM (Square) (size are available)
Beam Thicknessof Trailer Axles: 10MM-25MM
Our American type in–board axle is made of high-intensity alloy steel with excellent performance:
Features of Trailer Axles:
1.Unique one-piece, special heat-treated low-alloy steel axle beam offer more stability greater capacity and lighter weight. It is a world-class technology.
2.Integral P type swage straight spindle or tapered spindle with induction-hardened bearing journals -----provide superior fatigue capability.
3.Spider Camshaft and anchor pin bores are machined with reference to the spindle after the welding operation ---increase stability and braking performance
4.XEM OR Q GP brake kits with heavy duty brake return spring.
5.High performance premium non-asbestos brake linings-----extend service life.
6.Improved seal at camshafts-----protect the brake drums from the grease lubricant more safety
7.New 100% tight fit hub cap with additional O ring-----provide optimum seal performance.
8.Grease lubricant is supplied by SHELL and EXXON MOBIL.
9.Axles meet USA FMVSS-121 requirements and Australian ADR 38.
American Type Axles Contain in-board axle series,out-board axle series,spoke wheel axle series,car transport trailer axle series and small axle series.
Axle has two different types,the stronger axle and one-piece axle.The former weight is about 5-20kg more than the one-piece axle.

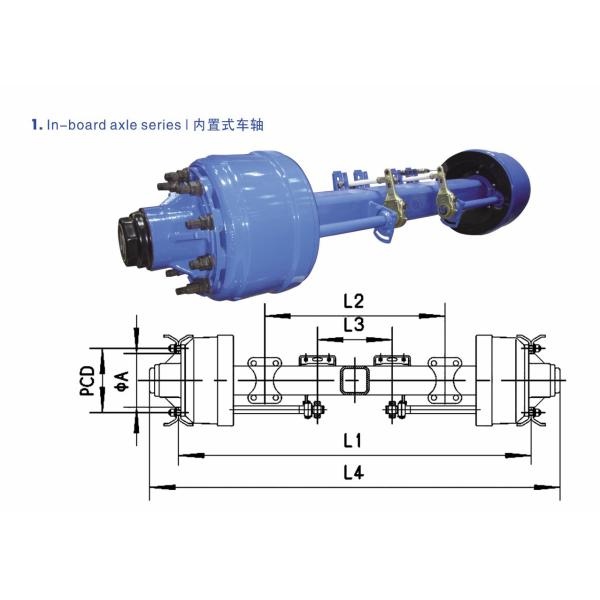

Model 105(km/h) Max. Capacity (kg) "S" Cam Brake Seriesφ x Width (mm) Track TR (mm) Spring Seat Installation LM (mm) Axle Beam (mm) Center distance of chamber GM (mm) Studs (mm) P.C.D. (mm) φ H (mm) Total Length LP (mm) Recommended Wheel
GET08Y11 8,000 S 420×150 1850 ≥1080 〇 127 428 10xM22x1.5 ISO 335 281 ～2145 7.50V-20
GET10F11 10,000 S 420×180 1840 ≥940 []150 385 10xM22x1.5 ISO 335 281 ～2190 7.50V-20
GET11Y10 11,000 S 420×190 1850 ≥1000 〇 127 450 10xM22x1.5 ISO 225 176 ～2155 6.5-15
GET12Y11 12,000 S 420×180 1820 ≥950 〇 127 365 10xM22x1.5 ISO 335 281 ～2170 7.50V-20
GET12K11 12,000 S 420×180 1820 ≥950 〇 127 364 10xM22x1.5 ISO 335 281 ～2170 7.50V-20
GET13F11 13,000 S 420×180 1840 ≥940 []150 385 10xM22x1.5 ISO 335 281 ～2190 7.50V-20
GET14F11 14,000 S 420×220 1840 ≥940 []150 348 10xM22x1.5 ISO 335 281 ～2190 8.0V-20
GET15F11 15000 S 420×180 1840 ≥940 []150 381 10xM22x1.5 ISO 335 281 ～2200 8.0V-20
GET16F11 16,000 S 420×220 1850 ≥940 []150 353 10xM22x1.5 ISO 335 281 ～2210 8.5V-20
GET20F13 20,000 S 420×220 1850 ≥940 []150 353 10xM22x1.5 ISO 335 281 ～2255 8.5V-20
GET13F18 13,000 S 420×180 1840 ≥940 []150 381 8xM20x1.5 JIS 285 221 ～2155 7.5V-20
