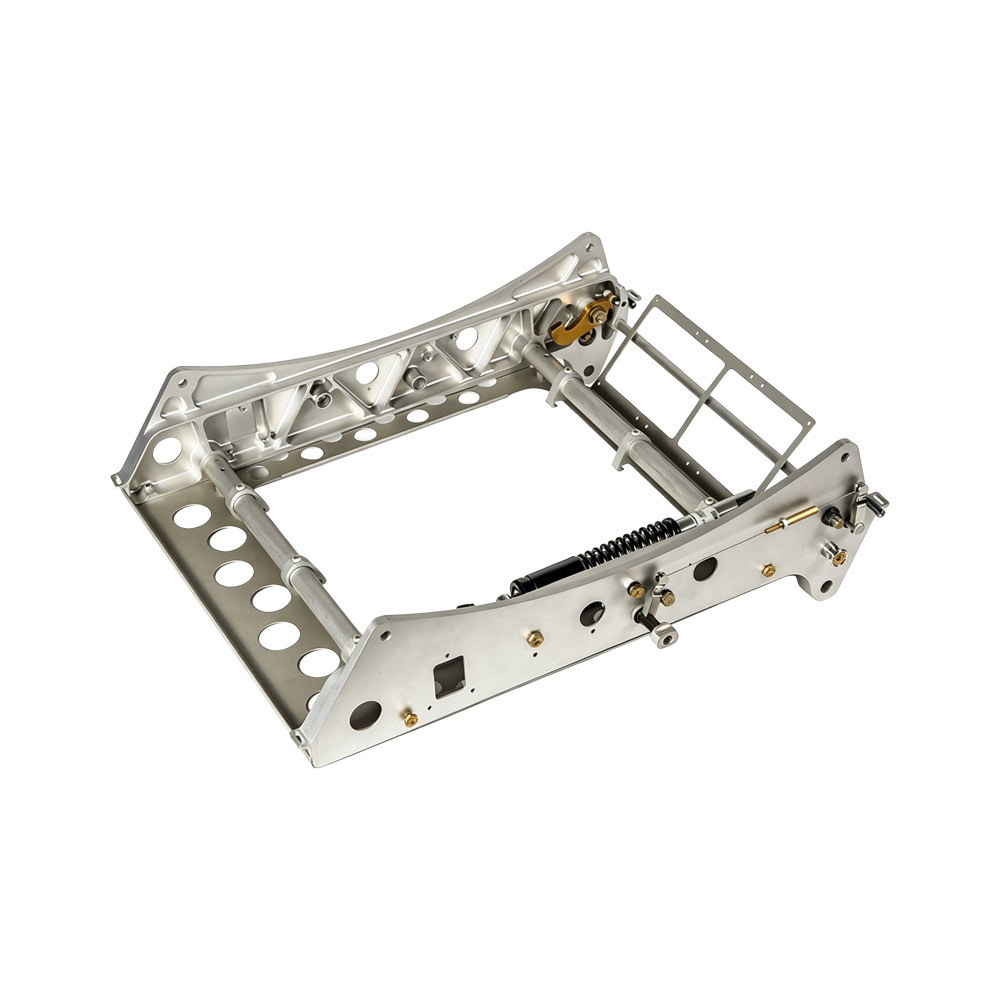

Precision Sheet Metal Suspension Frame Assembly — Manufactured by Syris

Syris presents this precision-fabricated sheet metal frame assembly, integrating structural support with a functional spring-loaded suspension mechanism, engineered for applications requiring both rigid load support and controlled motion damping.

Key Features:

• Material & Finish: Constructed from precision-formed aluminum/steel sheet with a natural brushed metal finish, providing an excellent strength-to-weight ratio, corrosion resistance, and long-term structural stability.
• Contoured Structural Frame: The frame features a smoothly curved, ergonomically profiled main beam with integrated triangulated reinforcement gussets, maximizing rigidity while minimizing weight.
• Integrated Spring Suspension Mechanism: A coil spring damping system is incorporated within the frame, working in conjunction with a pivoting lever arm to provide controlled cushioning, shock absorption, or adjustable tensioning.
• Precision CNC Manufacturing: Laser-cut and CNC-formed panels feature accurately positioned weight-reduction cutouts, mounting holes, and pivot points for precise mechanical function and consistent assembly fit.
• Adjustable Locking Lever: A brass-accented hand lever mechanism enables tool-free adjustment or locking of the frame's position, supporting quick reconfiguration during use.
• Multi-Point Pivot & Guide Rods: Precision-machined guide rods and pivot shafts allow smooth, controlled articulation between frame sections.

Typical Applications:
This suspension frame assembly is well-suited for seating systems, vehicle suspension platforms, ergonomic support structures, or industrial equipment requiring an integrated, adjustable spring-damped mechanical frame.

Quality Assurance:
Every assembly undergoes rigorous dimensional and functional testing to ensure smooth mechanism operation, secure locking performance, and structural integrity — reflecting Syris' expertise in precision sheet metal fabrication combined with functional mechanical assembly.
