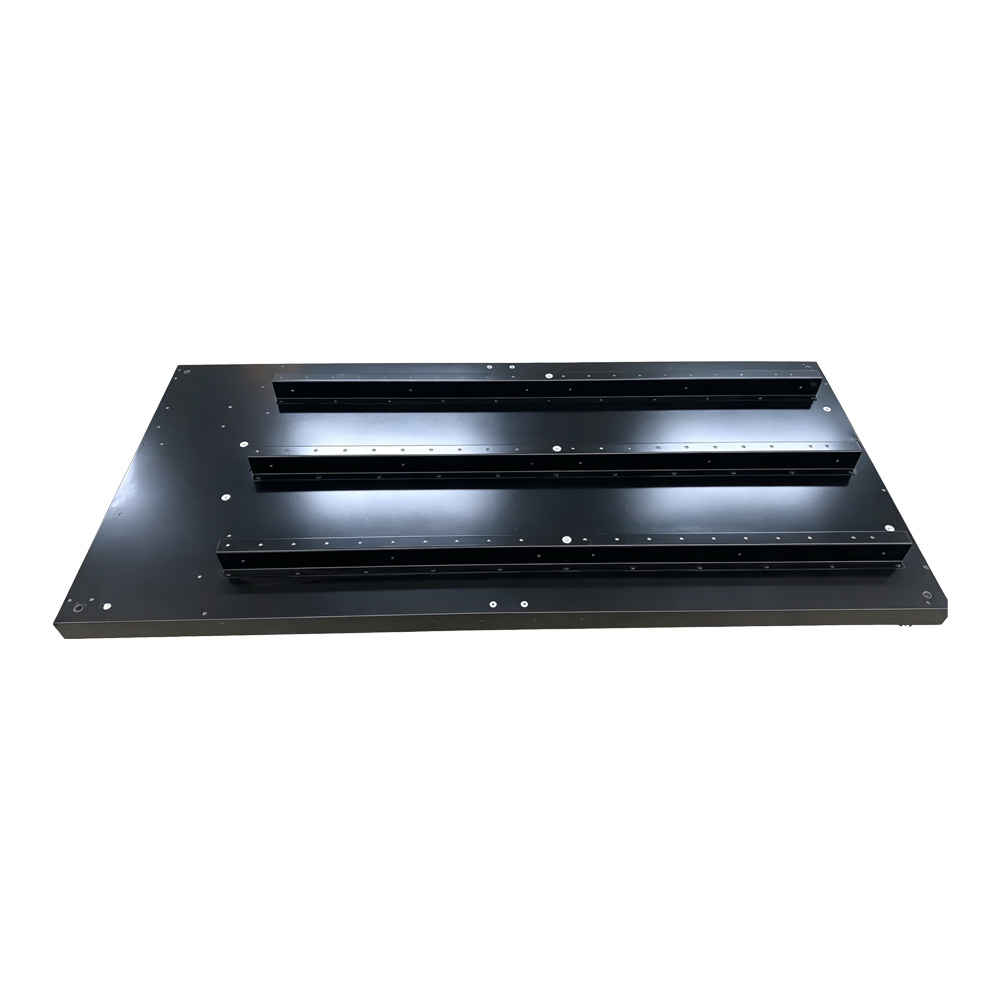

Syris Precision Sheet Metal Base Plate with Integrated Mounting Rails

Syris precision-manufactures this large-format flat base plate assembly featuring three parallel raised mounting rails, engineered as a structural platform for modular component installation.

Key Features:

• Precision Flat Base Panel: Large, rigid sheet metal base plate providing a stable, low-deflection mounting surface for supported equipment or modules.
• Triple Parallel Rail Design: Three evenly spaced, raised aluminum/steel mounting rails fastened along the length of the base plate, creating defined channels for sliding, aligning, or securing modular components.
• Dense Precision Hole Pattern: Rows of accurately spaced and positioned fastener holes along each rail, enabling flexible, repeatable mounting positions for attached modules or brackets.
• Perimeter Mounting Holes: Additional hole pattern around the base plate's outer edges for securing the entire assembly to a larger frame, cabinet, or support structure.
• Durable Black Finish: Corrosion-resistant black powder-coat or anodized finish across all components, providing a consistent, professional appearance and long-term surface protection.
• Multi-Piece Precision Assembly: Rails precisely fastened to the base plate at engineered positions, ensuring parallelism and consistent channel spacing across the full length of the platform.

Manufacturing Capabilities Demonstrated:

• Large-format precision sheet metal flat panel fabrication
• Multi-piece rail-to-base assembly with tight positional accuracy
• Dense, repeatable hole pattern drilling/punching
• Corrosion-resistant black finishing
• Support for modular, reconfigurable mounting systems

Applications:
Well-suited for server/equipment mounting trays, battery module platforms, optical/laser equipment bases, or industrial automation platforms requiring a rigid base with flexible, rail-guided component mounting.
