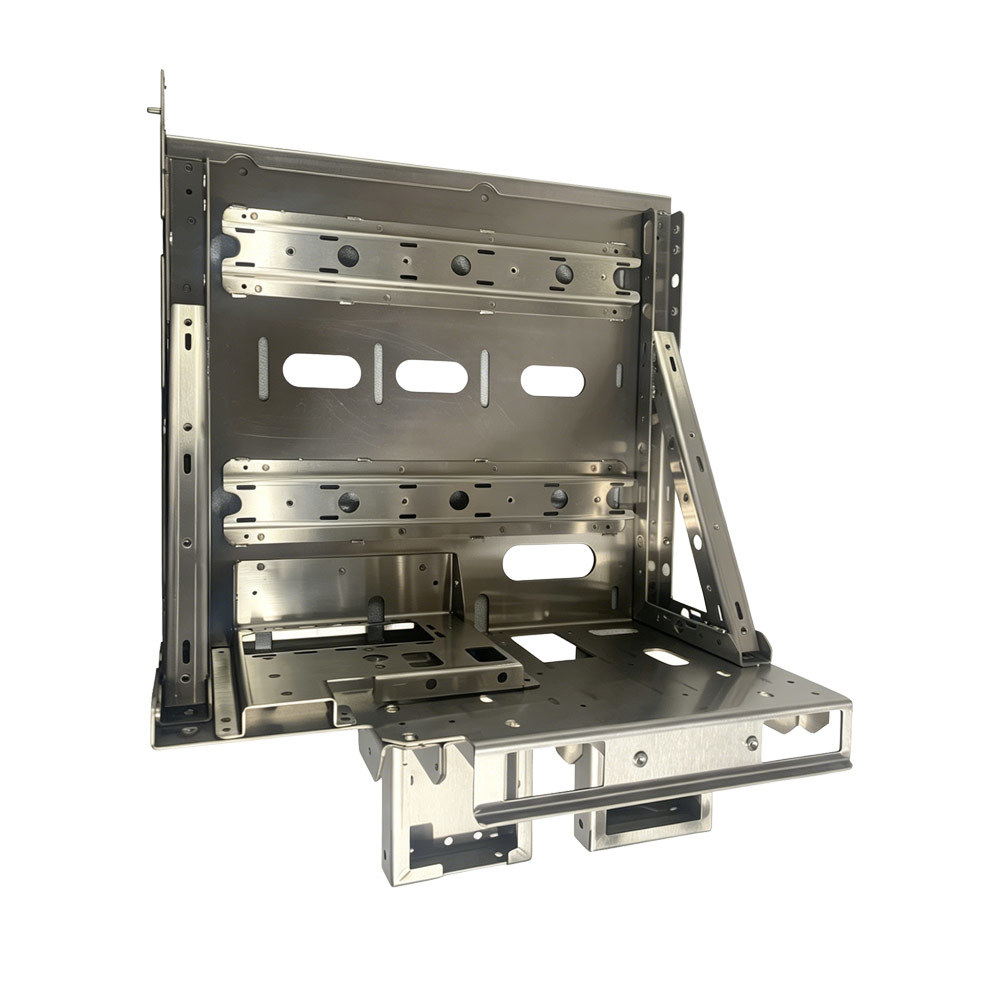

Syris Precision Sheet Metal Server Chassis Frame

Syris precision-manufactures this complex multi-panel stainless steel chassis frame, engineered as a structural sub-assembly for server, storage array, or industrial rack-mount equipment housing.

Key Features:

• Multi-Panel Welded Construction: Vertical back panel and horizontal base tray precision-formed and joined at a right-angle interface, creating a rigid, self-supporting L-shaped structural frame.
• Dual Horizontal Support Rails: Two precision-formed mounting rails spanning the back panel, featuring accurately positioned standoffs and hole patterns for securing internal drive bays, PCBs, or power modules.
• Slotted Ventilation Openings: Rows of elongated slot cutouts punched into the back panel for airflow and thermal management of internal components.
• Diagonal Reinforcement Gusset: Triangular formed side gusset providing critical corner bracing between the vertical and horizontal panels, significantly increasing resistance to racking and torsional flex.
• Modular Drive/Component Tray: Lower base tray featuring multiple stepped cutouts and mounting points, designed to accommodate drive bays, connector modules, or auxiliary sub-assemblies.
• Brushed Stainless Steel Finish: Corrosion-resistant surface finish providing durability and a clean, professional appearance suitable for data center or industrial environments.
• Precision Interlocking Features: Formed tabs, slots, and standoffs throughout the assembly enable accurate self-locating alignment during assembly, ensuring consistent build quality across production runs.

Manufacturing Capabilities Demonstrated:

• Multi-panel precision stamping, forming, and welding
• Complex L-frame structural fabrication with corner gusset reinforcement
• High-density mounting rail fabrication with standoffs
• Slotted ventilation punching
• Corrosion-resistant stainless steel finishing

Applications:
Ideal for server chassis frames, network storage enclosures, industrial rack-mount equipment, or telecom infrastructure housings requiring a rigid, precisely engineered structural frame to support internal drive bays and electronic modules.
