Syris Precision CNC Machined Sliding Pin Housing Block

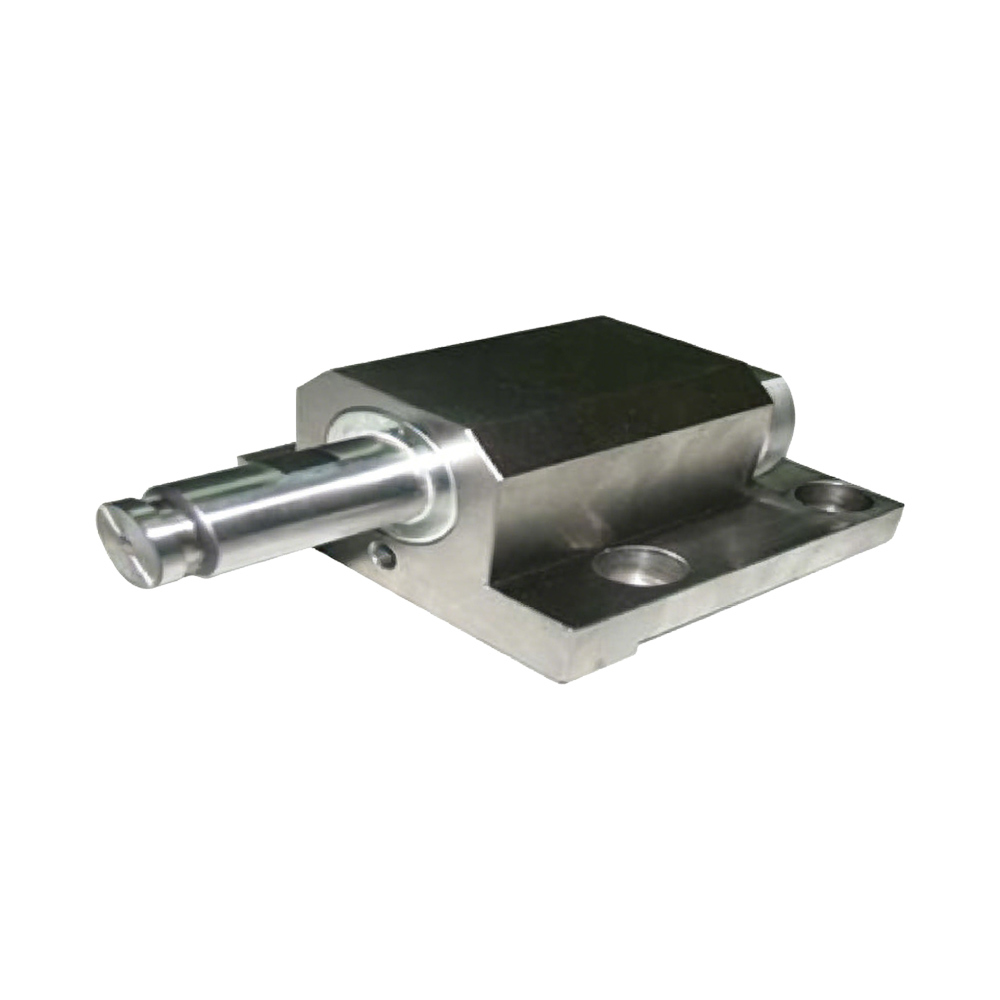

Syris precision-manufactures this stainless steel/aluminum housing block using multi-axis CNC machining, featuring a protruding precision-turned pin shaft integrated with a mounting flange base engineered for guided linear or pivot motion applications.

Key Features:

• Precision-Turned Extended Pin: Long, concentric turned shaft extending from the block body, machined to a tight-tolerance diameter and fine surface finish for smooth, low-friction engagement within a mating bushing or bore.
• Stepped Shoulder Design: Precisely turned shoulder transition at the base of the pin, providing an accurate axial stop and load-bearing contact surface against the mating component.
• Solid Block Body: Rigid, precisely milled rectangular housing body, providing a stable base for the pin feature while maintaining structural strength under operational loads.
• Flanged Mounting Base: Wide flange extension with a large, precisely bored/counterbored mounting hole, providing a secure, single-point bolted attachment to a supporting structure.
• Secondary Locating Hole: Additional small drilled hole on the block face, supporting dowel alignment or set-screw retention for precise, repeatable assembly positioning.
• Fine Machined Surface Finish: Bright, smooth surface finish across the turned pin and milled body, ensuring low-friction operation and corrosion resistance.

Manufacturing Capabilities Demonstrated:

• Multi-axis CNC turning and milling in combined operations
• Precision shaft turning with tight-tolerance shoulder features
• Flange drilling and counterboring for secure mounting
• Dowel/set-screw hole integration
• Fine surface finishing for functional sliding/pivot performance

Applications:
Well-suited for locking pin mechanisms, detent/latch assemblies, linear guide components, or pivot joint hardware requiring a precisely turned pin shaft combined with a rigid, securely mounted housing base.
