Precision Multi-Cavity Carrier Fixture
Precision Multi-Cavity Carrier Fixture
Specifications
Packaging Details :
Carton/Wood box
Surface Coating :
Hard Anodizing
Payment Terms :
To be discussed
Brand Name :
OEM
Place of Origin :
China
Price :
To be discussed
Application :
Handling and alignment of electronic components
MOQ :
1
Supply Ability :
To be discussed
Model Number :
OEM
Delivery Time :
3 weeks
Material :
AL7075
Description

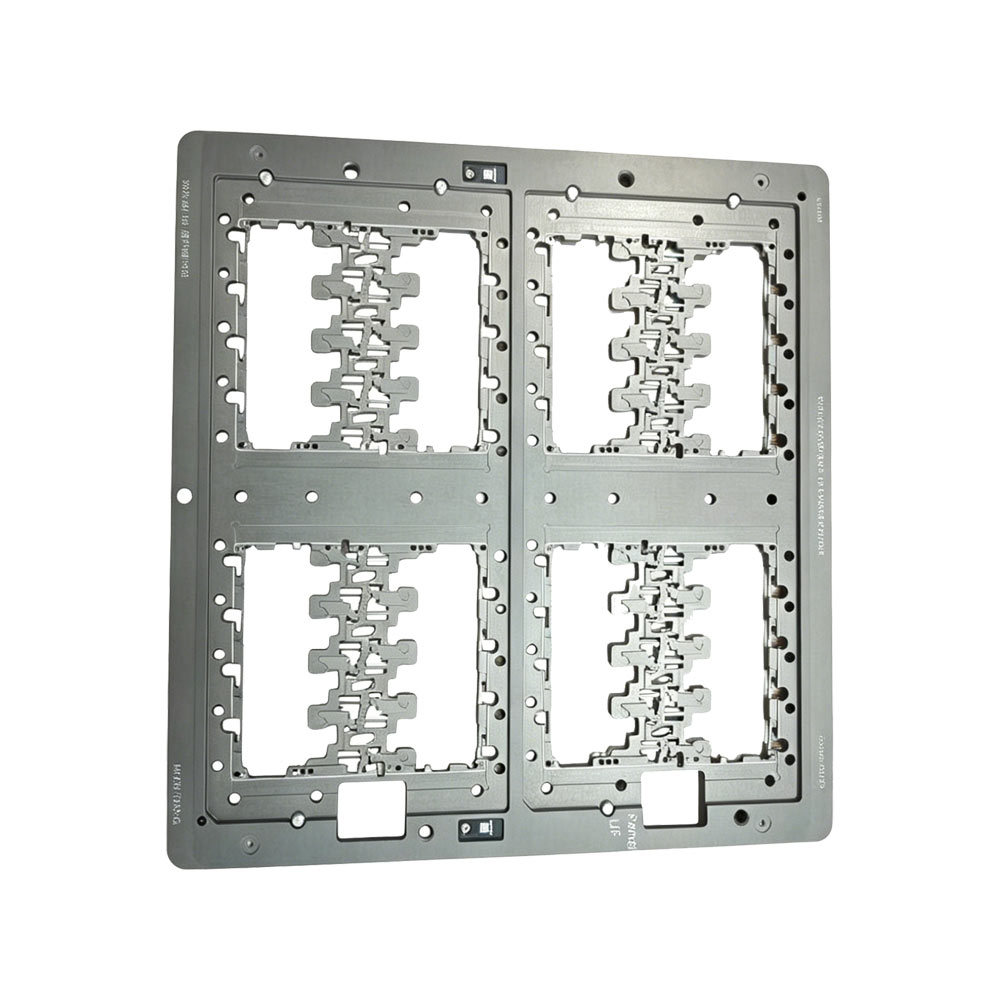

Syris Precision Multi-Cavity Carrier Fixture

Manufactured by Syris, this precision carrier fixture is CNC-machined from AL7075 high-strength aluminum alloy and finished with prototype-grade anodizing, designed for precision handling and alignment of electronic components in a multi-unit array configuration.

Key Features:

  • Material: AL7075 aerospace-grade aluminum alloy, offering superior strength-to-weight ratio, fatigue resistance, and dimensional stability compared to standard aluminum grades
  • Surface Treatment: Prototype-run anodized finish providing enhanced surface hardness, wear resistance, and corrosion protection while maintaining tight dimensional tolerances
  • Design: Symmetrical 2x2 multi-cavity layout, each cavity featuring intricate comb-tooth/finger structures for precise component nesting, alignment, and contact separation
  • Precision Features: Dense perimeter pattern of dowel and mounting holes around each cavity ensures accurate, repeatable positioning and secure clamping across all four stations
  • Construction: Single-piece machined plate with integrated reference holes, cutout windows, and mounting bosses for seamless integration into automated handling or test equipment
  • Application: Suitable as a carrier/alignment fixture for electronic component testing, burn-in, or assembly processes requiring simultaneous, repeatable handling of multiple units

Manufacturing Capabilities:
Syris specializes in precision CNC machining of high-strength aluminum alloys (AL7075/AL6061) with prototype and production anodizing services, delivering complex multi-cavity fixtures with tight tolerances for electronics testing and handling applications.
