Specifications
Brand Name :
WGSC
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
T/T
Fiberglass Type :
E-Glass
Grammage :
450-4000(g/m²)​
Yarn Type :
E-Glass
Work Tempee :
-50 to 260℃
Chemicalresistance :
Good resistance to acids and alkalis
Structure :
Fabric
Description

Multi-Axial Stitch-Bonded Fiberglass Composite Mat for Composite Reinforcement in Marine & Automotive Applications

Product Overview

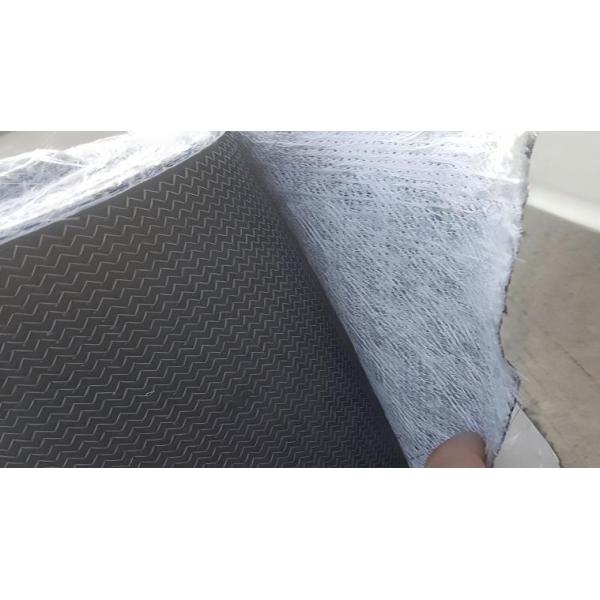

Stitch-Bonded Fiberglass Composite Mat​ is engineered by stitching unidirectional roving layers with randomly distributed chopped strand fibers using high-strength polyester threads. This innovative structure combines multi-directional reinforcement, rapid resin wet-out, and dimensional stability, making it ideal for hand lay-up, pultrusion, RTM (Resin Transfer Molding), and filament winding processes. Designed for demanding industrial environments, this product enhances mechanical performance while reducing production costs.

Key Features & Benefits

✅ Multi-Axial Reinforcement​
  • Combines directional strength (0°, ±45°, 90°) with isotropic properties for balanced load distribution.
  • Minimizes fiber displacement during curing, ensuring consistent mechanical integrity.
✅ Enhanced Resin Compatibility​
  • High void content (15–25%) enables rapid resin saturation, reducing cycle times by 20–30%.
  • Compatible with epoxy, polyester, and vinyl ester resins.
✅ Lightweight & Durable​
  • Weight options: 200–1500 g/m²​ (adjustable based on application requirements).
  • Thickness: 0.3–1.2 mm, balancing flexibility and structural rigidity.
✅ Chemical & Thermal Resistance​
  • Withstands temperatures up to 200°C​ (short-term) and resists oils, solvents, and UV exposure.
✅ Customizable Configurations​
  • Available with optional core materials (e.g., PP/PET films) for lightweight sandwich structures.

Applications

Industry​
Typical Uses​
Marine​
Hull repairs, tank linings, and corrosion-resistant coatings.
Automotive​
Structural panels, engine mounts, and electrical insulation.
Wind Energy​
Blade reinforcement, nacelle components.
Construction​
Fireproof insulation boards, pipeline wraps.
Aerospace​
Cabin interiors, seat frames, and composite tooling.

Technical Specifications

Parameter​
Specification​
Material
E-glass fibers + polyester thread binding
Weight Range
200–1500 g/m²
Thickness
0.3–1.2 mm
Tensile Strength (MD)
≥1200 MPa
Compressive Strength
≥45 MPa
Thermal Stability
-50°C to +200°C
Water Absorption
≤1.2% (24h immersion)
Resin Uptake Rate
≤30 sec (for 300 g/m² mat)

Packaging & Delivery

Standard Packaging​

  • Primary: Wrapped in PE film​ to prevent moisture ingress.
  • Secondary: Secured in corrugated cardboard boxes​ (size: 1200×1000×500 mm).
  • Palletization: 12 boxes per pallet, max stack height of 2 tiers.

Bulk Customization​

  • Available in jumbo rolls​ (width: 1–2.5 m, length: 500–1000 m).
  • Vacuum-sealed for long-distance shipping.

Storage Guidelines

  1. Environment: Store in cool, dry warehouses​ (15–25°C, <60% RH).
  2. Protection: Avoid direct sunlight, chemical vapors, and mechanical compression.
  3. Shelf Life: 18–24 months if unopened and stored properly.
