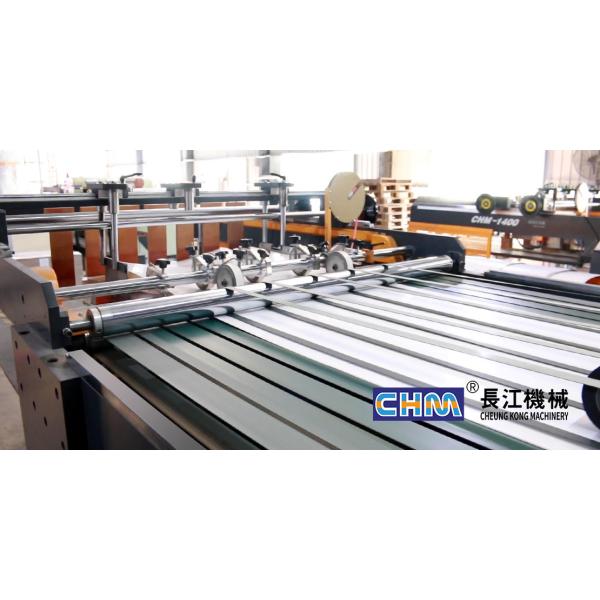

CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
Specifications
Brand Name :
CHM Machinery
Model Number :
CHM-1100
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
,L/C,D/A,D/P,T/T
Supply Ability :
200 sets
Delivery Time :
90 days
Packaging Details :
Stretch Film, shipping mark, bubble wrap
Price :
50000-120000
Machine Weight :
2500kg
Type of Cutting :
Top blade rotary, bottom blade fixed
Weight of Paper :
60-500 GSM
Reel Diameter :
Max 1500mm (59")
Finished Width :
Max 1100mm (43")
Finished Sheet Length :
Min. 450 - Max. 1300 mm
Number of Rolls Cutting :
2 rolls
Total Power :
22 KW
Description
CHM-1100 High Speed Paper Sheeter for Printing Packaging
Product Overview

A servo-driven high speed, high precision and high efficiency sheeter. Capable of handling a wide range of paper types including board paper, art paper, and kraft paper. Widely used in printing, packaging, and paper supply industries.

CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
Technical Specifications
Attribute Specification
Model CHM-1100
Machine Weight 2500kg
Type of Cutting Top blade rotary, bottom blade fixed
Weight of Paper 60-500 GSM
Reel Diameter Max 1500mm (59")
Finished Width Max 1100mm (43")
Finished Sheet Length Min. 450 - Max. 1300 mm
Number of Rolls Cutting 2 rolls
Cutting Accuracy ±0.5mm (L < 1000mm)
±0.1% (L ≥ 1000mm)
Max Speed of Cutting 300 cuts/min
Total Power 22 KW
Voltage AC 380V/220V x 50Hz
Standard Configuration
  • Max Reel diameter: 1500mm (59")
  • Max Reel width: 1100mm (43")
  • Min Reel width: 350mm (14")
  • Core size: 3", 6", 12" (Cone chuck)
  • HYD. Driving: 3.75kw
  • Clip arm movement driven by HYD
  • Pneumatic brake system
  • Dancing roll with related bracket
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
Slitting and Waste Collection System
  • Adjustable slitting knife and exhaust tube for waste edge on both sides
  • Top slitter: Adjustable up/down with manual width adjustment
  • Bottom slitter: Fixed with manual width adjustment
  • Windmill: Driven motor
  • Type-Y collecting pipe for waste edge
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
High Precision Rotary Sheet Cutter
  • Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
  • Bottom Tool Apron: Cast and processed for stability
  • Main driving roller: Grainy surface with air pressure control for paper grip
Advanced Control Systems
  • Auto-Squareness Adjustment with touch screen calibration
  • Static Eliminator System with anti-static bar
  • Auto-tension control via computer based on paper parameters
  • Auto-EPC (Edge Paper Control) with precision sensing nozzle
  • Electric De-curl system for paper curvature reduction
CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper CHM Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
Paper Conveyor & Stacking System
  • Horizontal multi-stage conveying for efficient counting and piling
  • First stage: Quick paper separation
  • Second stage: Tile-shaped conveyance with speed control
  • Auto counting and label inserting device
  • Auto Jogger System with HYD piling stand (max stack height 1200mm/47")
Electrical & Drive Systems
  • User-friendly electric control system with direct parameter input
  • Multiple AC servo and inverter motors for various functions
  • Precision motor control for all operational components
