Specifications
Brand Name :
CHM Machinery
Model Number :
CHM-1100
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
50000-120000
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
200 sets
Delivery Time :
90 days
Packaging Details :
Stretch Film, shipping mark, bubble wrap
Machine Weight :
2500kg
Type of Cutting :
Top blade rotary, bottom blade fixed
Weight of Paper :
60-500 GSM
Reel Diameter :
Max 1500mm (59")
Finished Width :
Max 1100mm (43")
Finished Sheet Length :
Min. 450 - Max. 1300 mm
Number of Rolls Cutting :
2 rolls
Total Power :
22 KW
Description
CHM Newspaper Roll to Cutting Machine Jumbo Paper Roll Sheeter Machine
High Speed Paper Sheeter for Printing Packaging
Product Overview

CHM-1100 High Speed Paper Sheeter - AC servo-driven Precision High-Speed Sheeter: High speed, precision & efficiency. Adapts to paper, board, art paper, kraft paper, ideal for printing, packaging and paper suppliers.

The machine is small in size and easy to operate. High-Speed Precision Sheeter with AC servo drive: Fast, accurate, efficient. Fits various papers (board, art, kraft) - a top choice for printing, packaging and paper industries.

High Speed 300 cuts/min AC Servo-Driven Precision Cutting ±0.5mm Paper Sheeter Machine for Jumbo Paper Rolls High Speed 300 cuts/min AC Servo-Driven Precision Cutting ±0.5mm Paper Sheeter Machine for Jumbo Paper Rolls
Technical Specifications
Attribute Specification
Model CHM-1100
Machine Weight 2500kg
Type of Cutting Top blade rotary, bottom blade fixed
Weight of Paper 60-500 GSM
Reel Diameter Max 1500mm (59")
Finished Width Max 1100mm (43")
Finished Sheet Length Min. 450 - Max. 1300 mm
Number of Rolls Cutting 2 rolls
Cutting Accuracy ±0.5mm (L < 1000mm)
±0.1% (L ≥ 1000mm)
Max Speed of Cutting 300 cuts/min
Total Power 22 KW
Voltage AC 380V/220V x 50Hz
Standard Configuration

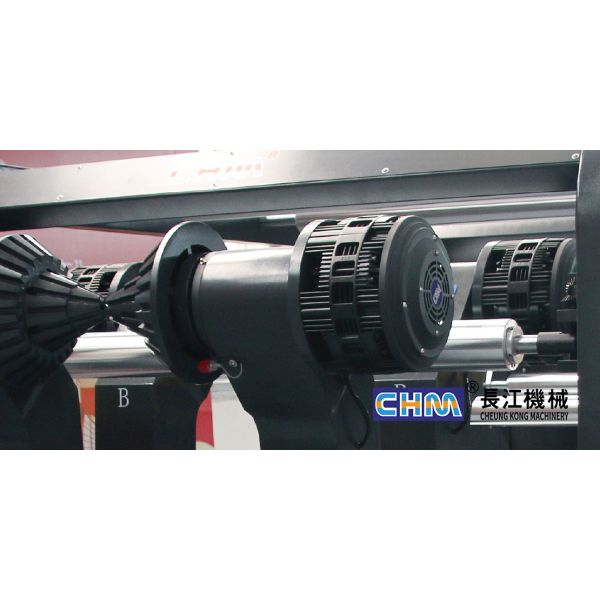

  • Max Reel diameter: 1500mm (59")
  • Max Reel width: 1100mm (43")
  • Min Reel width: 350mm (14")
  • Core size: 3", 6", 12" (Cone chuck)
  • HYD. Driving: 3.75kw
  • Clip arm movement driven by HYD
  • Pneumatic brake system
  • Dancing roll with related bracket
High Speed 300 cuts/min AC Servo-Driven Precision Cutting ±0.5mm Paper Sheeter Machine for Jumbo Paper Rolls
Slitting and Waste Collection System
  • Adjustable slitting knife and exhaust tube for waste edge on both sides
  • Top slitter: Adjustable up/down with manual width adjustment
  • Bottom slitter: Fixed with manual width adjustment
  • Windmill: Driven motor
  • Type-Y collecting pipe for waste edge
High Speed 300 cuts/min AC Servo-Driven Precision Cutting ±0.5mm Paper Sheeter Machine for Jumbo Paper Rolls
High Precision Rotary Sheet Cutter
  • Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
  • Bottom Tool Apron: Cast and processed for stability
  • Main driving roller: Grainy surface with air pressure control for paper grip
Advanced Control Systems
  • Auto-Squareness Adjustment with touch screen calibration
  • Static Eliminator System with anti-static bar
  • Auto-tension control via computer based on paper parameters
  • Auto-EPC (Edge Paper Control) with precision sensing nozzle
  • Electric De-curl system for paper curvature reduction

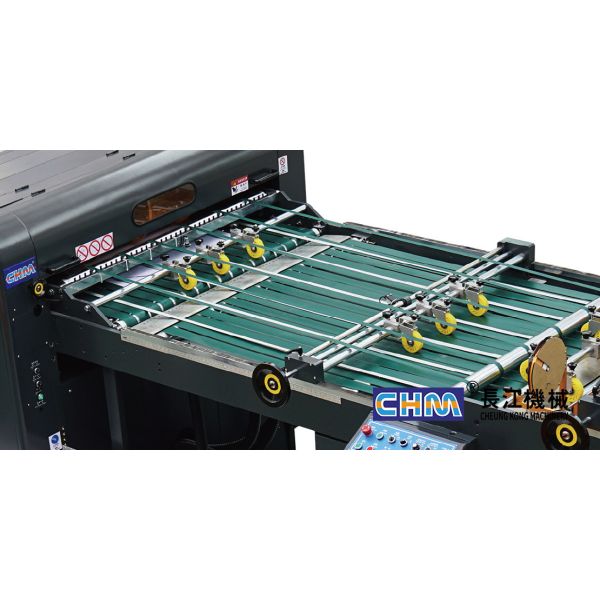

Paper Conveyor & Stacking System
  • Horizontal multi-stage conveying for efficient counting and piling
  • First stage: Quick paper separation
  • Second stage: Tile-shaped conveyance with speed control
  • Auto counting and label inserting device

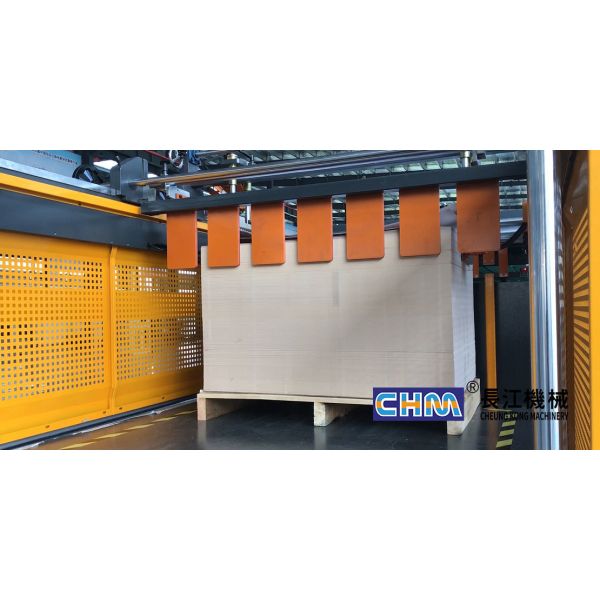

  • Auto Jogger System with HYD piling stand (max stack height 1200mm/47")
Electrical & Drive Systems
  • User-friendly electric control system with direct parameter input
  • Multiple AC servo and inverter motors for various functions
  • Precision motor control for all operational components
