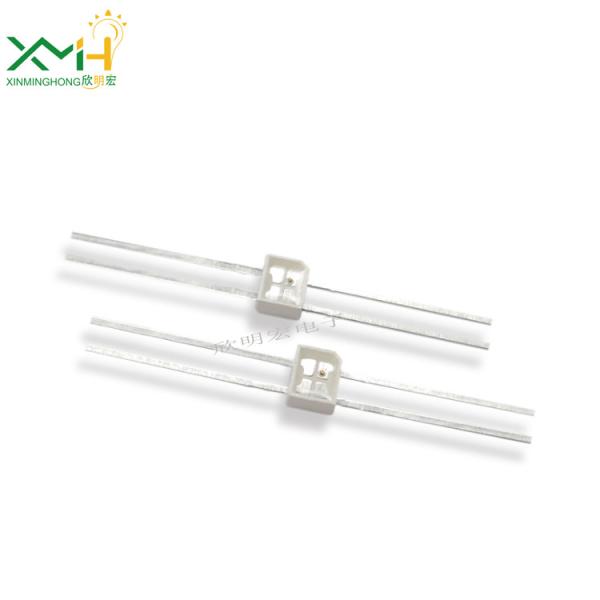

RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode
RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode
RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode
RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode
Specifications
Brand Name :
XINMINGHONG
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1000 pieces
Price :
To be negotiated
Supply Ability :
1000000 PCS PER DAY
Packaging Details :
1000pcs/bag
Brand name :
XINMINGHONG
Type :
Axial SMD LED
Chip Material :
INGAN
Chip brand :
SanAn
Emitting Color :
Red Green and Blue
Power :
0.06W
Forward current :
20mA
Forward voltage :
R:1.7-2.2V G:2.3-3.0 B:2.3-3.0V
Luminous intensity :
R:120-450mcd G:450-1000mcd B:100-300mcd
Color Temperature :
R:630-640nm G:520-530nm B:460-470nm
Overall dimension :
2.7*3.4mm
Color tolerance :
<7（SDCM）
Operating Temperature(℃) :
-40 - 85
Storage Temperature(℃) :
-40 - 85
Color rendering index :
90
steady of Deskop :
Copper
Packing Quantity :
1000pcs/bag
Description

Axial LED RGB Common Anode PLCC-4 Tri Color LED Red Green and Blue Luminous Diode

Tri Color LED Red Green and Blue Axial LED RGB Common Anode PLCC-4 Luminous Diode

Product Description of RGB Axial SMD LED

Absolute Maximum rating of RGB Axial SMD LED:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 60 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of RGB Axial SMD LED:(Ta=25°C)

Parameter Test condition Symbol Value Unit
color Min Typ Max
Dominant wavelength If=20mA λp red 620 --- 630 nm
green 520 --- 530
blue 460 --- 470
Forward voltage If=20mA Vf red 1.7 --- 2.2 v
green 2.3 --- 3.0
blue 2.3 --- 3.0
Light intensity If=20mA Iv red 120 --- 450 mcd
green 450 --- 1000
blue 100 --- 300
Viewing angle at 50% lv If=10mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 10 uA

Outline dimension of RGB Axial SMD LED:

RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode

Feature of RGB Axial SMD LED:

1. Long life span

2. Light decay is small

3. Good quality

4. Energy saving and environmental protection

5. Price is competitive

6. ROHS certification

Application of RGB Axial SMD LED:

1. Car dashboard, stop lights, turn signals

2. Liquid crystal display

3. Industrial electronics, etc

Related Products

Hot sales

Certifications
RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode

Company Information

RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

XMH provides excellent sales service and strong technical supports to our customers.

Our Advantages
RGB Common Anode Axial LED PLCC-4 Tri Color LED Red Green And Blue Luminous Diode

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience

FAQ

Why choose us?

Q1: Can I get some samples for tests?
A1: Yes, we welcome sample order to test and check quality.

Q2: Can you accept OEM and ODM order?
A2: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models. For special models, it will takes some time to customize them.

Q3: How do you ship the goods and how long does it take to arrive?
A3: We usually ship by DHL, UPS express, FedEx or TNT. It usually takes 5-7 days to arrive.

Q4: What about the lead time?
A4: It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.

Q5: Do you offer guarantee for the products?

A5: Yes, we offer 2 years warranty to our products.

Packaging & Shipping

PACKAGE:

Single package size: 16.0*23.0cm

Package Type: 1000pcs /bag According To The Request.

Inner packaging: Anti-static Bag Packaging

Outer packaging: Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
