Dome Water Transparency Lens Chip SMD LED Yellow Emitting Color
Dome Water Transparency Lens Chip SMD LED Yellow Emitting Color
Dome Water Transparency Lens Chip SMD LED Yellow Emitting Color
Dome Water Transparency Lens Chip SMD LED Yellow Emitting Color
Specifications
Brand Name :
XINMINGHONG
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1500 pieces
Price :
To be negotiated
Supply Ability :
1200000 Pieces per Day
Packaging Details :
1500pcs/reel Reel+Anti-static bag+carton
Lens Type :
Dome Water Transparency
Chip Material :
Gap
Emitting Color :
Yellow
Forward voltage :
3.0-3.4V
Color Temperature :
585-595NM
Luminous Intensity :
400-600mcd
Power :
0.06W
Power Dissipation :
60mW
Viewing Angle(°) :
20
Optical Attenuation(%) :
97
Color Rendering Index(Ra) :
85
Operating Temperature(℃) :
-40 - 85
Storage Temperature(℃) :
-40 - 85
Port :
Shen zhen
Description

Dome Water Transparency 3224 SMD LED Chip Yellow 585-595nm 400-600Mcd LED Emitter Chip

SMD LED Chip Yellow Dome Water Transparency 3224 585-595nm 400-600Mcd LED Emitter Chip

Product Description of 3224 smd led:

Absolute Maximum rating of 3224 smd led:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 60 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of 3224 smd led:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 585 - 595 nm
Forward voltage If=20mA Vf 2.0 - 2.4 v
Luminous intensity If=20mA Iv 400 - 600 mcd
Viewing angle at 50% lv If=10mA 2θ1/2 20 Deg
Resverse current Vr=5v Ir 10 mA

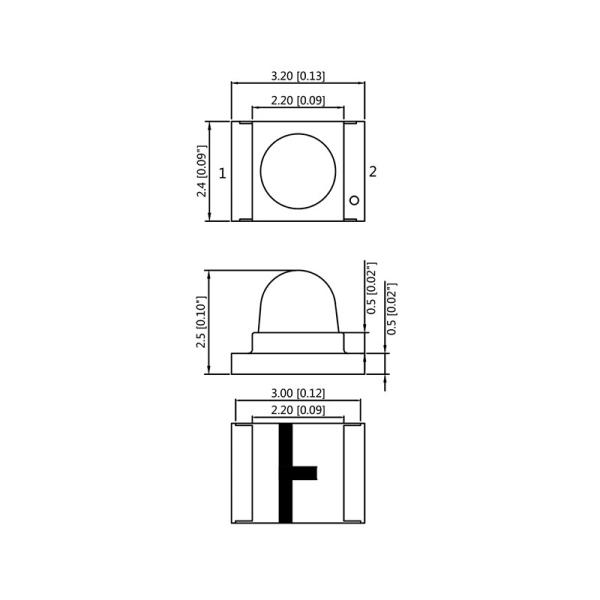

Outline dimension of 3224 smd led:

Dome Water Transparency Lens Chip SMD LED Yellow Emitting Color

Feature of 3224 smd led:

1. Small appearance

2. High brightness

3. Long life

4. Energy-saving

5. Environmental protection

6. High reliability

Application of 3224 smd led:

1. LED display

2. Backlight

3. Automotive electronics

4. High-end digital products

5. Electronic appliances, etc.

Related Products

Hot sales

1

Dual color red and green 3227 bi-color smd led for charger

2

Hot selling promotion 0805 smd led diode use for car LED display

Certifications

Company Information

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

XMH provides excellent sales service and strong technical supports to our customers.

FAQ

Why Choose US?

Q1: Are you a factory or a trade company?

A1: We're professional manufacturer of Chip SMD LED, providing one-stop OEM & ODM service to all partners all over the world.

Q2: Can I get some samples for tests?

A2: Yes, we welcome sample order to test and check quality.

Q3: Is there any discount for bulk order?

A3: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q4: How to choose LED light source ?
A4: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.

Q5: How to process the order?

A5: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Packaging & Shipping

PACKAGE:

Single package size: 21X24X1 cm

Package Type: 1500pcs / reel, 40bags / carton & According To The Request.

Inner packaging: Anti-static Bag Packaging

Outer packaging: Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
