Specifications
Brand Name :
XINMINGHONG
Certification :
ROHS
Place of Origin :
Guangdong, China
MOQ :
3000 pcs
Price :
To be negotiated
Supply Ability :
100000pcs per day
Packaging Details :
3000PCS/tape Anti static bag+Carton
Diode Type :
335 Side View SMD LED
Package Type :
PLCC-2 package
Application :
switch and symbol
Supplier Type :
Original manufacturer
Media Available :
datasheet, Photo
Max. Forward Voltage :
3.0-3.2v
Max. Reverse Voltage :
5V
Max. Forward Current :
30MA
Max. Reverse Current :
5uA
Luminous intensity :
900-1000mcd
Dominant wavelength :
520-525nm
Power dissipation :
0.06W
Operating Temperature :
-30 to 80
Warranty :
2 years
Package QTY :
3000pcs per bag
Description

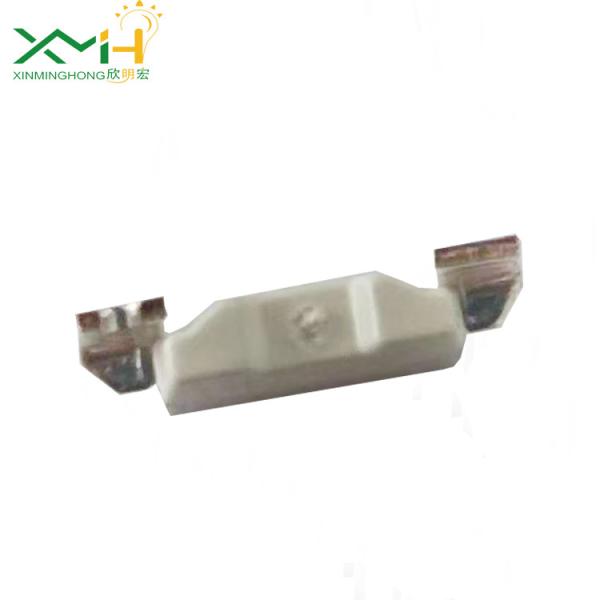

Side View SMD LED 900-1000mcd 1.0*0.8*1.4mm 335 Green LED Chip Vacuum Packaging

335 Green Side View SMD LED 900-1000mcd 1.0*0.8*1.4mm LED Chip Vacuum Packaging

Product Description of 355 Side View SMD LED

Absolute Maximum ratingof 335 Side View SMD LED:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 60 mW
Operationg temperature Top -30∼+80 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+100 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristicsof 335 Side View SMD LED:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 520 --- 525 nm
Forward voltage If=20mA Vf 3.0 --- 3.2 v
Luminous intensity If=20mA Iv 900 --- 1000 mcd
Viewing angle at 50% lv If=10mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 5 mA

Outline dimensionof 335 Side View SMD LED:

900 - 1000mcd 1.0*0.8*1.4mm Side View SMD LED 335 Green LED Chip Vacuum Packaging

Feature of 335 Side View SMD LED:

1. Small size

2. High brightness

3. High reliability

4. Use anti-static sealing pocket packaging

Applicationof 335 Side View SMD LED:

1. Automotive backlighting in dashboard and switch
2. Flat backlight for LCD
3. switch and symbol
4. Light pipe application,etc

Related Products

Hot sales

Certifications
900 - 1000mcd 1.0*0.8*1.4mm Side View SMD LED 335 Green LED Chip Vacuum Packaging

Company Information

900 - 1000mcd 1.0*0.8*1.4mm Side View SMD LED 335 Green LED Chip Vacuum Packaging

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

XMH provides excellent sales service and strong technical supports to our customers.

Our Advantages
900 - 1000mcd 1.0*0.8*1.4mm Side View SMD LED 335 Green LED Chip Vacuum Packaging

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience

1. Reply your inquiry within 12 working hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. Strict quality control procedures before shipment.
4. Customized design is available.OME and ODM are welcomed
5. Delivery the goods to our customer all over the world with speed and precision.

FAQ

Why choose us?

Q1: Are you a factory or a trade company?

A1: We're professional manufacturer of Chip SMD LED, providing one-stop OEM & ODM service to all partners all over the world.

Q2: Can I get some samples for tests?

A2: Yes, we welcome sample order to test and check quality.

Q3: Is there any discount for bulk order?

A3: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q4: How to choose LED light source ?
A4: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.

Q5: How to process the order?

A5: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Packaging & Shipping

PACKAGE:

Single package size: 21X24X1 cm

Package Type: 3000pcs / reel, 40bags / carton & According To The Request.

Inner packaging: Anti-static Bag Vacuum Packaging

Outer packaging: Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
