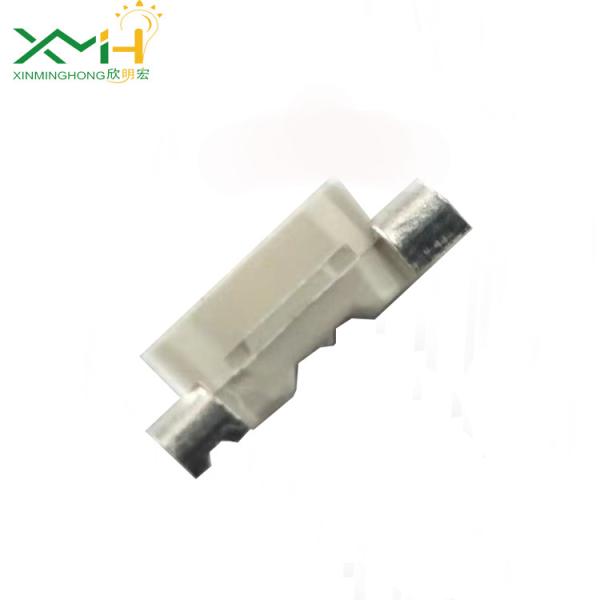

SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options
SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options
SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options
SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options
Specifications
Brand Name :
XINMINGHONG
Certification :
ROHS
Place of Origin :
Guangdong, China
MOQ :
3000 pcs
Price :
To be negotiated
Supply Ability :
100000pcs per day
Packaging Details :
3000PCS/tape Anti static bag+Carton
Supplier Type :
Original manufacturer
Media Available :
datasheet, Photo
Max. Reverse Voltage :
5V
Max. Forward Current :
30mA
Max. Reverse Current :
5uA
Forward voltage :
2.0-2.2V
Dominant wavelength :
620-625nm
Luminous intensity :
500-600mcd
Power dissipation :
0.06W
Viewing angle :
120deg
Operating Temperature :
-30∼+80
Storage temperature :
-40∼+100
Warranty :
2 years
Package QTY :
3000pcs per bag
Description

SMD LED 2V 335 Red 0.06w 500-600mcd Multiple Color Options Side View Emitting Diode

0.06w Side View SMD LED 335 Red 500-600mcd Multiple Color Options Emitting Diode

Product Description of 335 Side View SMD LED

Absolute Maximum rating of 335 Side View SMD LED:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 60 mW
Operationg temperature Top -30∼+80 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+100 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristicsof 335 Side View SMD LED:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 620 --- 625 nm
Forward voltage If=20mA Vf 2.0 --- 2.2 v
Luminous intensity If=20mA Iv 500 --- 600 mcd
Viewing angle at 50% lv If=10mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 5 mA

Outline dimensionof 335 Side View SMD LED:

SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options

Feature of 335 Side View SMD LED:

1. Small power

2. High brightness

3. Side emitting

4. Thick bracket

Application of 335 Side View SMD LED:

1. In-vehicle lighting

2. Indicator light

3. LED back light source

Related Products

Hot sales

Certifications
SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options

Company Information

SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

XMH provides excellent sales service and strong technical supports to our customers.

Our Advantages
SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience

FAQ

Why choose us?

Q1: Can I have a sample order for led light?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?
A2: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3: How to proceed an order for led light?
A3: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q4: Is it OK to print my logo on led light product?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: Do you offer guarantee for the products?
A5: Yes, we offer 2 years warranty to our products.

Packaging & Shipping

PACKAGE:

Single package size: 21*24*1cm

Package Type: 2000pcs / tube, 40bags / carton & According To The Request.

Inner packaging: Anti-static Bag vacuum Packaging

Outer packaging: Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

SMD LED 2V 335 Red Side View Emitting Diode 0.06w 500 - 600mcd Multiple Color Options
