Specifications
Brand Name :
Texas Instruments
Model Number :
TPS54360BQDDARQ1
Certification :
/
Place of Origin :
N/S
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
9999999+PCS
Delivery Time :
2-7 work days
Capacitance :
2.2UF
Package type :
Through Hole
Date code :
the lasteds code
Quality :
100% Brand
Lead free status :
NOPB
Description

SMD Chip Capacitor Texas Instruments/TI TPS54360BQDDARQ1

ECAD Module PCB Symbol,Footprint & 3D Model
Supply and Demand Status Limited
Popularity Medium
Fake Threat In the Open Market 32 pct.
Quantity per package 2500
HTSUS 8542.39.0001
ECCN EAR99
REACH Status REACH Unaffected
MSL Level 2 (1 Year)
Family Name TPS54360
Package Reel - TR
Series Automotive, AEC-Q100, Eco-Mode™
Manufacturer Texas Instruments
Features Switching Regulator IC Output
Estimated Pruduction Lead Time 34 Weeks
Categories Integrated Circuits (ICs)
Other Part Number 296-TPS54360BQDDARQ1TR, 296-TPS54360BQDDARQ1DKR, 296-TPS54360BQDDARQ1CT, 296-46985-1, 296-46985-2, 296-46985-6-ND, 296-46985-2-ND, -296-46985-1-ND, 296-46985-1-ND, 296-46985-6

Features for the TPS54360B-Q1

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
    • Device HBM ESD Classification Level H1C
    • Device CDM ESD Classification Level C3B
  • High Efficiency at Light Loads With Pulse Skipping Eco-Mode™
  • 92-mΩ High-Side MOSFET
  • 146-µA Operating Quiescent Current and 2 µA Shutdown Current
  • 100-kHz to 2.5-MHz Adjustable Switching Frequency
  • Synchronizes to External Clock
  • Low Dropout at Light Loads With Integrated BOOT Recharge FET
  • Adjustable UVLO Voltage and Hysteresis
  • 0.8-V 1% Internal Voltage Reference

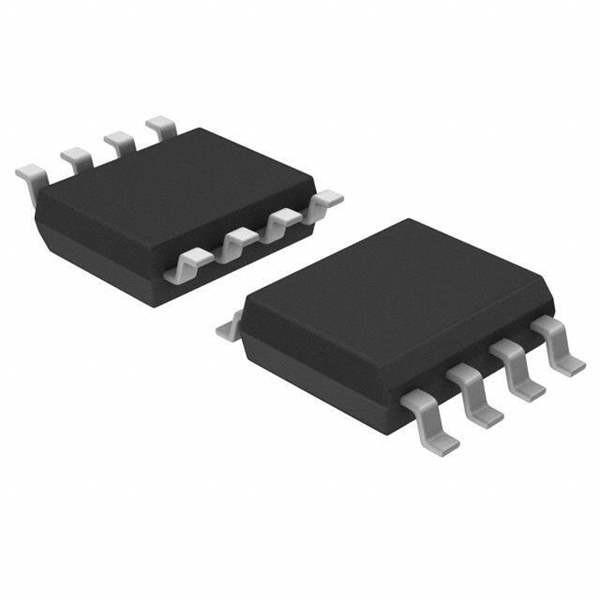

  • 8-Pin HSOP With PowerPAD™ Package
  • –40°C to 150°C TJ Operating Range

Description for the TPS54360B-Q1

The TPS54360B-Q1 is a 60-V 3.5-A step-down regulator with an integrated high-side MOSFET. The device survives load dump pulses up to 65 V per ISO 7637. Current mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load supply current to 146 µA. Shutdown supply current is reduced to 2 µA when the enable pin is pulled low.

Undervoltage lockout is internally set at 4.3 V but can be increased using an external resistor divider at the enable pin. The output voltage start-up ramp is internally controlled to provide a controlled start up and eliminate overshoot.

A wide adjustable frequency range allows either efficiency or external component size to be optimized. Frequency foldback and thermal shutdown protects internal and external components during an overload condition.

The TPS54360B-Q1 is available in an 8-pin thermally enhanced HSOP PowerPAD package.
