Specifications
Brand Name :
Texas Instruments
Model Number :
INA216A2RSWR
Certification :
/
Place of Origin :
N/S
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
9999999+PCS
Delivery Time :
2-7 work days
Product name :
200 Ampere EMC Filter
Type :
EMI Filter
3db bandwidth :
Customized
Item :
PCB Electromagnetic wave absorbing
Line to ground :
2000VAC
Description

EMI Filter IC Texas Instruments/TI INA216A2RSWR

ECAD Module PCB Symbol,Footprint & 3D Model
Supply and Demand Status Balance
Fake Threat In the Open Market 45 pct.
Popularity Medium
MSL Level 1 (Unlimited)
Manufacturer Pack Quantity 1
Family Part Number INA216

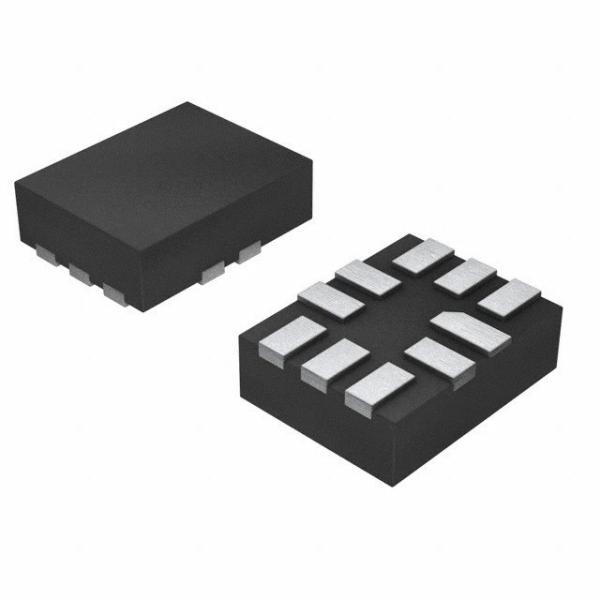

Supplier Device Package 10-UQFN (1.8x1.4)
Manufacturer Package 10-UFQFN
Mounting Style SMD
Temperature Range - Operating -40°C ~ 125°C
Parts Input Voltage (V) 1.8V ~ 5.5V
Accuracy ±0.05%
Sensing Method High-Side
Function Current Monitor
Packaging Reel
Manufacturer Texas Instruments
Categories Integrated Circuits

Features for the INA216

  • CHIP-SCALE PACKAGE
  • COMMON-MODE RANGE: +1.8V to +5.5V
  • OFFSET VOLTAGE: ±30µV
  • GAIN ERROR: ±0.2% MAX
  • CHOICE OF GAINS:
    • INA216A1: 25V/V
    • INA216A2: 50V/V
    • INA216A3: 100V/V
    • INA216A4: 200V/V
  • QUIESCENT CURRENT: 13µA
  • BUFFERED VOLTAGE OUTPUT: No Additional Op Amp Needed

Description for the INA216

The INA216 is a high-side voltage output current shunt monitor that can sense drops across shunts at common-mode voltages from +1.8V to +5.5V. Four fixed gains are available: 25V/V, 50V/V, 100V/V, and 200V/V. The low offset of the Zerø-Drift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale, or with wide dynamic ranges of over 1000:1.

These devices operate from a single +1.8V to +5.5V power supply, drawing a maximum of 25µA of supply current. The INA216 series are specified over the temperature range of –40°C to +125°C, and offered in a chip-scale package.
