Specifications
Model Number :
EI96
Usage :
Audio / Signal / Impedance Matching
MOQ :
1000 pcs
Delivery Time :
15-30 working days
Winding Material :
UL Approved Copper Transformer
Payment Terms :
T/T
Price :
$4.87-$6.78
ODM/OEM :
Available
Supply Ability :
3K-50K PCS/Month
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Core Material :
Laminated Silicon Steel / Permalloy
Brand Name :
Chipsen
Efficency :
≥ 95%
Packaging Details :
Carton
Place of Origin :
China
Phase Type :
Single Phase
Description

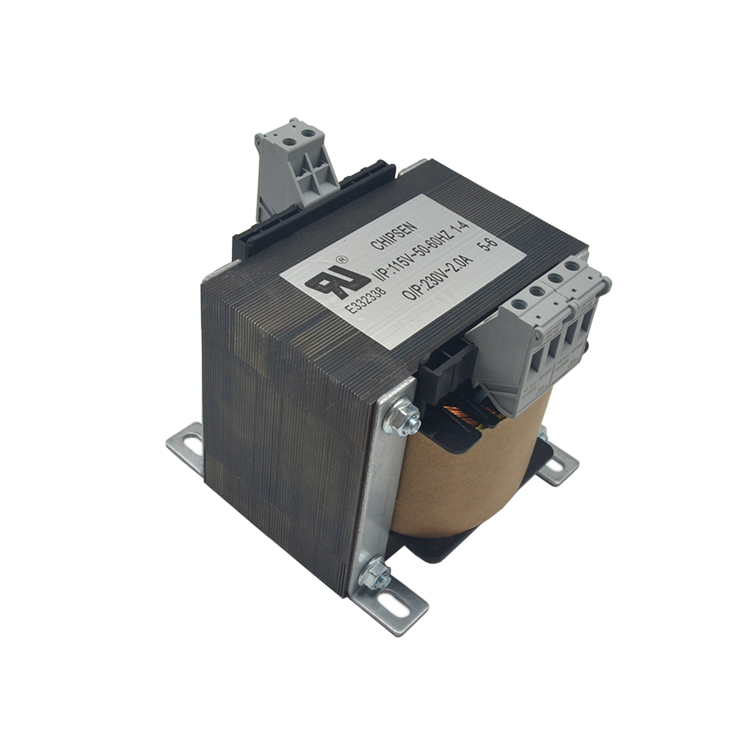

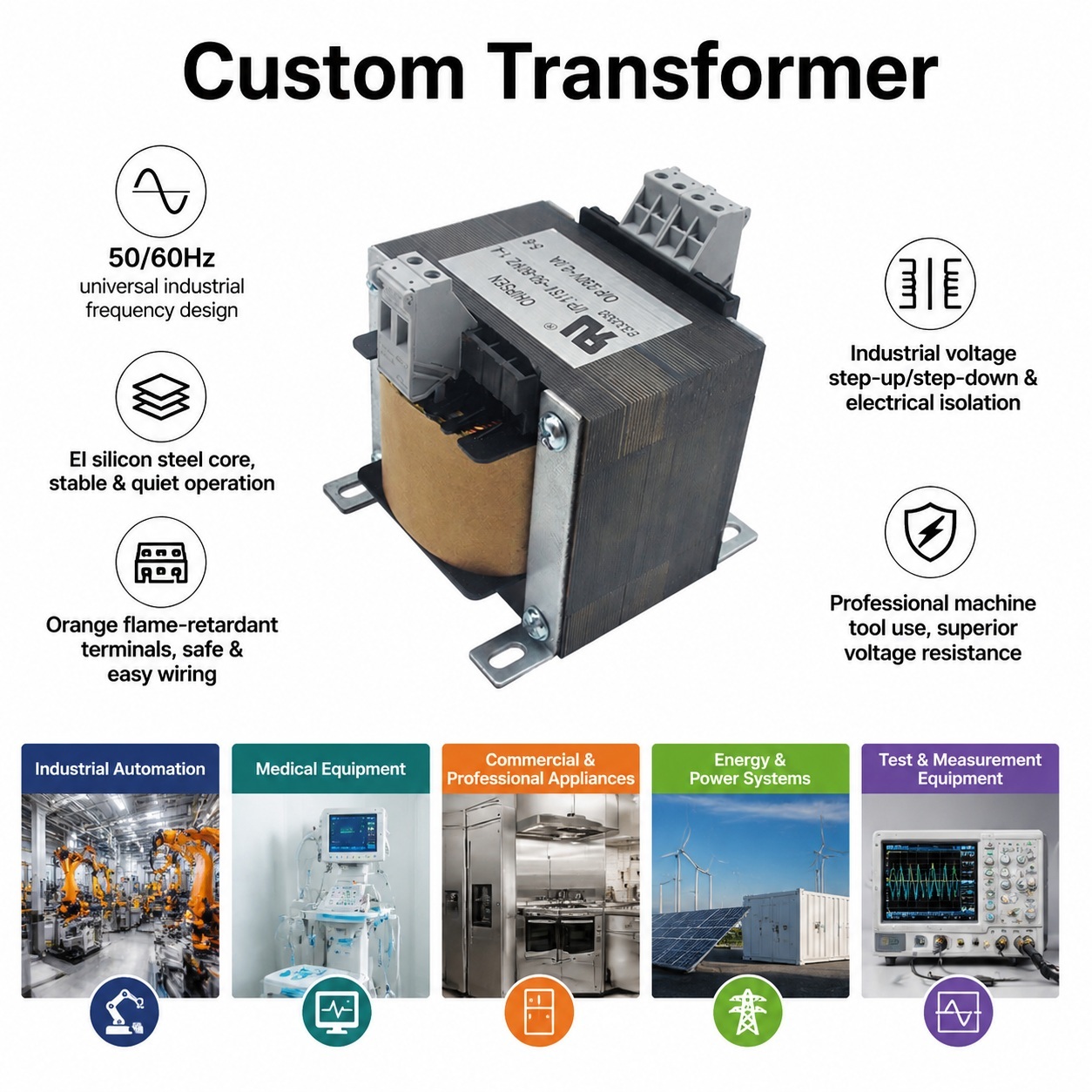

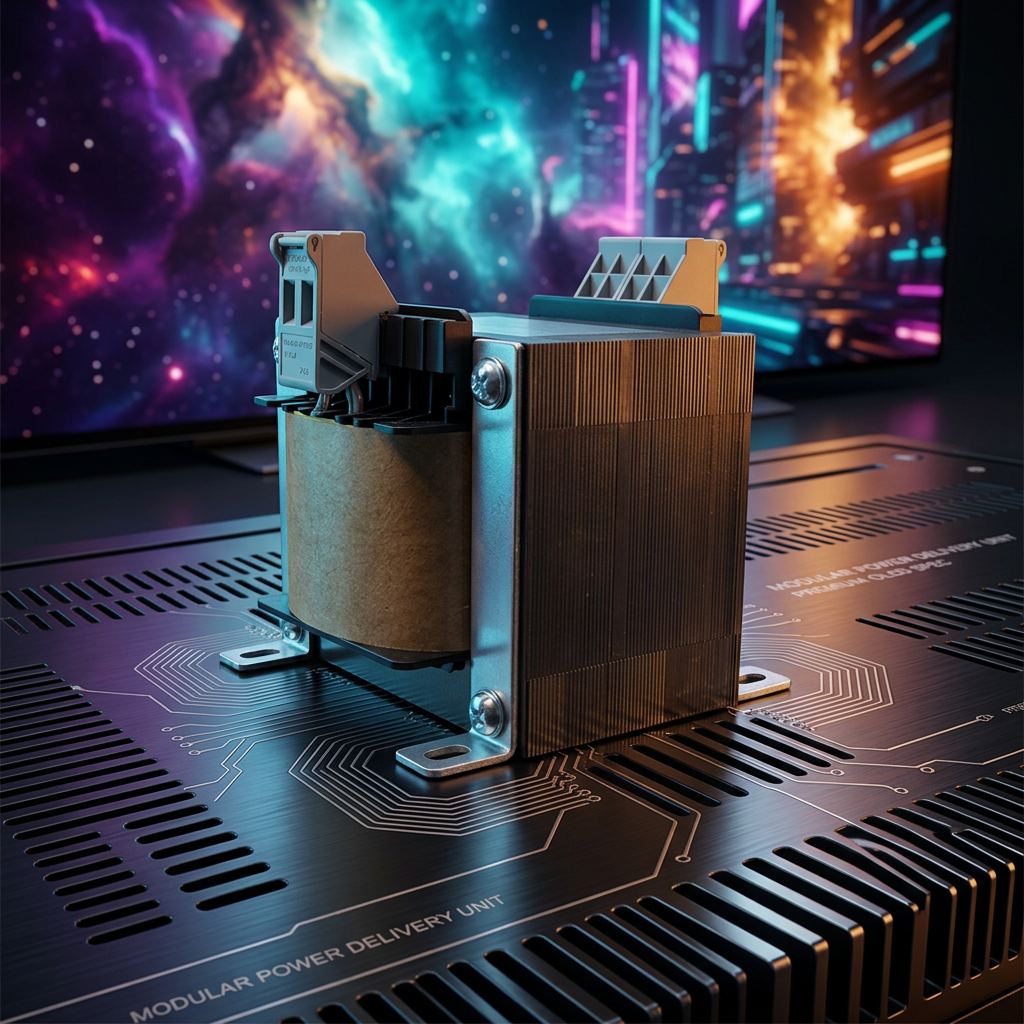

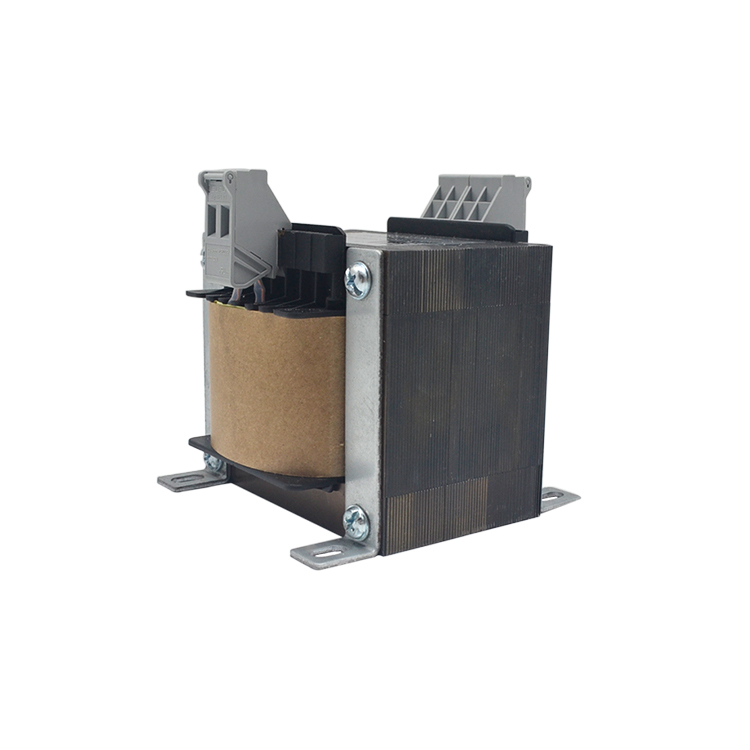

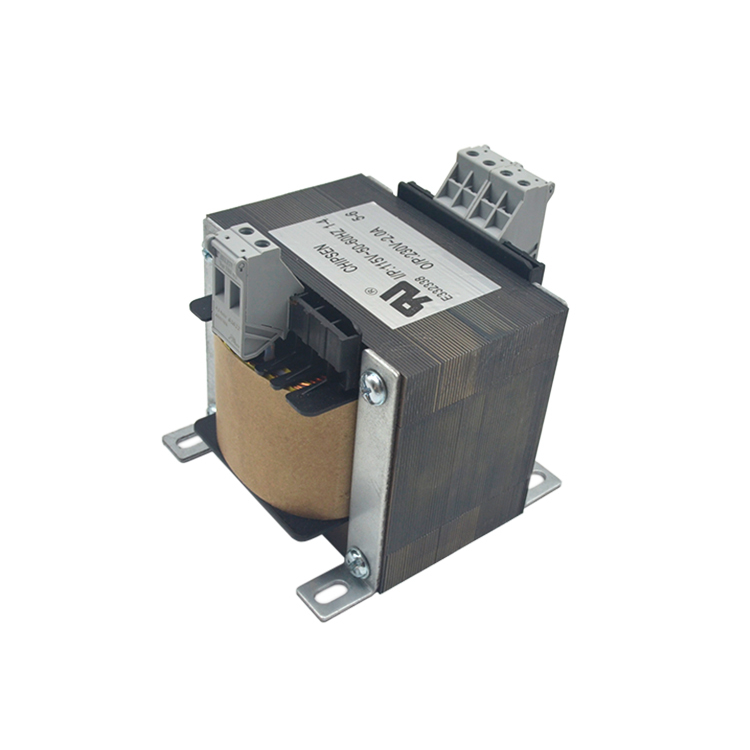

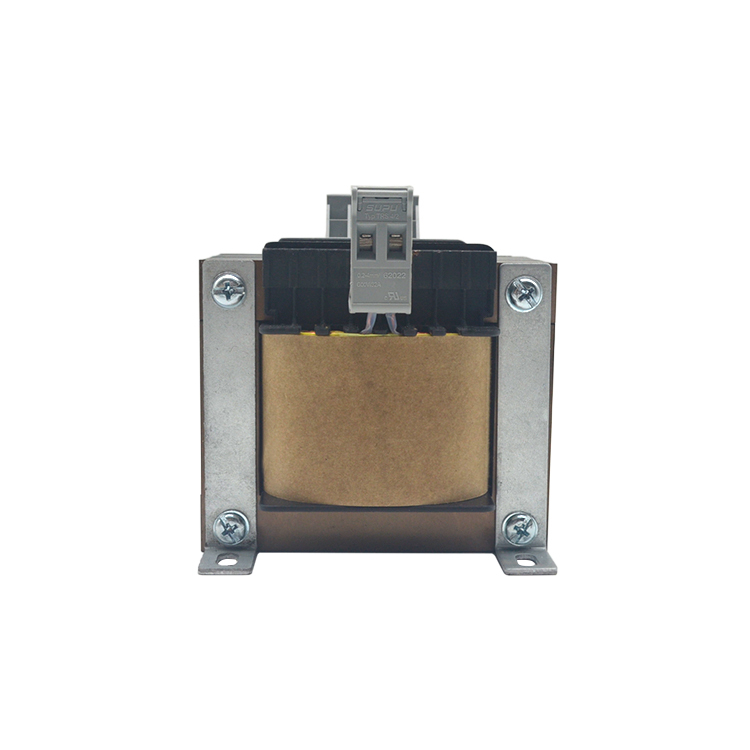

EI96 115V to 230V 2.0A Control Transformer Terminal Block
The EI96 control transformer is a single phase, low frequency isolation transformer built on an EI96 laminated silicon steel core, designed to supply and adapt the control circuits of industrial machinery. This version is configured as a step-up unit: it takes a 115V AC 50/60Hz input and delivers a 230V AC output rated at 2.0A, giving a nominal output capacity of 460VA.
Product Specifications
Parameter Specification
Product Type Single phase low frequency control transformer, EI laminated core, open frame
Core Size Code EI96
Configuration Step-up isolation transformer, 115V input to 230V output
Input Voltage 115 V AC, terminals 1-4
Operating Frequency 50 / 60 Hz
Output Voltage 230 V AC, terminals 5-6
Output Current 2.0 A
Nominal Capacity 460 VA
Core Material Cold-rolled silicon steel laminations, EI stacked construction
Winding Wire Full copper enamelled wire, Class 155 (F)
Insulation Class Class B (130°C) or Class F (155°C)
Dielectric Strength 3000 V AC for 1 minute, primary to secondary
Termination Screw terminal block with numbered terminals
Safety Approval Produced under UL file E332338
Key Features
  • Step-up design lets 230V equipment run from a 115V supply
  • Galvanic isolation protects operators and control electronics
  • Numbered screw terminal block for faster, neater panel wiring
  • Robust EI96 laminated core absorbs inrush current without saturating
  • Full copper windings keep temperature rise within 60K at full load
  • Varnish impregnation reduces mechanical hum
  • Continuous duty rating at 100% load
  • 100% electrical testing on every unit
Applications
  • Voltage adaptation for imported machinery
  • Machine tool control circuits (CNC, lathes, milling machines)
  • Industrial control cabinets (PLC supplies, relays, contactors)
  • Automation lines and robotic cells
  • HVAC and building services control panels
  • Elevator, escalator and hoist control systems
  • Welding, textile, printing and woodworking machinery
Company & Product Advantages
Manufacturing Excellence
  • Established in 2000 with 26 years of industry experience
  • 10,000 square metre factory with 8 complete production lines
  • 20-person R&D and 20-person QC teams
  • ISO 9001 and ISO 14001 certified
  • Annual export value of USD 42 million
Product Benefits
  • Built to customer specifications and drawings
  • Terminal block termination reduces installation labor
  • Generous core and copper sizing for thermal headroom
  • Produced under existing UL file E332338
  • Free engineering support during design phase
Frequently Asked Questions
How long does it take to get a sample?
3-5 working days for new custom samples; 1 day if the sample is in stock.
Can you change the input or output voltage?
Yes. We regularly produce control transformers with various voltage combinations including 110V, 120V, 208V, 220V, 240V, 380V, 415V inputs and 12V, 24V, 48V, 110V outputs.
Is this transformer UL approved?
This model is produced under UL file E332338. We also support CE, CB and RoHS documentation.
What is your normal lead time for mass production?
Standard lead time is 15-25 days after order confirmation, depending on quantity and complexity.
