Specifications
Temperature Range :
-40°C to 125°C
Place of Origin :
DongWan
Inductance :
10 µH
Model Number :
PFC40
Operating Voltage :
600 V
MOQ :
100
Delivery Time :
7-15 wark days
Frequency Range :
20 kHz to 100 kHz
Current Rating :
20 A
Payment Terms :
T/T
Saturation Current :
25 A
Tolerance :
±10%
Price :
1.69-9.98
Shielding :
Shielded
Dimensions :
30 x 30 x 20 mm
Supply Ability :
10000 pcs per day
Core Material :
Ferrite
Insulation Class :
Class B
Certification :
U/L cUL CE ISO9001:2015 IATF16949:2016 ROHS CQC
Weight :
50 g
Brand Name :
CHIPSEN
Mounting Type :
Through Hole
Packaging Details :
Small transformers: blister tray packaging + export cartons; Large transformers packed on wooden pallets. Custom packaging available upon request.
Dc Resistance (Dcr) :
5 mΩ
Description
High Saturation Current PFC Inductor for Solar Inverters and Industrial
Product Overview

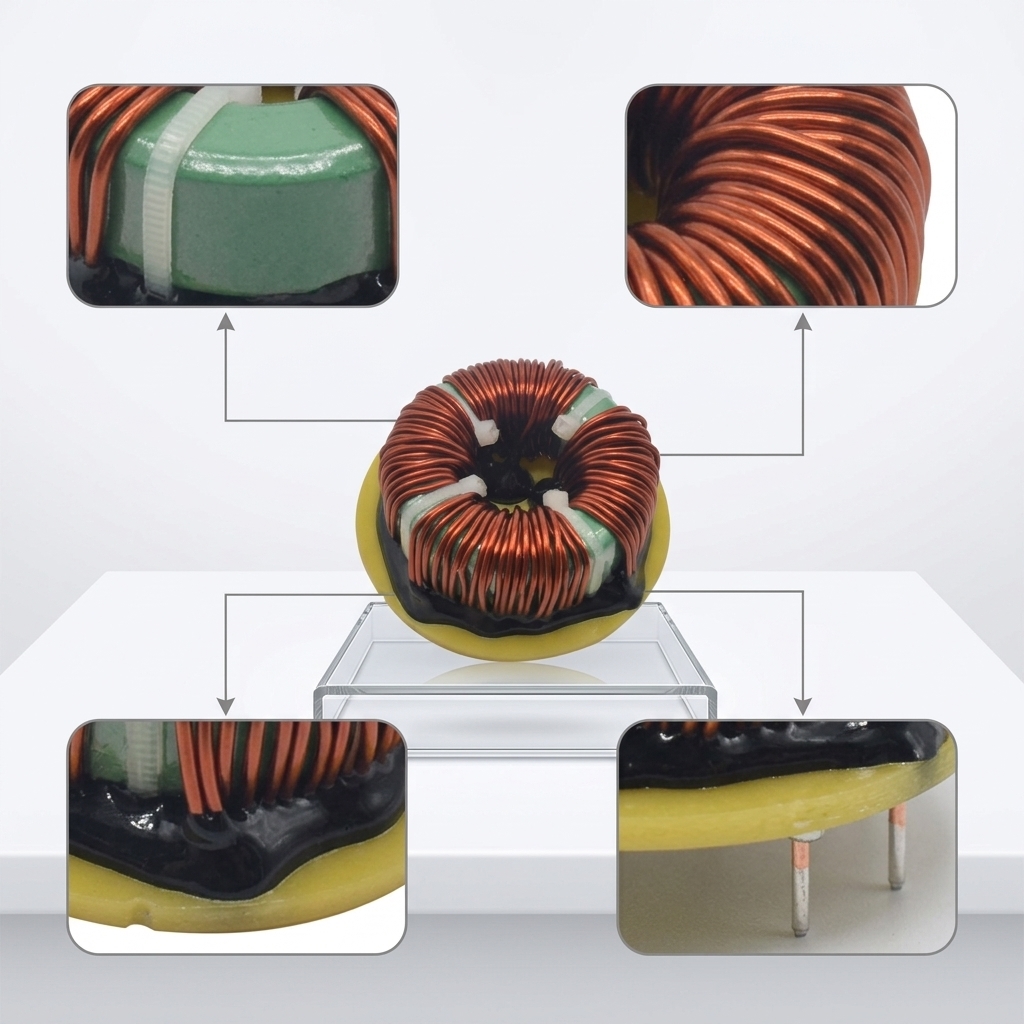

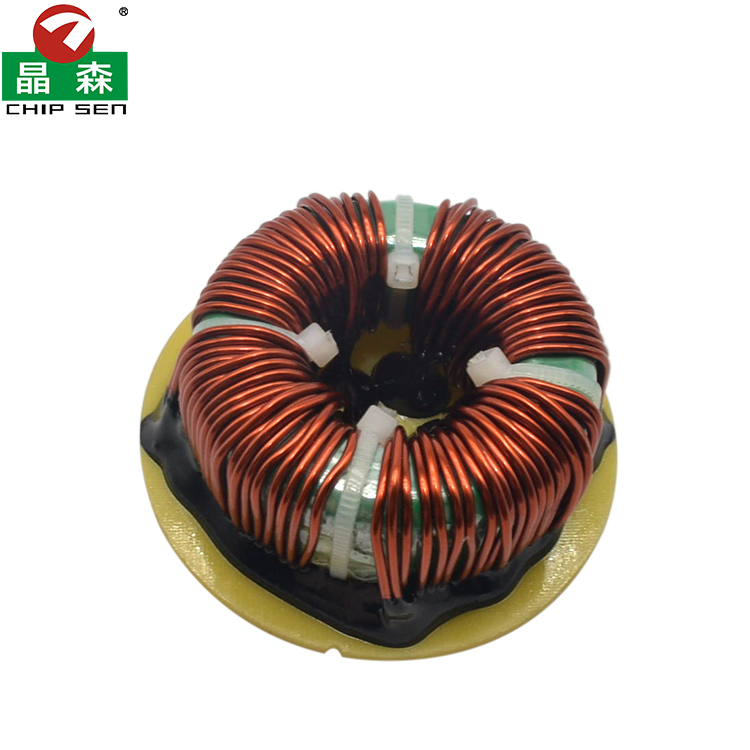

This PFC inductor features a toroidal core construction with segmented copper wire windings separated by white isolation spacers, protected by epoxy potting and mounted on a stable round base. It delivers high saturation current handling, low loss and reliable performance for power factor correction in demanding industrial and solar power applications.

Industry Application Typical Inductance (L) Current Range (Irms / Isat) Recommended Core & Wire Structure
Solar & ESS Inverters 200 µH – 1.5 mH 20 A – 100 A+ Sendust / Nanocrystalline Core + Flat Copper Wire / Busbar
EV Chargers & OBC 100 µH – 600 µH 15 A – 80 A High Flux / Kool Mμ Core + Multi-strand Litz Wire
Server & Telecom PSU 50 µH – 300 µH 10 A – 50 A Sendust / High Flux Core + Flat Wire Toroid
Industrial Drives & UPS 300 µH – 2.0 mH 10 A – 60 A Sendust / Iron Powder Core + Enameled Wire with Base Plate
High-End Appliances 500 µH – 3.0 mH 5 A – 25 A Sendust / Ferrite Core + Toroidal or UU Structure
Key Features
  • Toroidal core with segmented precision winding — low electromagnetic interference, stable inductance
  • White isolation spacers between winding sections — enhanced insulation and thermal management
  • Epoxy potting encapsulation — moisture, dust and vibration protection
  • Stable round base — reliable mounting and consistent performance
  • High saturation current — stable operation under heavy load conditions
Applications
  • Solar Inverters
  • Industrial Power Equipment
  • Switching Power Supplies
Product Images
High Saturation Current PFC Inductor For Solar Inverters And Industrial High Saturation Current PFC Inductor For Solar Inverters And Industrial
