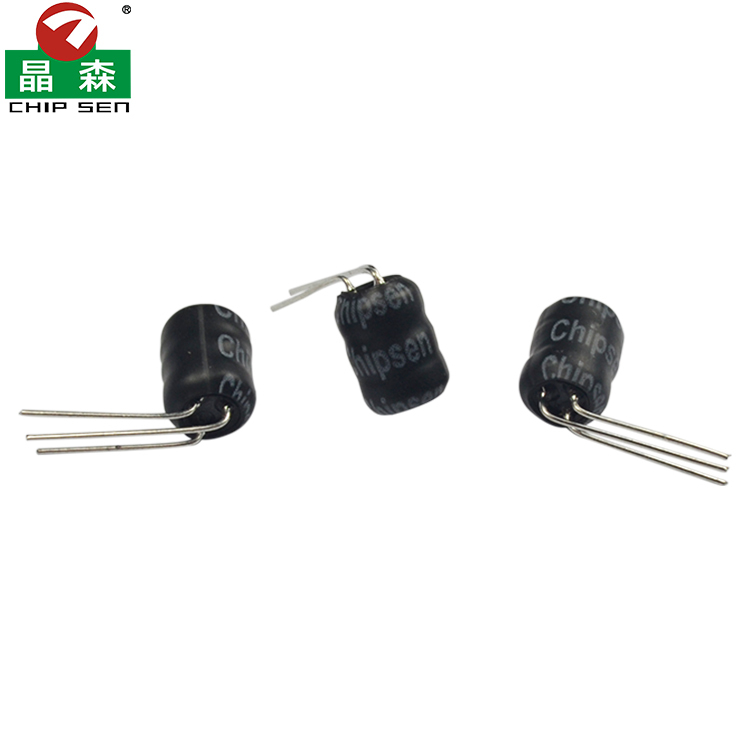

DR3W10 Radial Lead 3 Pin Drum Core Fixed Inductor For Power Supply
DR3W10 Radial Lead 3 Pin Drum Core Fixed Inductor For Power Supply
DR3W10 Radial Lead 3 Pin Drum Core Fixed Inductor For Power Supply
DR3W10 Radial Lead 3 Pin Drum Core Fixed Inductor For Power Supply
DR3W10 Radial Lead 3 Pin Drum Core Fixed Inductor For Power Supply
DR3W10 Radial Lead 3 Pin Drum Core Fixed Inductor For Power Supply
Specifications
Certification :
ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC
Core Material :
Ferrite DR Drum Core
Model Number :
DR3W10
Mounting Type :
Through Hole / Radial Leaded, 3 Pins
Price :
US$0.01-0.5
Pin Plating :
Tin-Plated, Oxidation Resistant
Supply Ability :
1,000,000pcs/month
Inductance Tolerance :
±10% / ±20% (Customizable)
MOQ :
1000pcs
Delivery Time :
3~4 Weeks
Encapsulation :
Black Epoxy Molded, Flame Retardant
Application :
SMPS, LED Driver, Charger, EMI Filter
Payment Terms :
T/T
Operating Temperature :
-40°C to +125°C
Place of Origin :
China
Winding Wire :
Enameled Copper Wire (TIW Available)
Brand Name :
Chipsen
Product Type :
Three-Leg Drum Core Power Inductor
Packaging Details :
Carton 1: 25.5 X 21.5 X 21cm. Carton 2: 43.5 x 24.5 x 21 cm
Customization :
OEM & ODM, MOQ 100 PCS, Sample in 7 Days
Description
DR3W10 Radial Lead 3-Pin Drum Core Fixed Inductor for Power Supply
Chipsen DR3W10 Three-Leg Drum Core Inductor — Radial Leaded Power Choke for Switching Power Supplies
The Chipsen DR3W10 is a three-leg (3-pin) radial leaded drum core power inductor built on a ferrite DR core and fully encapsulated in a black flame-retardant epoxy body. The extra third pin provides a rugged mechanical anchor on the PCB and allows tapped / dual-winding configurations, making the part a stable choice for switching power supplies, LED drivers, chargers, EMI input filters and home appliance control boards. Every unit is wound with enameled copper wire, terminated with tin-plated oxidation-resistant pins, and produced under an ISO9001:2015 / ISO14001:2015 / IATF16949 quality system with UL/cUL, RoHS, REACH and CQC compliance.
Key Features
  • Compact molded structure — epoxy-encapsulated drum core resists vibration, moisture and mechanical shock, keeping inductance stable in the field.
  • Oxidation-resistant pins — tin-plated leads with excellent solderability, suitable for wave soldering and long-term storage.
  • Three-leg mounting interface — the third pin locks the component to the board and supports tapped-winding designs.
  • Clear product identification — laser/printed marking on the body for fast line-side verification and traceability.
  • High efficiency & low noise — ferrite DR core with optimized winding lowers core loss, audible noise and EMI.
  • Wide operating range — designed for -40°C to +125°C ambient conditions.
  • Full customization — inductance, current rating, wire gauge (including TIW), core size and pin length made to your drawing.
Product Specifications
Product Name Three-Leg DR Drum Core Power Inductor
Model No. DR3W10
Brand Chipsen
Mounting Type Through Hole / Radial Leaded, 3 Pins
Core Material Ferrite DR Drum Core (MnZn / NiZn on request)
Winding Wire Enameled Copper Wire (TIW available)
Encapsulation Black Epoxy Molded, Flame Retardant
Pin Plating Tin-Plated, Oxidation Resistant
Inductance & Tolerance Customizable; ±10% / ±20% standard
Operating Temperature -40°C to +125°C
Certification ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, RoHS, REACH, CQC
MOQ 100 PCS
Lead Time Quotation within 3 days; samples within 7 days
Warranty 5 years (20 years for special industries)
Place of Origin China
Note: inductance, rated current, DCR and dimensions are built to order. Send us your electrical parameters or drawing and we will confirm the exact datasheet.
Typical Applications
  • Switching power supplies, adapters and battery chargers
  • LED lighting drivers and ballasts
  • EMI / differential-mode input filters and DC-DC converters
  • Home appliance and small motor control boards
  • Industrial instrumentation, security and communication equipment
Why Choose Chipsen
  • Engineering support: OEM & ODM development from schematic to qualified sample.
  • Fast response: quotation in 3 working days, samples in 7 working days.
  • Low entry barrier: MOQ from 100 pcs, ideal for pilot runs and R&D projects.
  • Audited quality system: ISO9001, ISO14001 and IATF16949 with 100% electrical testing before packing.
  • Long-term commitment: 5-year warranty, extended to 20 years for special industries.
Frequently Asked Questions
Q1: What is the advantage of a three-leg inductor over a standard two-pin type?
A: The third pin improves mechanical retention on the PCB and enables a tap or a second winding, so one component can handle both energy storage and an auxiliary/feedback function.
Q2: Can you produce the DR3W10 to my own inductance and current rating?
A: Yes. Inductance, rated current, DCR, wire type and pin length are all customizable — just send your specification or drawing.
Q3: What is the minimum order quantity and sample policy?
A: MOQ is 100 pcs. Samples are produced within 7 days after the specification is confirmed.
Q4: Are the parts RoHS and REACH compliant?
A: Yes. Materials are RoHS and REACH compliant, and UL/cUL recognized insulation systems are available on request.
Q5: How are the inductors packed for export?
A: Anti-static inner bags plus foam-protected export cartons, with moisture-proof packing available for sea freight.
