EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
Specifications
Certification :
ISO9001:2015, IATF16949:2016, U/L, ROHS, CQC, CE, cUL
Pin :
5+5 Pins
Model Number :
EPC19
Frequency :
100KHz - 500KHz
MOQ :
500pcs
Delivery Time :
7-14 work days (Negotiable)
Inductance Range :
100uH - 10mH
Payment Terms :
T/T
OEM/ODM :
acceptable
Price :
＄0.55-1.2/pieces,1000-10000pcs (Negotiable)
Solution :
One-stop solution
Supply Ability :
5000pcs
Supply type :
OEM / ODM
Brand Name :
Chipsen
Packaging Details :
EPC19 high frequency transformers: custom blister tray packaging + standard export cartons; bulk orders are securely packed on wooden pallets for stable transport. Custom packaging solutions available upon request.
Place of Origin :
China
Warranty :
5 years
Description
EPC19 High Efficiency High Frequency Transformer Custom SMPS Design
Product Overview

The EPC19 series represents our premier solution for designers seeking to maximize power efficiency within extremely height constrained environments. This low profile high frequency transformer utilizes a specialized EPC core geometry that provides a large core cross sectional area while maintaining a remarkably slim horizontal footprint. Engineered with high permeability manganese zinc ferrite and precision wound oxygen free copper wire, the EPC19 is the definitive heart for compact DC-DC converters and high end consumer adapters where every millimeter of PCB space matters.

Technical Specifications
Category Professional Technical Details
Model Introduction High performance EPC19 series ultra slim high frequency transformer
Core Materials Premium Mn-Zn Ferrite ensures low core loss and exceptional flux density
Winding Technology Precision 100 percent pure copper wire minimizes DCR and thermal rise
Safety Compliance Official UL E332338 recognition with full ROHS and CE certifications
Quality Systems Certified IATF 16949 2016 and ISO 9001 2015 production lines
Power Capability Supports efficient energy conversion for SMPS ranging from 10W to 60W
Custom Services Full OEM and ODM support with free professional engineering design
Technical Features
  • High grade manganese zinc ferrite core ensures superior magnetic efficiency and stability
  • Innovative horizontal low profile bobbin design specifically optimizes slim device layouts
  • Precision wound copper winding technology guarantees highly consistent electrical parameters
  • Advanced mylar tape insulation provides robust high voltage isolation safety
  • Ultra compact footprint enhances power density without compromising thermal performance
  • Environmentally resistant coating ensures long term reliability in industrial applications
Applications & Advantages

Perfectly optimized for low profile SMPS ultra thin adapters and DC-DC modules. The ideal choice for smart home controls LED drivers and portable communication gear. Extensively used in industrial automation sensors and high density server blades.

  • Certified quality standards simplify your final product international market access
  • Durable construction supports stable operation in temperature ranges from -40°C to 125°C
  • More than 20 years expertise ensures industry leading magnetic component reliability
  • Direct factory supply offers highly competitive pricing for strategic bulk procurement

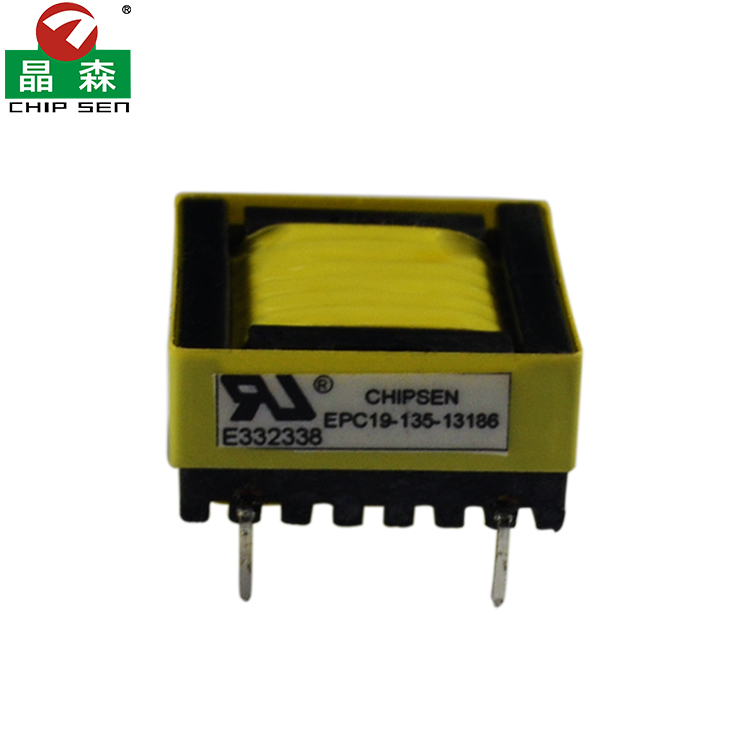

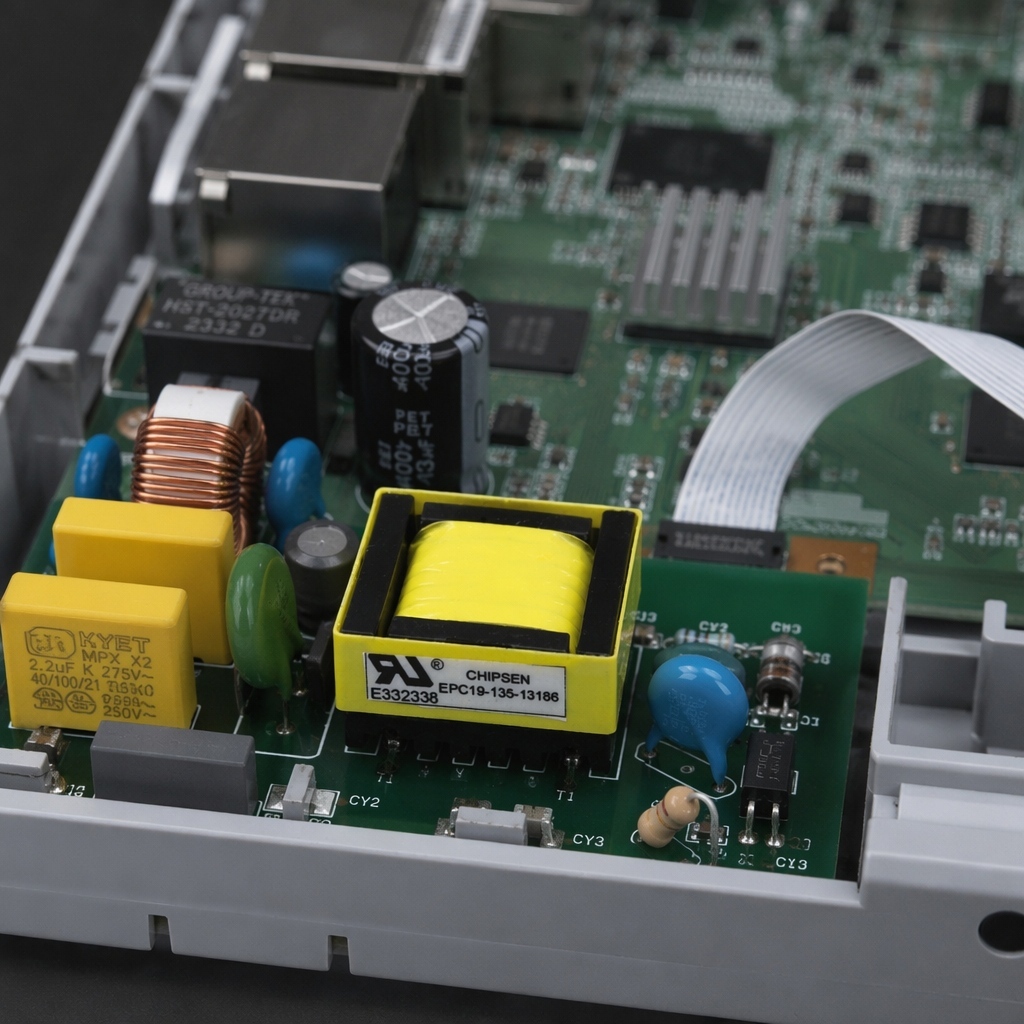

Product Images
EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS EPC19 High Efficiency High Power High Frequency Transformer Custom SMPS
