PQ32 Ferrite Core SMPS High Frequency Transformer Electronic Low Magnetic Loss

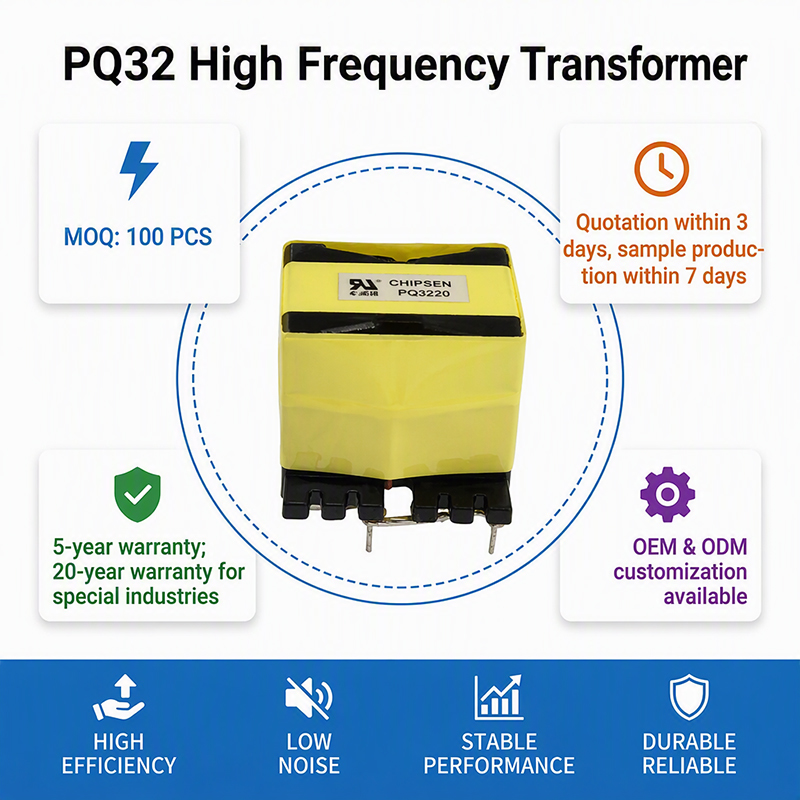

The CHIPSEN PQ3225-133-13122 is a high frequency switching power transformer built on a PQ32/25 ferrite core, engineered for compact SMPS designs that demand low core loss, stable inductance and reliable insulation. The PQ core geometry offers a large winding window with a small PCB footprint, delivering an excellent power-to-volume ratio and better thermal dissipation than conventional EE/EI structures. Every unit is manufactured with UL recognized materials (UL File No. E332338) and 100% electrically tested before shipment.

Key Features
  • Low magnetic loss - high-permeability PC40/PC44 grade ferrite core keeps core loss and temperature rise low at high switching frequency.
  • High power density - PQ32/25 core provides a large winding area within a compact footprint, ideal for space-limited power boards.
  • Reinforced insulation - margin tape + triple-layer insulation structure, high dielectric strength between primary and secondary.
  • Excellent EMI performance - optimized winding sequence and shielding layer reduce leakage inductance and common-mode noise.
  • Vertical pin-through-hole design - standard horizontal bobbin with robust copper-plated pins for stable soldering and easy automated assembly.
  • UL recognized components - UL File No. E332338; RoHS & REACH compliant materials.
  • Full customization - turns ratio, inductance, pin-out, bobbin and core material can all be built to your drawing or sample.
Technical Specifications
Brand CHIPSEN
Model No. PQ3225-133-13122
Product Type High frequency switching power transformer (SMPS transformer)
Core Type / Size PQ32/25 ferrite core
Core Material Mn-Zn soft ferrite (PC40 / PC44 or equivalent)
Bobbin Material Phenolic / PBT, UL94 V-0 flame retardant
Wire Enameled copper wire / TIW / Litz wire (optional)
Mounting Through-hole (THT), vertical type
Pin Configuration 5+5 pins or customised
Output Power Customised
Operating Frequency Customised
Primary Inductance (Lp) Customised
Leakage Inductance Customised
Turns Ratio Customised
Dielectric Strength 3000VAC / 60s, Pri-Sec or Customised
Insulation Resistance ≥100MΩ @500VDC or Customised
Operating Temperature -40°C ~ +125°C
Certification UL Recognized (File No. E332338), RoHS, REACH
Customization OEM / ODM accepted, built to drawing or sample
Note: electrical parameters are customizable. Please send us your schematic or specification sheet for an exact-match design.
Applications

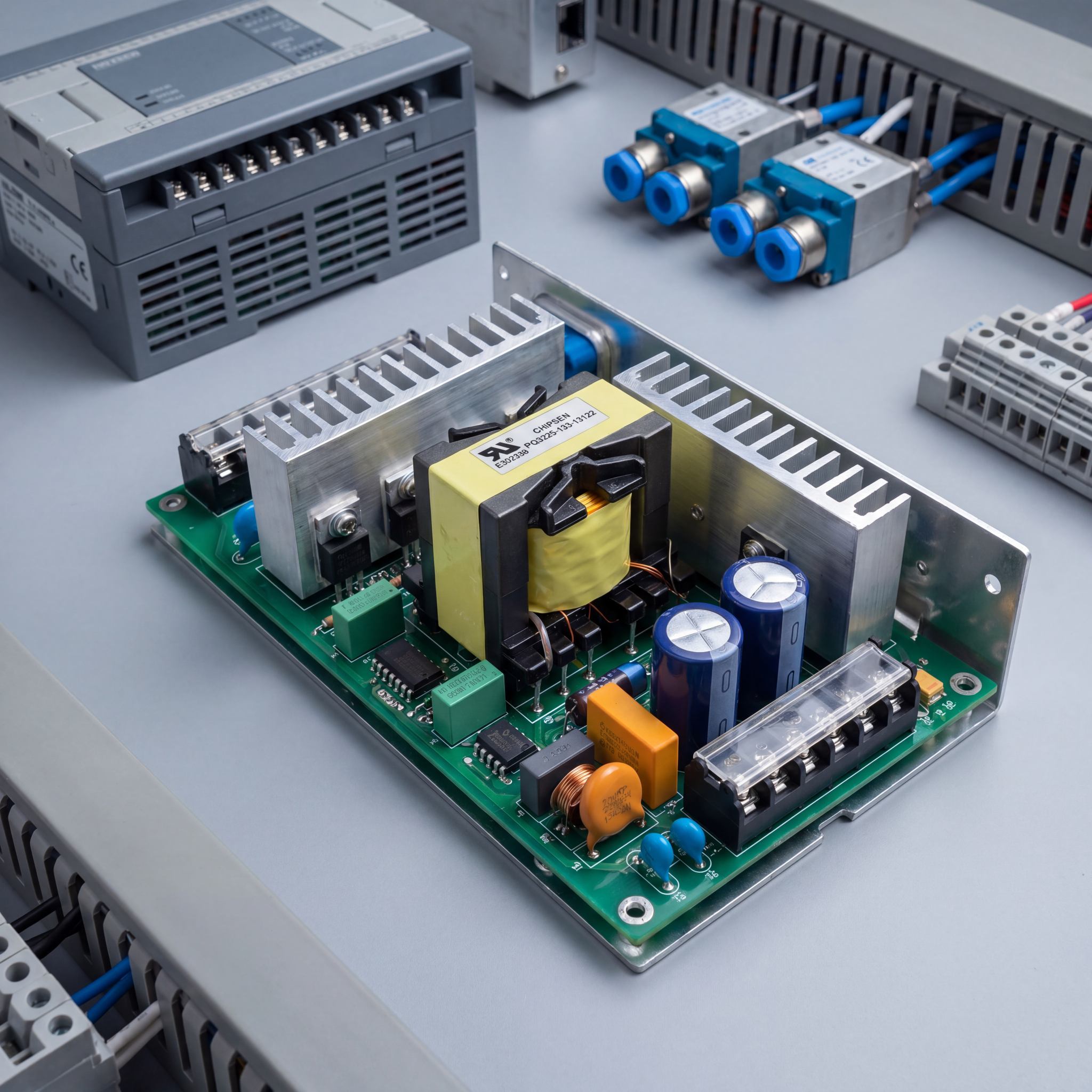

  • Switching mode power supplies (flyback / forward / LLC half-bridge topologies)
  • LED drivers and industrial power adapters
  • Solar PV inverters, energy storage systems and UPS
  • EV on-board chargers (OBC) and DC-DC converters
  • Communication equipment, servers and smart home appliances
  • Medical and instrumentation power modules
Why Choose Us
  • Engineering support - in-house R&D team helps you optimize turns ratio, temperature rise and EMI performance at the design-in stage.
  • Strict quality control - IQC on incoming ferrite cores and wire, 100% inductance / hi-pot / continuity testing, plus temperature-rise and burn-in verification.
  • Fast sampling - samples in 5-7 working days; mass production lead time 15-20 days depending on quantity.
  • Flexible MOQ - small trial orders accepted; MTO capacity supports large monthly volumes.
  • Reliable packing - anti-static tray / carton packing, moisture-proof, tested to withstand long-distance ocean and air transport.
FAQ
Q1: Can you make the transformer to my own drawing?
Yes. We are a manufacturer with full OEM/ODM capability. Send us your drawing, specification sheet or a physical sample and we will quote within 24 hours.
Q2: Do you provide samples?
Yes, samples are available for evaluation. Sample lead time is normally 5-7 working days.
Q3: What is your MOQ?
MOQ is flexible - trial orders are welcome, and pricing improves with volume. Please contact us for a tiered quotation.
Q4: Is the product certified?
The product is built with UL recognized materials under File No. E332338 and complies with RoHS and REACH requirements.
Q5: What are your payment and shipping terms?
T/T, L/C and other terms are negotiable. EXW, FOB, CIF and DDP are all supported; delivery by sea, air or express according to your urgency.
Need a PQ32 high frequency transformer for your project? Send us your specification today and get a free design proposal plus a quotation within 24 hours.
