Specifications
Application :
Switch Mode Power Supply (SMPS), LED Drivers, Battery Chargers
Place of Origin :
China
Outputvoltage :
5V - 48V DC
Model Number :
RM6
Compliancestandards :
UL, RoHS, CE
MOQ :
1K
Delivery Time :
7-14 work days (Negotiable)
Efficiency :
85% - 95%
Mountingtype :
PCB Mount
Payment Terms :
T/T
Operatingfrequency :
20kHz - 100kHz
Productname :
High Frequency Flyback Transformer
Insulationclass :
Class B / Class F
Price :
＄8.5-11.8/pieces
Inputvoltage :
85V - 265V AC
Operatingtemperaturerange :
-40°C to +85°C
Supply Ability :
10000pcs
Powerrating :
10W - 100W
Windingtype :
Copper Wire
Brand Name :
CHIPSEN
Corematerial :
Ferrite
Isolationvoltage :
3000V AC
Certification :
UL/cUL Class B/F/H, VDE, CQC
Dimensions :
Varies (customizable)
Description
Compact Shielded RM6 High Frequency Transformer Low Loss Stable for DC Power

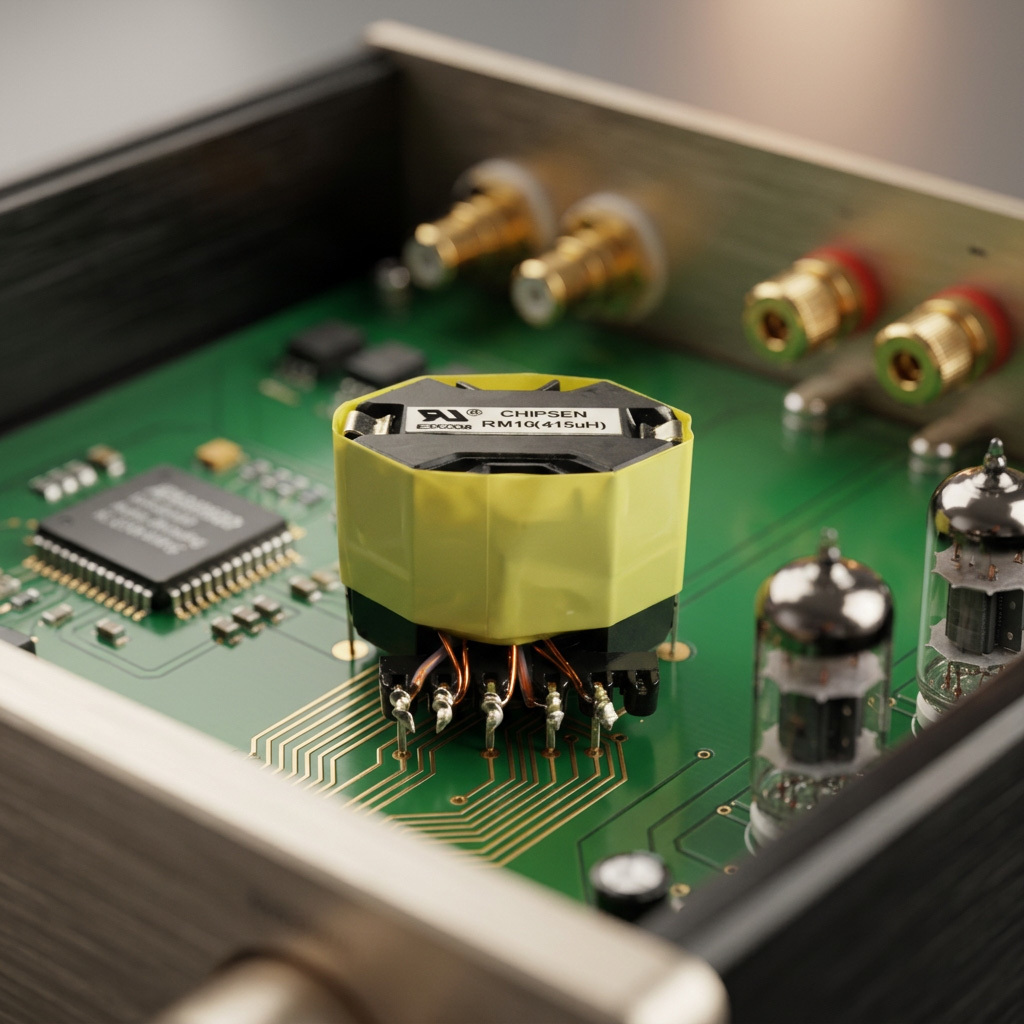

Product Overview

The RM6 is a compact ferrite core high frequency transformer platform designed for isolated power conversion, signal coupling, gate drive, and auxiliary power circuits. Its enclosed RM core geometry provides improved magnetic shielding and a compact PCB footprint.

The transformer features an RM ferrite core, insulated bobbin, multiple through-hole pins, copper windings, and external insulation tape. Final performance parameters depend on converter topology, voltage waveform, switching frequency, duty cycle, insulation requirements, cooling conditions, and allowable temperature rise.

Industry Applications & Specifications
Industry and ApplicationTypical Operating ConditionsParameters PrioritizedCustomization Support
Industrial Control SystemsIsolated auxiliary DC-DC power supplyInput range, output voltage, isolation, regulation, temperature riseTurns ratio, inductance, pinout, insulation, mounting
Gate Drive Power SuppliesIsolated power for MOSFET/IGBT/SiC gate driversLow coupling capacitance, isolation voltage, regulation, multiple outputsWinding sequence, shielding, insulation, output configuration
Telecom EquipmentIsolated low power converter and communication powerEfficiency, compact size, EMI, DCR, continuous operationLow loss winding, footprint, pinout, frequency optimization
Medical ElectronicsIsolated auxiliary power and signal couplingLeakage current, dielectric strength, capacitance, traceabilityReinforced insulation, shielding, testing, documentation
Energy Storage SystemsBMS, PCS control board, and gate drive powerIsolation, reliability, temperature range, multiple outputsReinforced insulation, temperature materials, custom pinout
Customization Parameters
ParameterTypical ReferenceCustomization Status
Core PlatformRM6 ferrite core assemblyCustomizable
Magnetic MaterialMnZn ferrite selected by frequency, loss, temperatureCustomizable
Switching Frequency20 kHz to 500 kHzCustomer Specified
Power Range1 W to 30 W (depending on conditions)To Be Confirmed
Dielectric Strength1.5 kV AC to 5 kV ACCustomer Specified
Pin ConfigurationPin quantity, spacing, dimensions, assignmentCustomizable
Engineering Requirements
Required InformationEngineering Purpose
Transformer FunctionDistinguishes power conversion, gate drive, signal coupling
Converter TopologyDetermines magnetic and winding design
Input/Output Voltage & CurrentEstablishes turns ratio, conductor size, winding configuration
Switching Frequency & Duty CycleSupports material selection and flux density calculations
Isolation RequirementDetermines barriers, materials, creepage, clearance

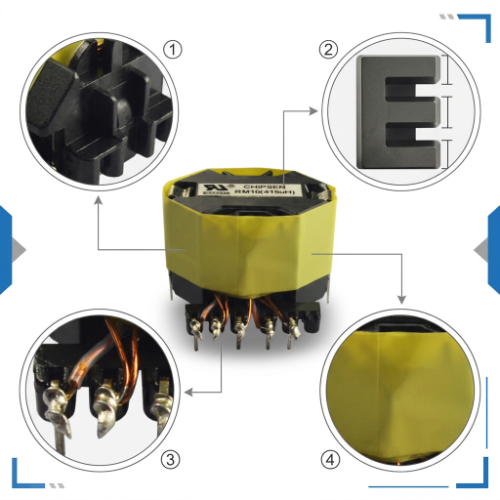

Product Construction
Construction ElementDescription
Magnetic CoreRM6 MnZn ferrite core selected by frequency and loss
BobbinInsulating coil former with through-hole PCB pins
Primary WindingCopper winding developed per input waveform and inductance
Secondary WindingsSingle or multiple isolated outputs per application
PCB PinsSolder terminals for electrical and mechanical connection
Key Characteristics
  • Compact RM6 ferrite core construction
  • Improved magnetic shielding through enclosed core geometry
  • Suitable for high frequency switching circuits
  • Low core loss magnetic material options
  • Custom turns ratio and winding configuration
  • Controlled primary and leakage inductance
  • Low interwinding capacitance design available
  • Single or multiple isolated outputs
  • Reinforced insulation options
  • Optional electrostatic shielding
  • Custom PCB pinout and mounting orientation
Applications
  • Industrial control power supplies
  • Isolated DC-DC converters
  • Flyback and forward converters
  • Gate drive transformers
  • IGBT/MOSFET/SiC gate driver power
  • Energy storage control boards
  • Solar inverter control circuits
  • Motor drive electronics
  • Telecom equipment
  • Medical electronic equipment
  • Test and measurement instruments
Quality Control
Inspection ItemInspection Purpose
Turns Ratio TestConfirms required primary and secondary relationship
Primary Inductance TestVerifies magnetizing inductance at specified condition
Leakage Inductance TestConfirms coupling and converter compatibility
Dielectric Strength TestVerifies specified isolation withstand capability
Temperature Rise TestConfirms thermal performance under agreed conditions
Why Choose Chipsen
  • RM6 high frequency transformer customization
  • Compact magnetically shielded ferrite construction
  • Engineering evaluation based on actual converter conditions
  • Drawing and sample based replacement development
  • Custom turns ratio, inductance, leakage, and DCR
  • Low capacitance winding options
  • Reinforced insulation and controlled creepage design
  • Custom PCB pinout, footprint, and mounting direction
  • Temperature rise and magnetic loss optimization
  • Prototype development and replacement evaluation
Frequently Asked Questions
What information is required to customize an RM6 transformer?
Please provide transformer function, converter topology, input voltage range, output voltage and current, switching frequency, duty cycle, target inductance, leakage limit, capacitance limit, isolation requirement, dimensions, PCB pinout, temperature conditions, and annual demand.
What power can an RM6 transformer handle?
Approximately 1 W to 30 W is a broad reference rather than guaranteed rating. Actual capacity depends on topology, frequency, flux density, winding design, cooling, ambient temperature, efficiency target, and allowable temperature rise.
What is the advantage of an RM core?
The enclosed RM core geometry provides a compact footprint and improved magnetic shielding. It also supports stable core positioning and controlled winding construction.
Can the RM6 be used for gate drive power?
Yes. It can provide isolated power for MOSFET, IGBT, and SiC gate driver circuits. Required isolation voltage, input waveform, output voltages, capacitance limit, and load current must be provided.
