Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
Specifications
Model Number :
MCT10
Frequency Response :
50Hz / 60Hz / 20kHz - 100kHz (High Frequency)
MOQ :
100PCS
Delivery Time :
15-22 wark days
Accuracy Class :
Class 0.1 / Class 0.2 / Class 0.5
Certification :
UL/cUL Class B/F/H, VDE, CQC
Turns Ratio :
1:1000 / 1:2000 (Current Output)
Payment Terms :
T/T
Price :
$0.2 - 0.5/ Piece,1000-10000pcs
Dielectric Strength :
3000V AC - 4000V AC / 1 min
Supply Ability :
5000 pcs per day
Place of Origin :
China
Core Material :
High-Permeability Nanocrystalline / Silicon Steel Disc
Brand Name :
CHIPSEN
Mounting Type :
PCB Pin Direct Solder / Flying Leads (Wire) / Terminal Block
Packaging Details :
Small transformers: blister tray packaging + export cartons; Large transformers packed on wooden pallets. Custom packaging available upon request.
Description
Precision MCT10 AC Current Transformer 10A 20A 50A 100A Input Voltage Output Current Sensor 3000V Isolation for Power Monitoring
1. Product Introduction

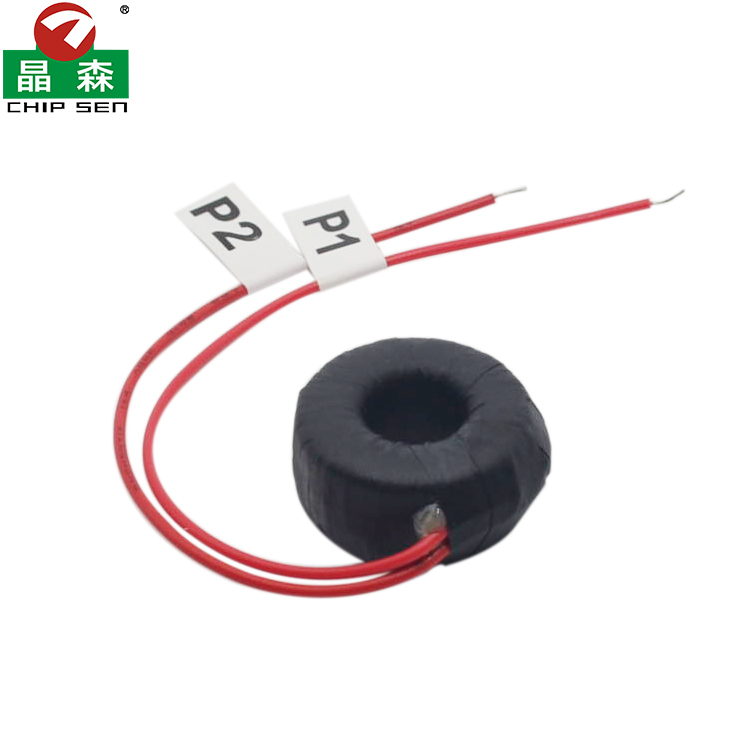

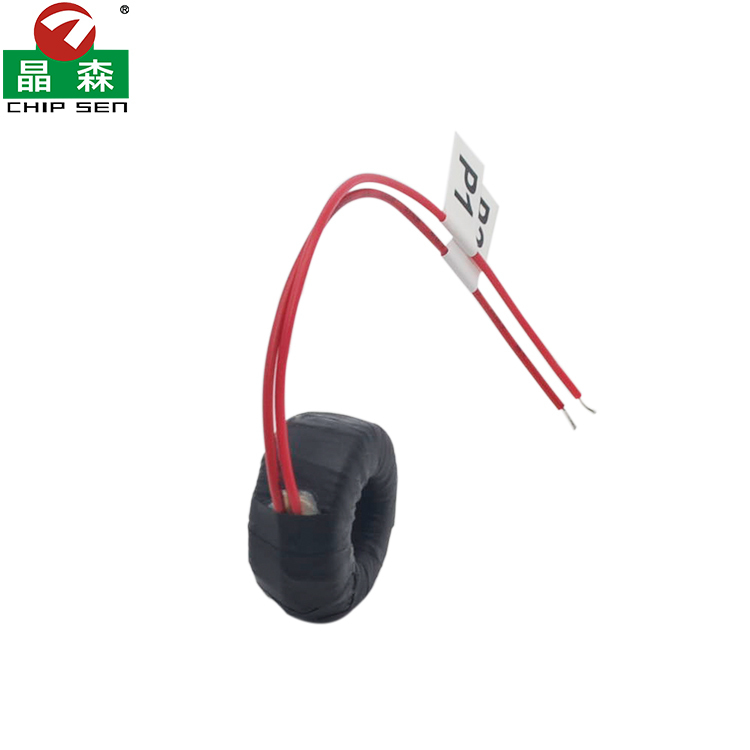

The MCT10 High-Precision Current Transformer is designed for accurate signal detection, energy monitoring, and overload protection in modern power systems. Built with premium magnetic core materials and a compact form factor, the MCT10 delivers reliable current measurement, low phase error, and stable performance across wide operating temperatures.

Parameter Category Specification Item Standard Technical Range Customizable Options (OEM / ODM)
Electrical Parameters Primary Rated Current (Ipn) 5A / 10A / 20A / 30A / 50A AC 1A - 100A AC (Fully Customizable)
Secondary Rated Output (Isn / Vout) 2.5mA / 5mA / 10mA AC 1mA - 100mA AC / Voltage Output (0.333V, 1V, 2.5V RMS)
Turns Ratio 1:1000 / 1:2000 / 1:2500 1:100 to 1:5000 Custom Turns Ratio
Accuracy Class Class 0.2 / Class 0.5 / Class 1.0 Class 0.1 / High Precision Calibration
Phase Angle Error ≤ 15' (Class 0.2) / ≤ 30' (Class 0.5) Tuned ≤ 10' for Smart Energy Metering
Linearity Range 5% - 120% Ipn 1% - 200% Ipn Extended Linearity
Rated Burden / Load Resistance 10 Ω / 20 Ω / 50 Ω Custom Burden Matching
Operating Frequency 50 Hz / 60 Hz 20 Hz - 100 kHz High Frequency Support
Mechanical Specifications Inner Diameter (ID / Hole Size) Ø 10.0 mm Ø 8.0 mm - Ø 12.0 mm
Outer Diameter (OD) 25.0 mm Custom Dimensions for Space Constraints
Height / Thickness 12.0 mm - 15.0 mm Tailored Enclosure Height
Lead Wire Length 150 mm Custom Length (50mm - 2000mm+)
Lead Wire Gauge & Type UL1015 AWG22 / AWG24 Red/Black Teflon / Silicone High-Temp Wire (AWG18 - AWG26)
Terminal & Connector Type Stripped and Tinned Ends (P1 / P2) JST, Molex, Dupont, Spade, Faston, Crimp Terminals
Encapsulation / Casing Material Black PBT Case / Epoxy Resin Custom Colors, Clear Epoxy, Flame Retardant Tape Wrap
Safety & Environmental Isolation Voltage / Dielectric Strength 3000V AC / 1 min (50Hz) Up to 4500V AC High Isolation
Insulation Resistance > 500 MΩ @ 500V DC > 1000 MΩ @ 1000V DC
2. Key Features

  • High Measurement Accuracy: Ensures low linear error and stable phase shift for precise current monitoring.

  • Compact & Easy Integration: PCB-mountable structure optimized for space-constrained circuit designs.

  • High Electrical Isolation: Strong dielectric strength ensuring safety and reliable noise immunity.

  • Wide Operating Range: Excellent temperature stability and linearity over broad load conditions.

  • Flame Retardant & Eco-Friendly: Encapsulated in high-grade insulation materials complying with global environmental standards.

3. Product Applications

  • Smart Energy & Power Grid: Smart meters, power distribution units (PDUs), and energy management systems.

  • Industrial Automation: Motor protection, inverter monitoring, and automated control equipment.

  • Renewable Energy Systems: Solar inverters, energy storage monitoring, and EV charging stations.

  • Commercial & Home Appliances: High-power power supplies, HVAC controls, and smart security systems.

4. Key Advantages
Company Advantages

  • Global Quality Standards: Fully certified with ISO9001, ISO14001, and IATF16949 quality management systems.

  • International Compliance: Products backed by UL/cUL (Class B/F/H), VDE, CB, CQC, RoHS, and REACH certifications.

  • Robust R&D & IP Portfolio: Supported by 36+ technical patents and specialized testing equipment (Agilent, HP, etc.) for reliable custom designs.

  • Global Supply Assurance: Multi-location manufacturing bases in Dongguan, Nanchang, and Vietnam ensure scalable capacity and risk-free delivery.

Product Advantages

  • Superior Thermal Stability: High-grade insulation and precision winding reduce core loss and heat generation.

  • Cost-Effective Performance: Automated production delivers consistent high yield and competitive pricing without compromising quality.

  • Fully Customizable: Flexible pinout configurations, turns ratios, and mounting options tailored to your circuit needs.

Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter Compact MCT10 Mini Current Transformer High Accuracy Wire Lead Sensor For Power Meter
