KS22 High Efficiency Differential Mode Choke with Ring Terminals
The KS22 series represents our premier heavy duty magnetic solution specifically engineered for high performance energy storage and differential mode noise suppression in high current environments. This robust toroidal choke utilizes an optimized high flux Sendust core to deliver exceptional saturation characteristics while maintaining superior thermal stability. Each unit is built with precision windings and reinforced lead wires featuring pre-pressed ring terminals to ensure the highest levels of electrical connection reliability and installation efficiency for your mission critical power circuits.
Technical Specifications
Parameter Name Specification Value
Rated Current Range 10A up to 60A dependent on specific wire configuration
Inductance Value 22uH up to 500uH per customized technical requirement
Operating Temperature Minus 40 to 125 degrees Celsius for industrial durability
Dielectric Strength 2500VAC winding to core isolation for 60 seconds duration
Product Features

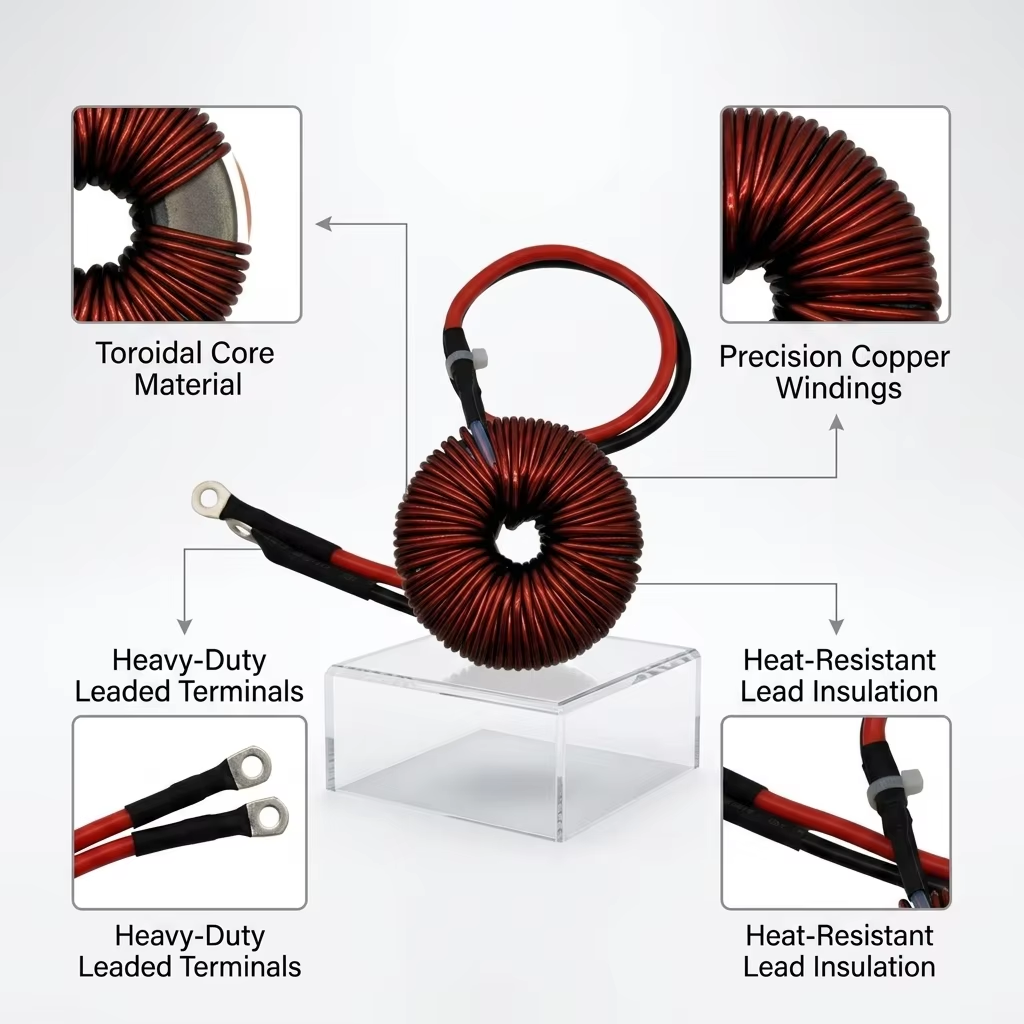

  • High grade magnetic core guarantees exceptional high saturation current levels
  • Precision wound multi strand copper wire significantly reduces DCR and heat
  • Toroidal core geometry design provides excellent self shielding and low leakage
  • Integrated industrial ring terminals ensure secure and fast field wiring on site
  • Advanced insulation sleeves protect connections against moisture and damage
  • Excellent DC bias characteristics maintain stable filtering performance under load
  • Robust construction supports stable long term operation in industrial zones
Application Areas
  • Solar Inverter Systems: Perfectly optimized for grid tie power conversion systems to handle high ripple currents and maintain maximum energy harvesting efficiency with minimal heat generation
  • EV Charging Infrastructure: The ideal choice for high speed electric vehicle charging stations requiring robust thermal stability and long term reliability under continuous high current load cycles
  • Industrial Power Modules: Extensively used in high power SMPS units to provide essential energy storage and differential mode noise suppression for mission critical telecommunication infrastructure
Product Advantages
  • High efficiency design significantly lowers energy consumption and reduces heat
  • Ready to install terminal design reduces assembly time and labor costs greatly
  • Certified quality standards simplify your final product international market access
  • Durable construction with high temperature materials ensures long term reliability
  • Direct factory supply offers highly competitive pricing for global strategic procurement
Company Information
Chipsen Electronics is a professional manufacturer specializing in high-performance transformers and magnetic components, with more than 26 years of in-depth manufacturing expertise. Founded in 2000, we operate 4 production bases covering over 7,200 square meters with 400+ skilled employees. Our certifications include ISO9001, ISO14001, IATF16949, UL Class B/F/H, CQC, RoHS and REACH, with 36+ utility patents supporting our technical capabilities.
Frequently Asked Questions
How long does it take to prepare samples?
3-5 days for new samples, 1 day for samples in stock.
How are samples shipped?
When customers cover freight costs, we help choose the most economical shipping method.
Do you provide technical support for customized products?
Yes, our strong R&D team provides free technical support for customizations in voltage, power, inductance, dimensions, core materials, and more.
Do you accept flexible minimum order quantities?
We support flexible MOQ based on your industry and product requirements. Please share your application areas and estimated annual usage.
Can you ensure proper packaging for large sea shipments?
Yes, we provide goods packed in strong export cartons, on wooden pallets, and shrink-wrapped for protection.
