Specifications
Model Number :
4R7
Tolerance :
±10%
Price :
0.11-0.69
Inductance :
1 µH
Test Standard :
AEC-Q200
Supply Ability :
1000000 pcs per day
Self Resonant Frequency (Srf) :
50 MHz
Quality Factor (Q) :
30
MOQ :
1000
Delivery Time :
7-15 wark days
Rated Current :
2 A
Warranty :
365days
Payment Terms :
T/T
Operating Temperature Range :
-40°C to +125°C
Storage Temperature :
-40°C to +125°C
Package Size :
0805
Shielding :
Shielded
Place of Origin :
DongWan
Description :
10uH(100) ±20% 0603 4.5A Power Inductor
Certification :
U/L cUL CE ISO9001:2015 IATF16949:2016 ROHS CQC
Application :
Power Supply, Filtering
Brand Name :
CHIPSEN
Dc Resistance (Dcr) :
0.05 Ω
Packaging Details :
Small transformers: blister tray packaging + export cartons; Large transformers packed on wooden pallets. Custom packaging available upon request.
Condition :
Original Product
Description

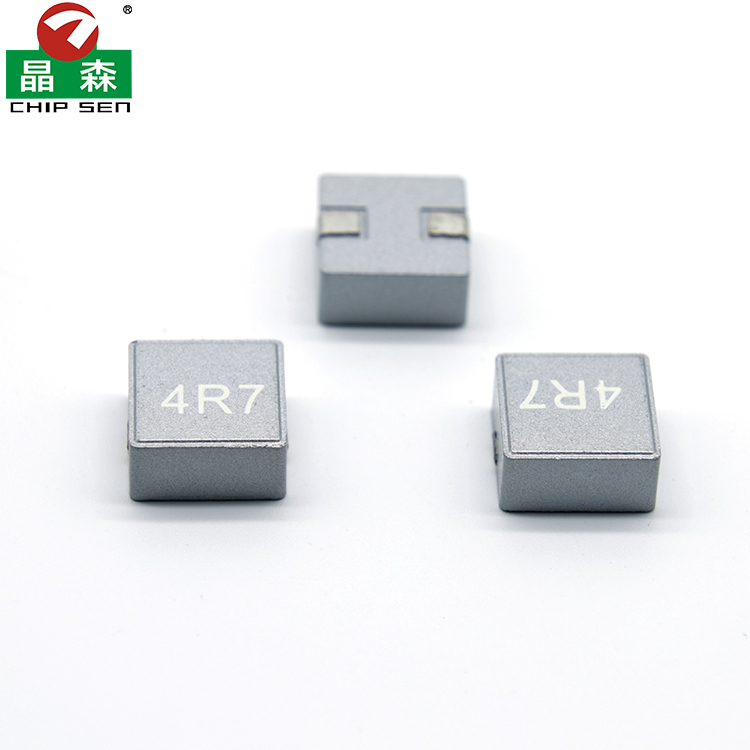

Miniature High Current SMD Inductor for Power Electronics and LED Lighting
Product Overview

This high power SMD inductor features a fully shielded molded construction that delivers high stability, low loss and high efficiency for demanding power applications. Designed for surface mount assembly, it supports high-volume production with consistent, reliable performance, while its miniature size saves valuable PCB space.

Industry Sector Package Size / Footprint Max DCR (mΩ) Isat / Irms Current (A) Operating Temp. & Standards
Consumer Electronics 0420 / 0530 / 0630
(4x4mm to 6x6mm)		 15 - 45 Isat: 3.5A - 7.0A
Irms: 3.0A - 5.5A		 -40°C to +125°C
RoHS, REACH
Industrial & Power Supplies 0630 / 1040 / 1265
(6x6mm to 12x12mm)		 6 - 18 Isat: 8.0A - 18.0A
Irms: 6.5A - 15.0A		 -40°C to +125°C
Lead-free High Reliability
Automotive Electronics 0630 / 1040 / 1265
(AEC-Q200 Grade 0/1)		 5 - 16 Isat: 9.0A - 22.0A
Irms: 7.5A - 18.0A		 -55°C to +155°C
AEC-Q200 Grade 0/1
Telecom & Servers 0840 / 1040 / 1265
(Ultra-Low Core Loss)		 4 - 12 Isat: 12.0A - 28.0A
Irms: 10.0A - 22.0A		 -40°C to +125°C
High Frequency Low Loss
Renewable Energy & Medical 1040 / 1265 / 1770
(Ultra-High Current)		 3 - 8 Isat: 20.0A - 40.0A
Irms: 16.0A - 30.0A		 -40°C to +125°C
ISO 13485 / High Reliability
Key Features
  • Fully shielded, anti-interference — stable and reliable in noisy environments
  • SMT surface mount, easy for mass production — efficient automated assembly
  • Low loss and high efficiency — clean, efficient power conversion
  • Molded construction, high stability — robust and consistent performance
  • High current capability in a miniature package — space-saving design
Technical Specifications

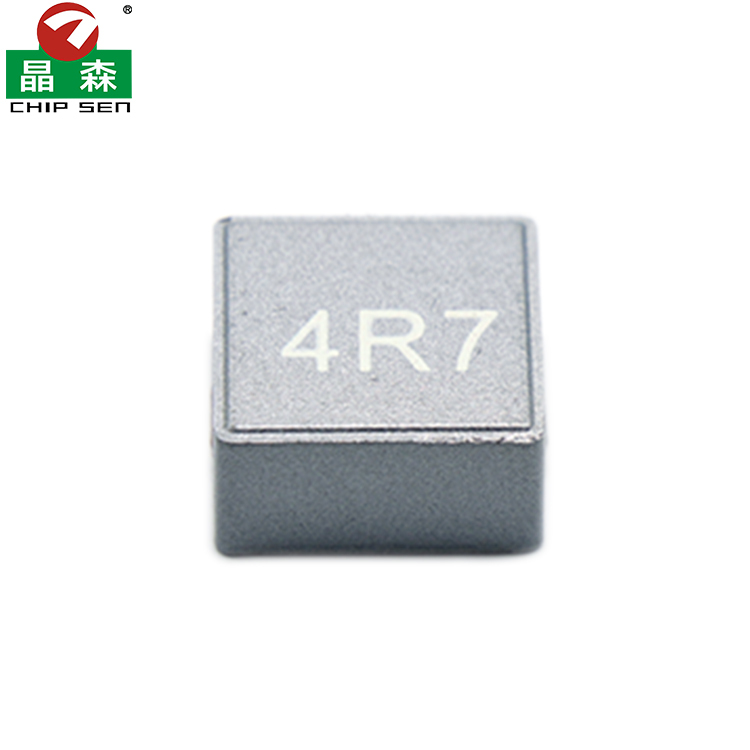

Inductance: 4R7 (4.7µH)
Applications
  • High Power LED Lighting Drivers
  • Industrial Control & IoT Devices
  • Automotive Electronics (AEC-Q200 Grade Molded Inductor)
  • Small PV Control Boards
  • Energy Storage Modules
Product Images
Miniature High Current SMD Inductor For Power Electronics And LED Lighting Miniature High Current SMD Inductor For Power Electronics And LED Lighting
