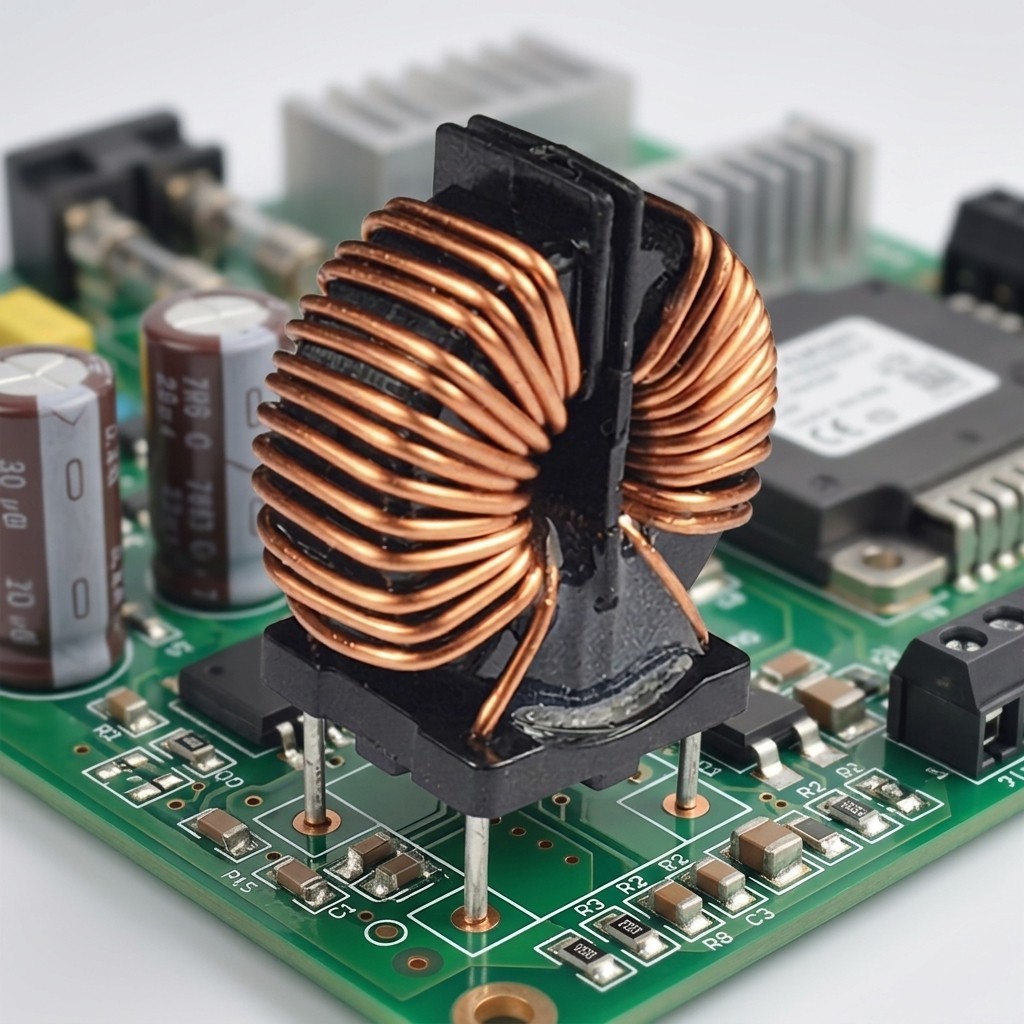

High Reliability Differential Inductor For Industrial Inverter And AI Server
High Reliability Differential Inductor For Industrial Inverter And AI Server
High Reliability Differential Inductor For Industrial Inverter And AI Server
High Reliability Differential Inductor For Industrial Inverter And AI Server
High Reliability Differential Inductor For Industrial Inverter And AI Server
High Reliability Differential Inductor For Industrial Inverter And AI Server
High Reliability Differential Inductor For Industrial Inverter And AI Server
High Reliability Differential Inductor For Industrial Inverter And AI Server
Specifications
Inductance Range :
1.0μH to 100mH
Model Number :
T28
Packaging Details :
Carton
Core Material :
High-grade Sendust / Iron Powder / Ferrite
MOQ :
3000 pcs
Delivery Time :
15-30 working days
Payment Terms :
T/T
Mounting Type :
Through Hole (Vertical)
Brand Name :
Chipsen
Operating Temperature :
-40°C to +125°C
Place of Origin :
China
Frequency Range :
10kHz to 1MHz
Price :
$0.58-$1.38
Supply Ability :
20K-50KK PCS/Month
Rated Current :
Up to 50A
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Description

1. Product Introduction

Chipsen's High-Performance Differential Inductor is engineered for demanding industrial environments where electromagnetic interference (EMI) suppression and power integrity are critical. Utilizing high-saturation toroidal cores and precision winding techniques, these inductors provide exceptional stability for high-current applications. Designed to mitigate differential mode noise, they are the ideal choice for modern industrial power conversion systems requiring long-term reliability and high efficiency.

2. Product Characteristics

Parameter Item Specifications & Ranges
Inductance Range 1.0μH to 100mH (Customizable)
Rated Current Up to 50A (Subject to model)
Operating Temperature -40°C to +125°C (Including self-heating)
Core Material High-grade Sendust / Iron Powder / Ferrite
DCR (Direct Current Resistance) Ultra-low resistance design for high efficiency
Hi-pot Test (Winding to Base) 1500VAC / 5mA / 60s
Insulation Class Class B (130°C), Class F (155°C) or Class H (180°C)
Mounting Type Vertical Through-hole with UL-certified Base
Frequency Range 10kHz to 1MHz
Compliance RoHS, REACH, UL / cUL Recognized
  • High Saturation Flux Density: Prevents core saturation even under peak load conditions.
  • Superior EMI Suppression: Effectively reduces high-frequency differential mode noise.
  • Thermal Stability: Rugged design optimized for continuous operation in harsh industrial heat.
  • Compact Footprint: Vertical base design saves valuable PCB space for high-density AI servers.

3. Product Applications

Industrial Inverters
Ensuring clean power output for motor controls.
PV Inverters (Solar)
Enhancing efficiency in renewable energy systems.
AI Servers & Data Centers
Critical power inductor for a DC-DC Buck-Boost converter.
EV Charging Stations
Reliable filtering for high-speed electric vehicle charging.
Telecommunication
Stabilizing power rails in 5G base station equipment.
Medical Equipment
High-precision filtering for sensitive diagnostic tools.

4. Advantages

Company Advantages:

  • 26 Years of Industrial Expertise: Established in 2000, specialized in high-end magnetic components.
  • Self-Owned 10,000㎡ Factory: Integrated manufacturing with 8 advanced production lines in Dongguan.
  • Strong R&D Team: 20+ experienced engineers providing custom ODM/OEM solutions.
  • Global Certification: ISO 9001, ISO 14001, UL, CE, and RoHS certified operations.

Product Advantages:

  • Industrial-Grade Reliability: Designed for 24/7 heavy-duty industrial cycles.
  • Optimized Winding: Precision copper winding significantly reduces DCR and energy loss.
  • Customizable Specs: Tailored inductance and current ratings to match your specific circuit topology.

5. FAQ

Q1: What is the lead time for mass production?
A: Generally, mass production takes 3-4 weeks after sample approval, depending on the order volume.

Q2: Can I request customized inductance for my project?
A: Yes, Chipsen specializes in custom solutions. Our engineers can adjust the core material and turns to meet your exact target value.

Q3: Do you provide free samples?
A: We can provide 2-3 free samples for standard specifications; customized samples may involve a small prototyping fee.

Q4: What payment methods do you support?
A: We support T/T (Bank Transfer), PayPal, and Western Union.

Q5: Are these inductors suitable for AI Server power modules?
A: Absolutely. They are widely used as power inductors for DC-DC Buck-Boost converters in AI server power filtering.

Q6: What is the MOQ for this differential inductor?
A: Our standard MOQ is 1,000 PCS, but we support smaller quantities for initial testing and pilot runs.

Q7: Can you help with EMI testing compliance?
A: While we provide the components, we can share technical data and material curves to help your engineers optimize EMI compliance.

Q8: Is your core material original and stable?
A: Yes, we only source high-grade cores from verified suppliers to ensure magnetic stability over time and temperature.
