SS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS FOR SPIRAL CONVEYOR SYSTEMS
SS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS FOR SPIRAL CONVEYOR SYSTEMS
Specifications
Brand Name :
Zhiyue
Model Number :
SS3873-K2400
Certification :
ISO9001
Place of Origin :
China
MOQ :
100mtrs
Price :
0-30usd
Payment Terms :
T/T LC DP WESTERNUNION MONERYGRAM
Supply Ability :
10000mtrs/M
Delivery Time :
5-30days
Packaging Details :
10ft/box
Structure :
Top Chain
Function :
Conveyor Chain
Standard or Nonstandard :
Standard
Material :
POM
Color :
brown and white
link chains :
ss304 or carbon steel
Condition :
100% new
Temperature Range :
0-140°F
Width :
1 inch
Operating Temperature :
0-80 degrees Celsius
Manufacturer :
Snap-on Inc.
Chain Pitch :
1.5 inches
Pitch :
2 inches
Application :
Conveyor Systems
Chain Material :
Polypropylene
Plate Width :
0.75 inches
Plate Shape :
Rectangular
Chain Link Size :
1.5 inches x 1 inch
Maximum Working Load :
200 lbs
Description

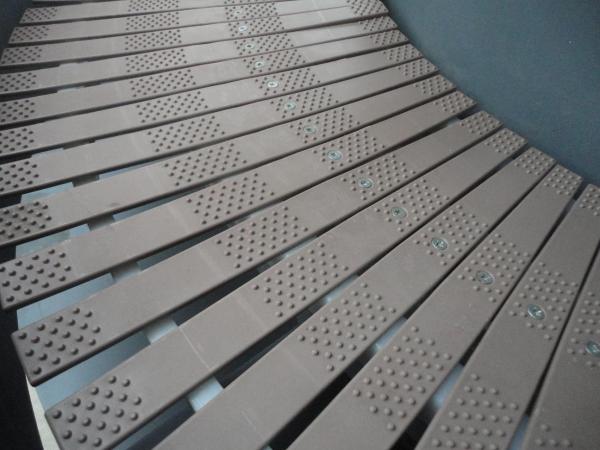

SS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS WITH SIDE GUIDE BEARINGS SPIRAL CONVEYOR TOP CHAINS

The chains 3873 is a side flexing snap-on chains designed with overlapping flights assembled on a special roller chain with extended pins. This is an advantage especially at high speeds,because it reduces the noise level. The snap on chains are very suitable for the food processing industry.

The overlapping flights are an advantage where personnel work at the conveyor e.g.for tray conveyors ect.

The overlapping flights ensure there are no vertical gaps between the flights. Thus nothing can get the caught between the flights.
SS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS FOR SPIRAL CONVEYOR SYSTEMS
SS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS FOR SPIRAL CONVEYOR SYSTEMSSS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS FOR SPIRAL CONVEYOR SYSTEMS
SS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS FOR SPIRAL CONVEYOR SYSTEMS

SS3873-K1200 SNAP ON PLASTIC PLATE TOP CHAINS FOR SPIRAL CONVEYOR SYSTEMS

snap on chains and flex chains.pdf
