Specifications
Brand Name :
SH
Model Number :
SW40E, SW40P
Certification :
ISO9001,CE
Place of Origin :
Shandong Province, China
MOQ :
1 SET Hydraulic Portable Sawmill
Price :
US $16,800 - 19,400 / Set
Payment Terms :
T/T, Western Union
Supply Ability :
500sets/year of Hydraulic Portable Sawmill
Delivery Time :
within 30 days
Packaging Details :
luo packing of Hydraulic Portable Sawmill
Name :
Hydraulic Portable Sawmill
Style :
Horizontal band saw
Saw Walking :
inverter
Bandsaw Blade Width :
40-80mm
Diameter Of Flywheels :
720mm
Productivity :
up to 60 m3/8h
Motor Power :
27 HP, 35HP
Max. sawing log diameter :
1000mm
Sawing Log Length :
6000mm
Operation :
PLC touching screen auto setworks
Applicable Industries :
Manufacturing Plant
Description

Product Description

Hydraulic Portable Sawmill

Hydraulic loading arm for automatic loading log onto the rail bed

Hydraulic chain rotatiaon for automatically rotates the logs

Hydraulic log stop pole prevents wood from falling when loading or flipping

Automatic return hook pushes wood boards back when the saw head returns

The touch screen uses Taiwan Weinview technologyandthe PLC uses Taiwan FATEK technology,to guarantee quality

Model SW40E
Max Sawing Wood Diameter 100mm(40")
Saw Wheel Diameter 720mm
Max Sawing Wood Thickness 300mm
Standard Sawing Wood Length 22feet
Engine Power 22KW Electric motor
Up/Down Electric ,1.1kw
Forward/Backward inverter ,1.1kw
Saw Blade Thickness 60mm
Hydraulic Log Loading Arms 1
Hydraulic Rotation Clamping 2
legs 8
Setting sawn sizes Touching screen+PLC
Hydraulic Chain Rotation 1
Hydraulic log stop pole 4
Hydraulic board moving roller 1
Hydraulic wood adjuster 1
Hydraulic pump station 1set, 5.5kw
Machine Length 9000mm
Weight 2800kg

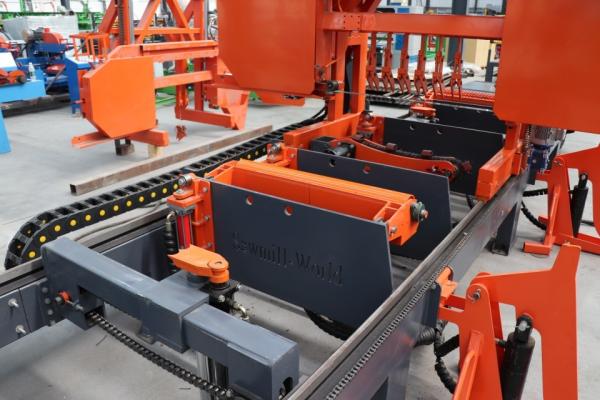

Detailed Images

Portable Sawmills and Wood Processing Equipment Hydraulic

Portable Sawmills and Wood Processing Equipment HydraulicPortable Sawmills and Wood Processing Equipment HydraulicPortable Sawmills and Wood Processing Equipment Hydraulic

Related Products

Model SW40P
Max Sawing Wood Diameter 100mm(40")
Saw Wheel Diameter 720mm
Max Sawing Wood Thickness 300mm
Standard Sawing Wood Length 6000mm
Engine Power 35HP Petrol engine
Up/Down Electric
Forward/Backward inverter
Saw Blade Thickness 60mm
Hydraulic Log Loading Arms 1
Hydraulic Rotation 2
legs 8
Setting sawn sizes Touching screen+PLC
Hydraulic Chain Rotation 1
Hydraulic log stop pole 4
Hydraulic board moving roller 1
Hydraulic wood adjuster 1
Hydraulic pump station 1
Wheels for mobile usage 1
Machine Length 8000mm
Weight 2800kg
