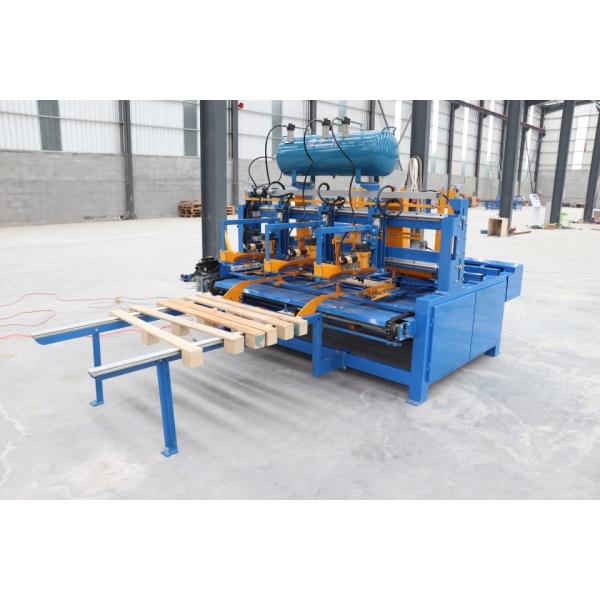

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity
Specifications
Brand Name :
SH
Model Number :
AEPN-1300, SHDL-1300, PQ1300-4, etc
Certification :
ISO9001, CE
Place of Origin :
Shandong Province, China
MOQ :
1 SET Wood Pallet Nailing Machine
Price :
US $4,800 - 21,500 / Set
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1000sets/year
Delivery Time :
within 15 days
Packaging Details :
iron frame packings or luo packings
Name :
Wood Pallet Nailing Machine
Capacity :
50-80pallet /hour
Wood pallet length :
700-1300mm
Wood pallet width :
800-1300mm
Working mode :
Automatic feeding and stacking
Number of Coil Nail Guns :
3pcs or 4pcs
Air pressure :
0.8MPA
After sales service :
video technical support ,free remote intelligent detection
Guarantee :
1 year
Machine painting :
Plastic spraying to avoid rusty
Description

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

Short Description (Meta Description)

Maximize your facility's throughput with our Automatic EPAL Wood Pallet Production Line. Capable of producing 50-80 pallets per hour, this fully integrated system handles pallet sizes from 700mm to 1300mm. Features advanced block nailing, automated branding, and precision chamfering to meet strict European standards.

Technical Features & Line Configuration

Our production line is an all-in-one solution designed for high-volume manufacturing of standard EPAL and custom wooden pallets.

Core Components & Workflow:

  1. Automatic Pallet Block Nailing Machine: High-precision placement and fastening of support blocks.

  2. Automatic Pallet Nailing Machine: Industrial-grade nailing for top and bottom decks.

  3. Pallet Rotary & Turning Machines: 180° and 90° flipping for dual-sided processing.

  4. Pallet Branding Machine: Automatic heat stamping of EPAL/EUR logos and IPPC markings.

  5. Pallet Corner Cutting & Chamfer Machine: Precision trimming for safety and easy handling.

  6. Pallet Palletizer & Conveyor System: Automated stacking and transport to minimize manual labor.

Specifications:

  • Production Capacity: 50 - 80 pallets / hour.

  • Pallet Length: 700mm – 1300mm.

  • Pallet Width: 800mm – 1300mm.

  • Compliance: Designed for EPAL European Standard production.

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine

Model SLDJ-1300-3
Block width 60-150mm
Board Length 600-1300mm
Nail gun CN70*3Stanley BOSTITCH Stitch CN70*3
Nailing method 1 nail, 2 nails, 3 nails, 4 nails, 5 nails
Air pressure 0.8MPA
Nail gun speed 4-8 s/time
Motor power 1.5KW Servomotor
Voltage 220V(Customized)
Operating mode Touch screen
Production mode Manual discharge/automatic pin pier

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

2,Automatic European pallet nailing machine

Model AEPN-1300
Wood pallet length 700-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 2kw Servo motor
Air pressure 0.8MPA
Nail gun speed 7 times /second.
Production effciency 1-2pcs /min
Number of nail guns 6P CN70,CN58
Weight 2000kg

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

3.Wood pallet branding machine

Model LY-4
Processing Size 800-1300mm
Branding material Copper/die steel
Air pressure 0.8MPA
Branding speed 4-8 s/time with pallet machine speed
Motor power 0.75KW*2
Number of branding 1-6 pcs
Control mod Pallet machine production line integrated supporting

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

4. Pallet angle cutting machine

Model PQ1300-4
Processing size 800-1300mm
Circular saw blade diameter 300mm
Motor power 2.2KW*4
Working mode Automatic feed,Automatic Angle cutting
Weight 350kg

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

5. Wooden pallet palletizer

Model MD-1300Z
Processing size 800-1300mm
Lift control Hydraulic
Palletizing speed 4-8 s/time
Model power 5.2KW

High-Efficiency EPAL European Standard Automatic Wood Pallet Production Line | 50-80 Pcs/h Capacity

Key Benefits for Buyers

  • Labor Reduction: Fully automated cycle from raw wood to stacked pallets requires minimal operators.

  • Versatility: Adjustable settings to switch between different pallet sizes (700-1300mm).

  • Consistent Quality: Machine-driven nailing and branding ensure every pallet meets export regulations.

  • Durable Engineering: Heavy-duty components designed for 24/7 industrial operation.
