CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor
Specifications
Max Sawing Log Length :
6 meters
Wood Grasp Mode :
Electric
Warranty :
12 months
Saw Wheel Diameter :
1250mm
Place of Origin :
Shandong, China
Brand Name :
SH
Packaging Details :
film wrapped container loading
Machine Weight :
12000 kgs
Max Sawing Log Diameter :
1500mm
Model :
MJ3212B-CNC5000
After-Sales Service :
Engineers available overseas, online support, video technical support
Saw Blade Size (L x W x T) :
9200 x 150 x 1.25mm
Carriage Length :
5 meters
Control System :
CNC Programmable
MOQ :
1 Set
Main Motor Power :
45KW
Rail Length :
18 meters
Price :
USD 15,000 - 40,000 / Set
Carriage Clamp Quantity :
4 Sets
Size Setting :
PLC Touch Screen with CNC
Certification :
ISO 9001:2015
Product Name :
CNC Hydraulic Vertical Sawmill Machine
Payment Terms :
T/T,Western Union
Supply Ability :
500 Sets per Year
Delivery Time :
30-40 working days after deposit
Carriage Drive :
Frequency Converter
Model Number :
MJ3212B-CNC5000
Description

CNC Hydraulic Vertical Sawmill Machine MJ3212B — Heavy-Duty Automation for High-Volume Production

The MJ3212B CNC hydraulic vertical sawmill machine represents the cutting edge of automated sawmill technology. Designed for high-volume commercial operations, this heavy-duty machine features a 1250mm saw wheel, 45KW main motor, and fully programmable CNC control system. It handles logs up to 1500mm in diameter and 6 meters in length with industrial-grade precision.

Advanced CNC Automation

Programmable Cutting Patterns

The integrated CNC system allows operators to pre-program complete cutting sequences for different log sizes. Save and recall cutting recipes to maximize yield from every log, reducing waste and increasing profitability.

Automated Log Handling

Four hydraulic clamping stakes with electric grasp mode secure logs firmly. The 5-meter carriage moves on 18-meter rails, providing stable support for the longest timber processing applications.

Heavy-Duty Construction

Cast-iron saw wheel assembly and reinforced steel frame deliver vibration-free operation at maximum capacity. Built to run continuous multi-shift production cycles in demanding industrial environments.

Frequency-Controlled Feed

Variable frequency drive on the carriage provides precise feed speed control from 0-30m/min. Optimize cutting parameters for hardwoods, softwoods, and exotic species with the touch of a button.

Technical Specifications

Saw Wheel Diameter 1250mm
Max Sawing Log Diameter 1500mm
Max Sawing Log Length 6 meters
Main Motor Power 45KW
Saw Blade Size (L x W x T) 9200 x 150 x 1.25mm
Carriage Clamp Quantity 4 Sets
Wood Grasp Mode Electric
Carriage Drive Frequency Converter
Size Setting PLC Touch Screen with CNC
Carriage Length 5 meters
Rail Length 18 meters
Machine Weight 12000 kgs

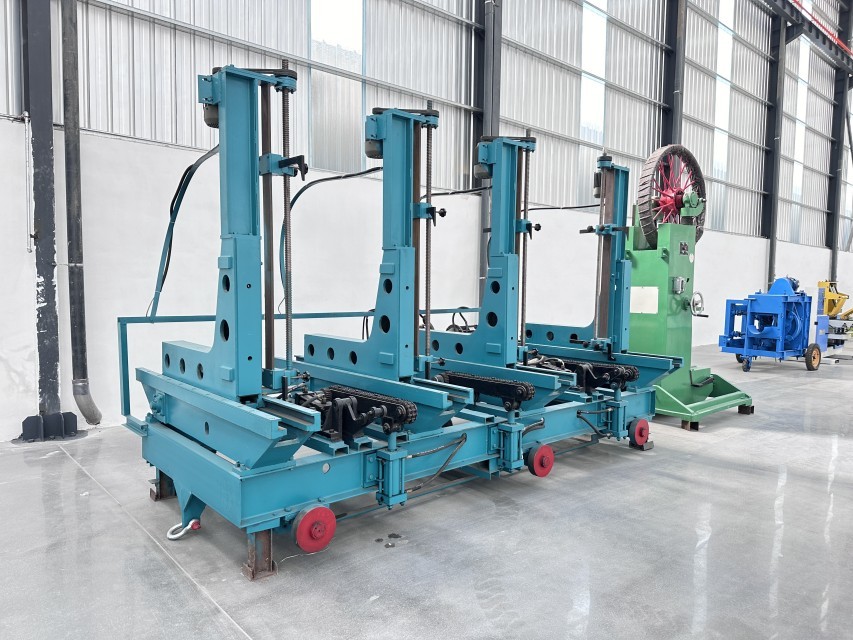

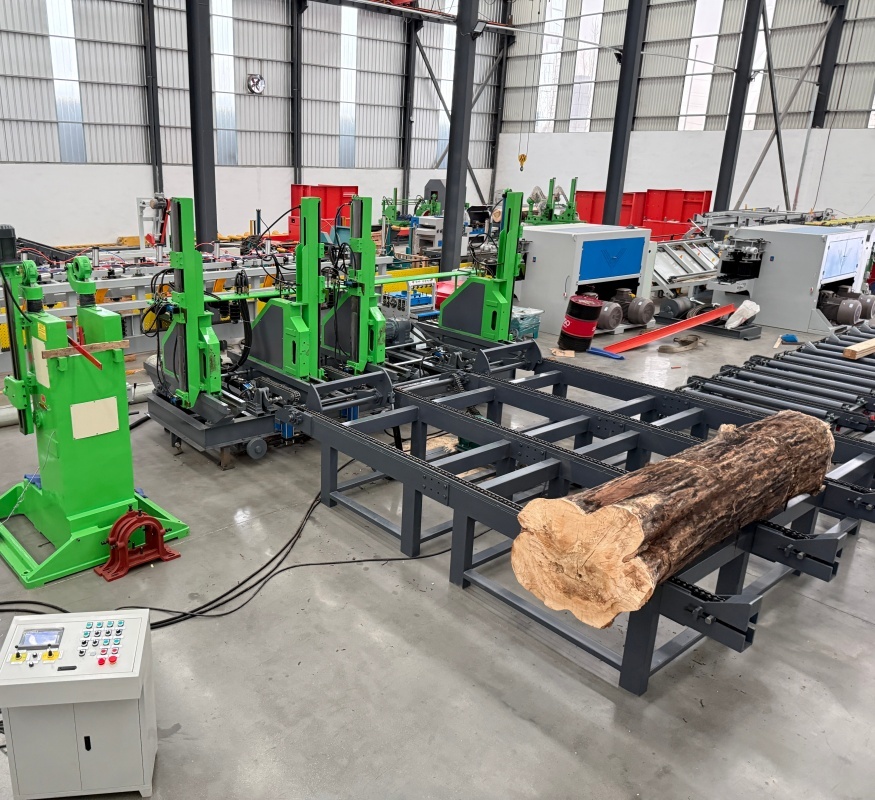

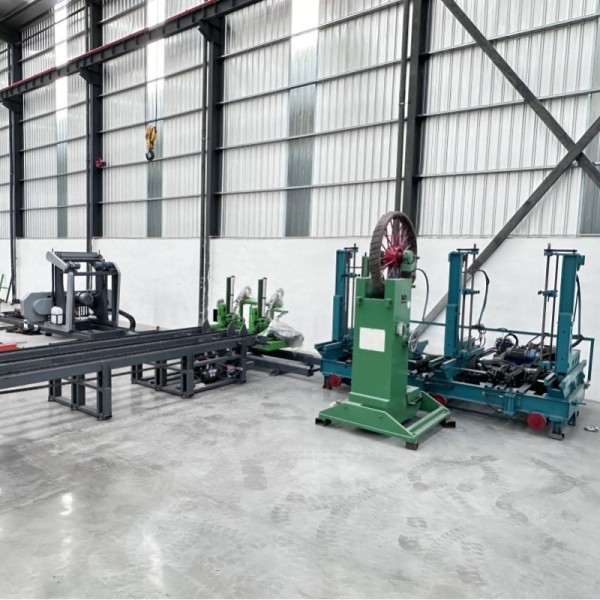

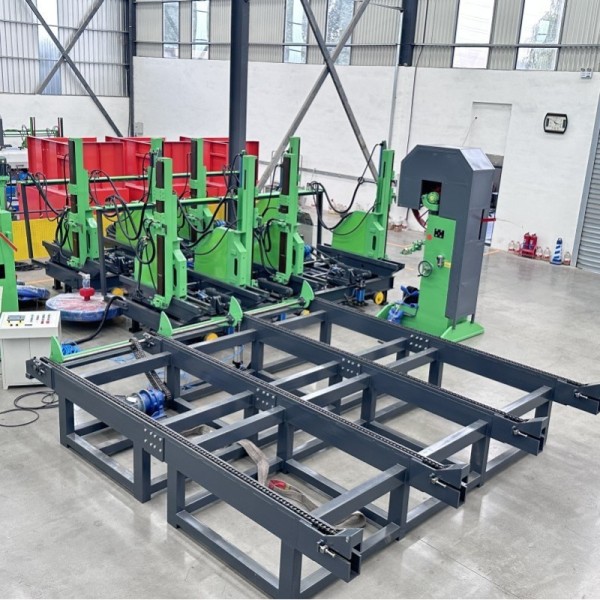

Detailed Photos

CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor

CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor

CNC Hydraulic Vertical Sawmill Machine MJ3212B Automatic Bandsaw with Log Carriage 1250mm Wheel 45KW Motor

Ideal Applications for This Hydraulic Sawmill

The MJ3212B CNC hydraulic sawmill machine is purpose-built for large-capacity sawmills processing hardwood logs for export-grade lumber, construction timber, railway sleepers, and custom furniture slabs. Its CNC automation makes it the preferred choice for operations seeking to scale production while maintaining consistent cut quality.

Investment Advantages

  • Maximum Yield Per Log: CNC optimization extracts the highest value from every log
  • Reduced Labor Costs: One operator can manage the entire cutting process
  • Superior Cut Finish: Heavy cast-iron assembly minimizes blade deflection
  • Rapid Payback: Higher throughput means faster return on capital investment
  • Global Support Network: Engineers available for overseas installation and training

Request a quotation today and discover how the MJ3212B CNC hydraulic vertical sawmill can transform your production capacity. Our specialists will prepare a tailored proposal for your specific log processing requirements.
