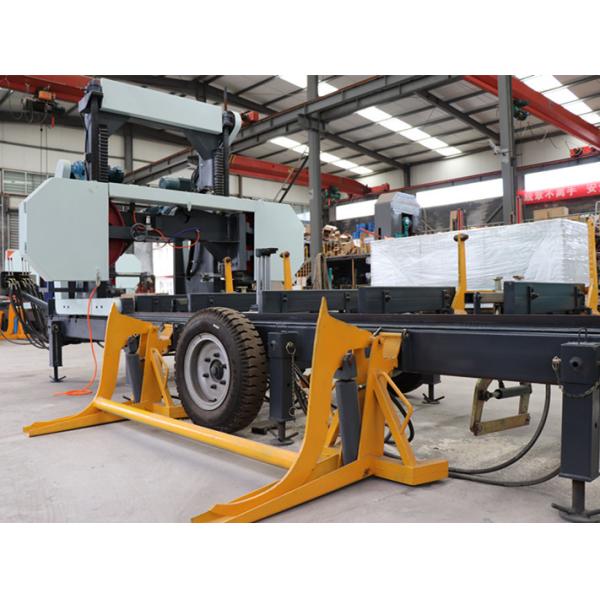

Log cutting band saw horizontal wood bandsaw mills, Hydraulic Automatic Band Saw Machine

Specifications

Place of Origin :

shandong province, China

Brand Name :

Certification :

ISO9001

Model Number :

MJH700E, MJH1000E

MOQ :

1 SET

Price :

USD15,900-25,000/SET

Packaging Details :

Container loading

Delivery Time :

within 15 days

Payment Terms :

T/T, L/C, Western Union

Supply Ability :

500Sets /year

Product name :

Hydraulic horizontal band saw for wood plank board

Condition :

New

Type :

Band Saw

Usage :

Wood Cutting

Style :

Horizontal

Voltage :

380v/3phase/50HZ or as customer needs

Power(W) :

22 kw - 30 kw

Warranty :

12 month

Cut max. wood diameter :

700mm - 1000mm

After-sales service provided :

Online support,Video technical support

Description

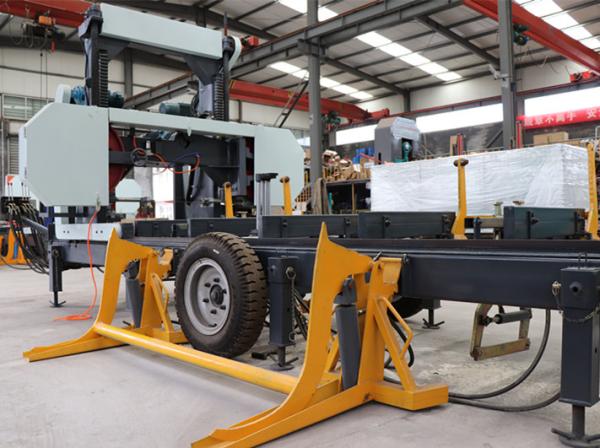

Hydraulic Band Sawmill Machine With Electric Motor

The max. cutting wood diameter can be customized as your requests

Model	MJH1000E	MJH700E
Max Sawing Wood Diameter	1000mm	700mm
Saw Wheel Diameter	700mm	700mm
Max Sawing Wood Thickness	300mm	300mm
Standard Sawing Wood Length	4000mm	4000mm
Electric Motor Power	30kw	22kw
Up/Down Electric Motor	1.5kw	1.5kw
Forward/backward Electric Motor	2.2kw	2.2kw
Saw Blade Width	27mm-75mm	27mm-75mm
Blade Tension	Hydraulic	Hydraulic
Machine Length	5800mm	5800mm
Weight	2500kg	2300kg

Standard Configuration
	Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable			Hydraulic Clamp *1 Secure and stabilize the log
	Hydraulic Wood Clamp*4 Secure and stabilize the log			Hydraulic vertical side supports *4 Secure and stabilize the log
	Hydraulic Log Loading Arm *1			Board automatic return hook
Optional parts:
		Mobile Wheels, 8 Adjustable Up/down legs	Hydraulic bi-directional Chain log turner*2 For max. log control
		Hydraulic plank roller axle x1	Extend The Rail Length

Related Saw Machine

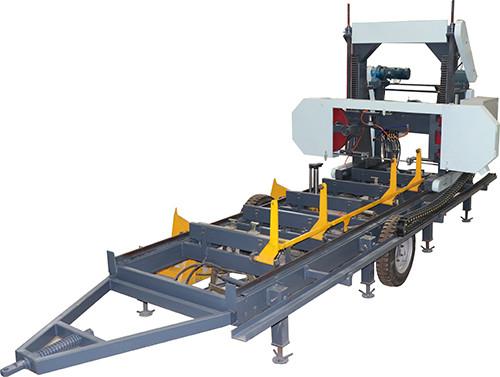

Portable Horizontal Band Sawmill (Electric Model )

Portable horizontal band saw which is easy to install and operate.
Finished with Carbide band saw blade for hard wood cutting .
The sawing kerf is small, reduce the waste to high output.
The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .

Specifications:
Model	MJ700E	MJ1000E	MJ1300E	MJ1600E
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawn Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Total Weight (KG)	1100	1100	1300	1500

Detailed Images of stanard model:

Sawing Effect
