MachineU > China Products > Machinery > Woodworking Machinery > Wood Saw Machines

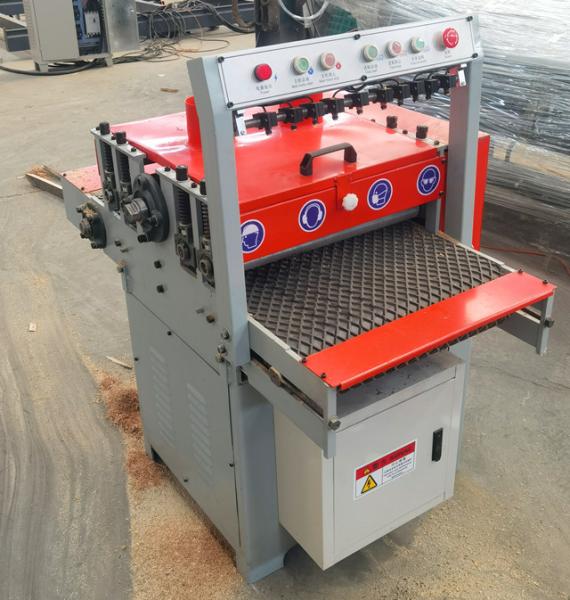

Multi Rip Saw Circular Saw Blade wood Cutting Machine, Multi Blade Circular Disc Saw Multi-blade Circular Saw

Specifications

Place of Origin :

Shandong Province, China

Brand Name :

Model Number :

BC380 BC400 BC500,BC150,BC200,BC300

Packaging Details :

iron frame pallet

Delivery Time :

within 15 days

Payment Terms :

T/T or L/C at sight, Western Union

Supply Ability :

100 Sets/month

Price :

US $1,200-4,500 / Set

Certification :

ISO9001

MOQ :

1 SET

Condition :

New

Voltage :

380V /3PH/50HZ

Warranty :

12 months

Usage :

Woodworking

Power :

7.5-18.5KW

Max. sawing width :

600mm

Max. sawiing thickness :

65mm

Description

Single Spindle Multiple Blades Rip Saw Machine

Model Specifications	BC150	BC200	BC300
Max. cutting width (mm)	150	200	300
Cutting thickness (mm)	2 to 65	2 to 65	2 to 65
Min cutting length (mm)	200	200	200
Circular blade diameter	250	250	250
Motor power (kw)	11	5	18.5
Press model	Pneumatic press roller
Feeding mode	Variable frequency feeding

Photos:
Multi Rip Saw Circular Saw Blade wood Cutting Machine, Multi Blade Circular Disc Saw Multi-blade Circular Saw

Easy Usage Multi Blades Ripsaw

Specifications	BC380	BC400	BC600
Max. cutting width (mm)	380	400	600
Cutting thickness (mm)	15 to 50	8 to 30	15 to 50
Min cutting length (mm)	450	450	450
Circular blade diameter	230x50	150x35	230x60
Motor power (kw)	7.5	4	18.5
Blade quantity (pcs)	1-5	2-5	2-10

Multi Rip Saw Circular Saw Blade wood Cutting Machine, Multi Blade Circular Disc Saw Multi-blade Circular Saw
Multi Blades Rip Saw
Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	230mm	230mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min
