Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
MJ3310-Z5000,MJ3310-Z3000, MJ3310-D5000, etc
MOQ :
1 SET
Price :
US $6,000 - 50,000 / Set
Packaging Details :
container loading
Delivery Time :
within 15 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1500sets/year
Name :
Vertical Band Saw
Condition :
New
Voltage :
380V/50Hz/3Phase
Style :
Vertical
Type :
Band Saw
Application :
wood working
Saw wheel diameter :
1000mm(40inch),1070mm
Max. sawing log diameter :
40'' or 1000mm
Log clamp :
Pneumatic
Log feeding :
Electrical or frequency
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Warranty :
1 Year
Description

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Technical Specifications:

Technical data MJ3310-DD3000 MJ3310-DD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 6850x125x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Manual Manual
Carriage walking/advance Electric Electric
Setting sawn size Electric Electric
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

Technical data MJ3310-ZD3000 MJ3310-ZD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 7400x150x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

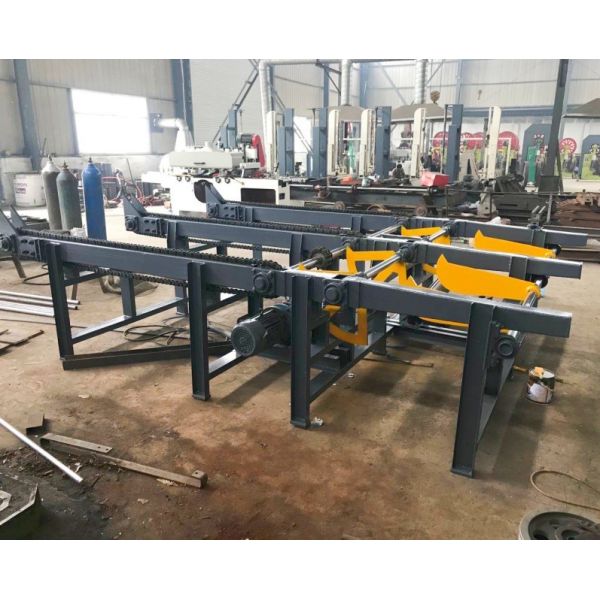

Optional -Log Loading deck

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

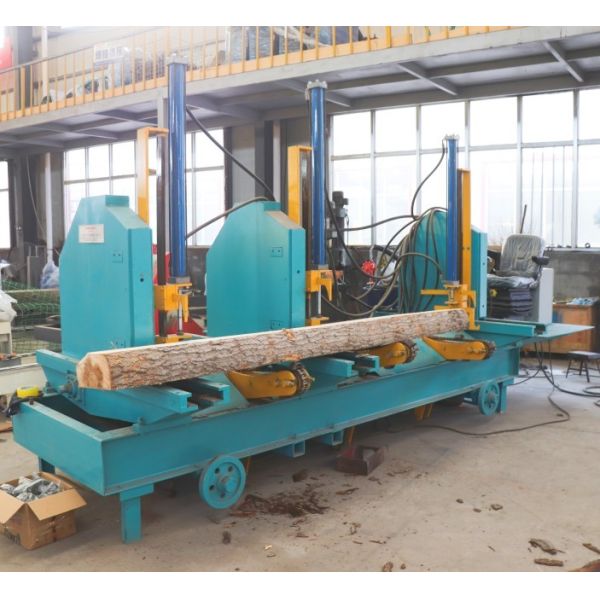

Optional -Hydraulic log carriage

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

Portable Horizontal Band Sawmill (Electric Model )

  • Portable horizontal band saw which is easy to install and operate.
  • Finished with Carbide band saw blade for hard wood cutting .
  • The sawing kerf is small, reduce the waste to high output.
  • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
Specifications:

Model

MJ700E MJ1000E MJ1300E MJ1600E

Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM

Saw Wheel Diameter

600MM 700MM 700MM 700MM

Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM

Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500

Main Motor Power

15KW 18.5KW 22KW 30KW

Lifting Motor Power

1.5KW 1.5KW 1.5KW 1.5KW

Total Weight (KG)

1100 1100 1300 1500

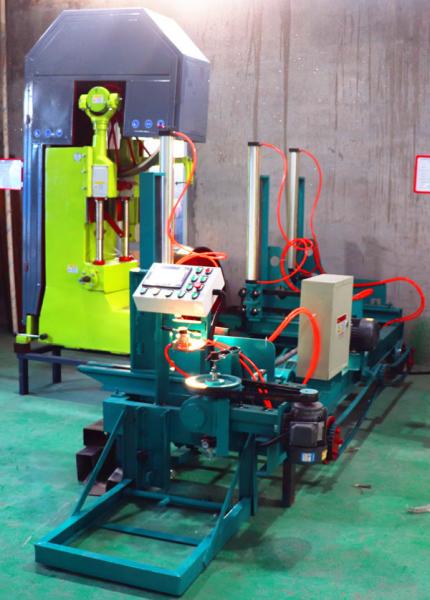

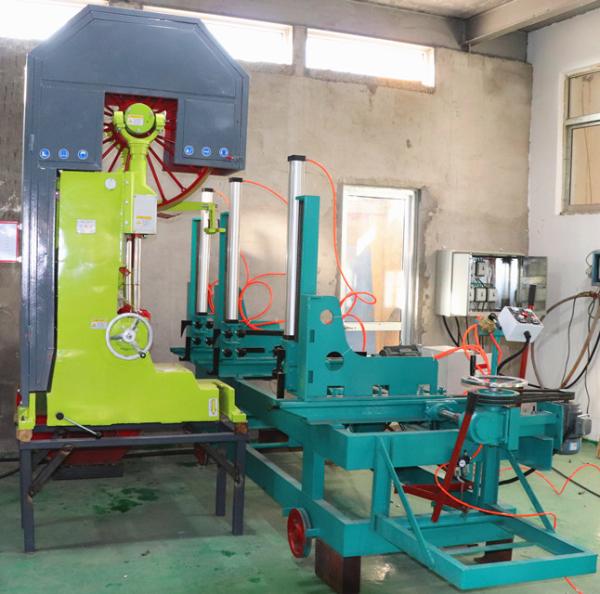

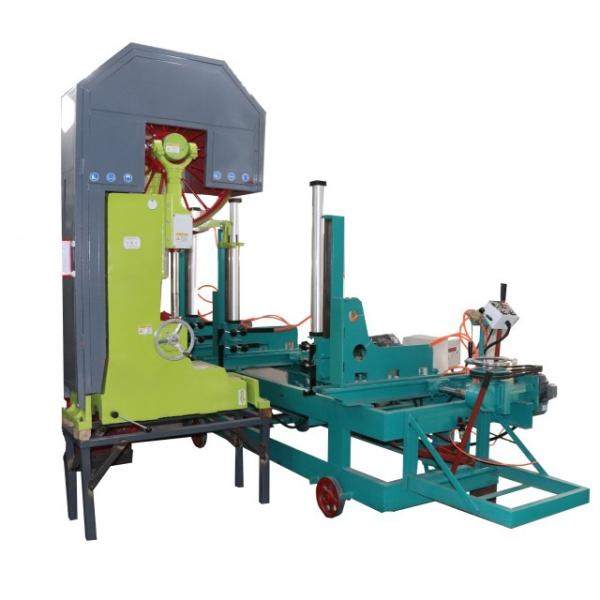

Detailed Images of stanard model:

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage

MJ3310 Vertical wood cutting band saw, log sawing sawmill machine with CNC Carriage
