Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
MJ3210-Z5000,MJ3310-Z3000, MJ3212-Z5000
MOQ :
1 SET
Price :
USD5,000-USD50,000/SET
Packaging Details :
container loading
Delivery Time :
within 20 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
1500sets/year
Name :
Vertical band sawmill with CNC log carriage
Application :
Vertical cutting wood logs
Condition :
New
Max. sawing log diameter :
1000mm or 40''
max. sawing log length :
6meters
Feeding :
electric type
Saw clip and wheel up/down :
electric
Carriage moving right/left :
automatic
Band wheel diameter :
1070mm
main motor power :
30KW
Description

Electric Vertical Band Saw Log Cutting Band Sawmill with CNC carriage For Sale

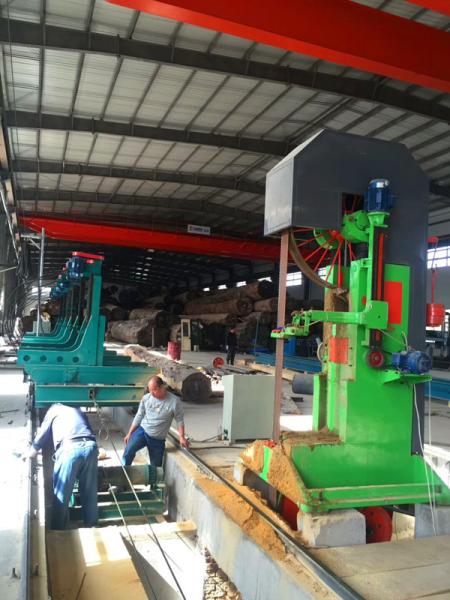

Vertical Band Sawmill With CNC Log Carriage

  • This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.
  • In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
  • Technical data
Technical data MJ3310-DD3000 MJ3310-DD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 6850x125x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Manual Manual
Carriage walking/advance Electric Electric
Setting sawn size Electric Electric
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

Manual type carriage :

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage

MJ3310 Vertical Band Sawill with CNC automatic Log Carriage

Technical data MJ3310-ZD3000 MJ3310-ZD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 7400x150x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model
SH100-400
SH120-400
SH160-400
SH200-400
SH250-400
SH270-400
SH290-400
Sawing width
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
Sawing thickness
40-100mm
50-120mm
70-160mm
90-200mm
110-250mm
130-270mm
150-290mm
Motor
30kw*2
37kw*2
37/45kw
37/45kw
45kw*2
45/55kw
55KW*2
Saw Blade Diameter
180MM
230mm
255mm
230mm
280mm
280mm
380mm
Spindle Diameter
70mm
70mm
70mm
80mm
80mm
80mm
100mm
Weight
2330kg
2450kg
2480kg
2550kg
2580kg
2620kg
2700kg

Diameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriageDiameter 1000mm Vertical Band Sawmill Timber Cutting Machine Vertical Bandsaw Mill with CNC Log carriage
