Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
SHYM200,SHYM250, SHYM300, SHYM450
MOQ :
1 unit
Price :
USD38,000-USD95,000/Unit
Packaging Details :
film wrapped
Delivery Time :
within 20 days
Payment Terms :
T/T
Supply Ability :
100units/year
Name :
Multiple Blade Rip Saw production line
Condition :
New
Voltage :
380v/3ph/50hz or as customer needs
Max. sawing log diameter :
500mm
Sawing log length :
3meters or as customer needs
Blade cooling :
Water cooling
Operation :
Automatic
Others :
We design line as customer detailed requirements
Guarantee :
1 year
After-sales service :
Video technical support, working test before delivery
Description

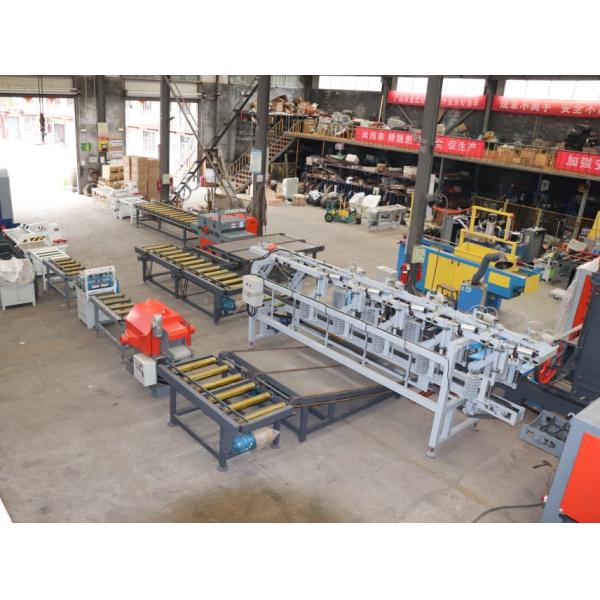

Multiple Blades Rip Sawmill Production Line
The max sawing wood diameter is 200mm , Max Loading Log Length3000mm

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

1 Log Loading Deck
Max Loading Log Length 2500MM
Max Loading Log Diameter 350MM
Horizontal Loading Belt 2
Distance Between Loading Belt 800mm
Motor Power 2.2KW
Log Cutting Multiple Blades Sawmill
Sawing Log Diameter 200mm
Min Sawing Log Length 1000mm
Spindle speed 2800r/min
Main Motor power 22KW*2
Feeding Motor 2.5KW
Saw Blade Quantity 2-10 pieces
Saw Blade Diameter 305mm
Variable Frequency Speed Adjustable Feeding,
Axles Center Water Cooling System,
one set Spacer pad,6 pieces saw blade.
Circular Saw Blade Diameter 305 MM

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machinesFull Automatic multiple blades rip sawmill Production Line for round logs sawing machines

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

2 Wood conveyor
Max Loading Log Length 2500MM
Horizontal Loading Belt 2
Distance Between Loading Belt 800mm
Motor Power 2.2KW

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

3,6 CS600-6000 Conveyor Belt (With power)
Length 6000mm
600mm
Width
1.5KW

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

5 Multiple Blade Saw Machine
Max. Sawing width 250mm
Max. sawing thickness 120mm
Min Sawing length 600mm
Spindle Speed 2800 r/min
Motor 22KW*2
Feed Motor 2.2KW
Saw Blade Diameter 230mm
Saw Blade Quantity 2-10 pieces
Cooling Water Pressure 0.3-0.6PA
Including:Variable Frequency Speed Adjustable Feeding,
Axles Water Cooling System,Spacer pad,6 pieces saw blade.
Circular Saw Blade Diameter 230MM

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

7,9 Offcuts Circular Sawmill
Max Sawing Wood Width 200MM
Motor Power 7.5KW*2
Feeding Speed Variable Frequency
Circular Saw Blade Diameter 305MM
Multiple Blade Rip Sawmill
Max Sawing Wood Thickness 50mm
Max Sawing Wood Width 380mm
Saw Blade Diameter 230mm
Motor Power 7.5KW
Saw Blade Quantity 1P-5P
Spindle Speed 5800/min
Circular Saw Blade Diameter 230mm

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

10 Automatic Board Edger
Max. sawing thickness 35mm
Max Cutting Log Length 3000mm
Max Cutting Plank Width 200mm
saw heads quantity 4
Motor Power 2.2KW*4

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

4,8 CS600-2000 Conveyor Belt (No power)
Length 2000mm
600mm

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines

11 Automatic Carbide Circular Saw Blade Sharpener
Saw Blade Diameter 125-800MM
Feeding Speed 0-24 Teeth /Minute
Grinding Wheel 150MM
Grinding Wheel Motor 370W

Full Automatic multiple blades rip sawmill Production Line for round logs sawing machines
