Specifications
Place of Origin :
Shandong Province, China
Brand Name :
SH
Certification :
ISO9001
Model Number :
EG600A, EG800, EG1000
MOQ :
1 SET
Price :
US $5,000 - 9,000 / Set
Packaging Details :
export iron frame packing
Delivery Time :
within 14 days
Payment Terms :
T/T or L/C at sight, Western Union
Supply Ability :
500sets/year
Name :
Board edger rip saw
Type :
Circular blade saw
Use :
Woodworking
Voltage :
380V/50HZ/3phase or as customer needs
Power(W) :
7.5kw x 2
Sawing width :
50mm to 1000mm
Sawing height :
10mm to 70mm
Blade diameter :
350mm
Warranty :
1 Year
Description

Double Blade Edge Trimming Saw Wood Ripping Saw Machine Circular Saw For Wood
Twin Blades Wood Board Edger/border cutting machine

1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable

  • Technical data
ModelEG600EEG800EEG1000E
Sawing width50-600MM50-800MM50-1000MM
Sawing height10-70mm10-70mm10-70mm
Blade diameter2*350MM2*350MM2*350MM
Feeding speed20-25m/ minute20-25m/ minute20-25m/ minute
Main motor power7.5KW*27.5KW*27.5KW*2


Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width
Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm WidthDouble Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width

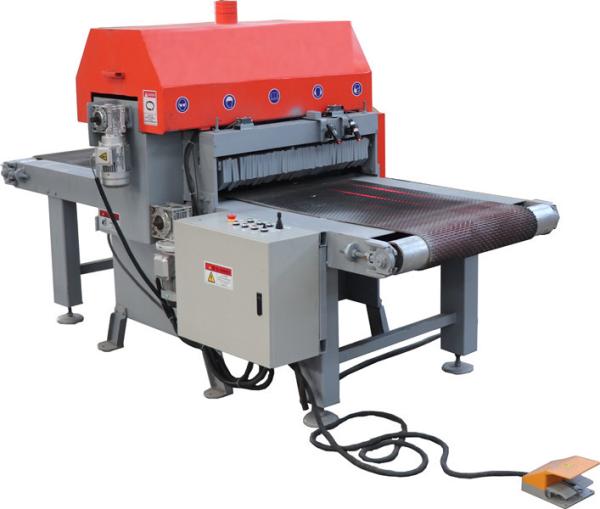

Multi Blades Rip Saw
Introduction:

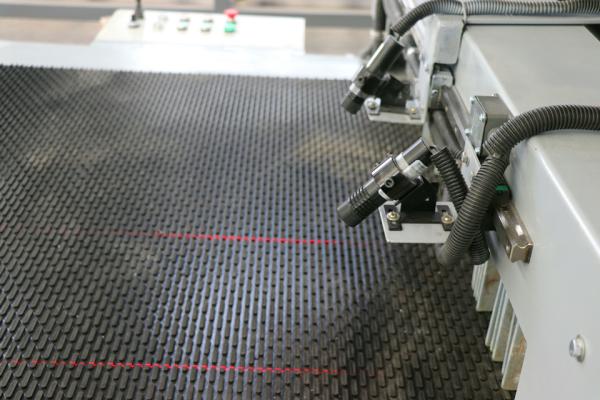

  • with Infrared positioning
  • for board edges cutting
  • sawing planks into small pcs
  • easy usage, no installation

Technical data :

ModelHW500HW800
Sawing thickness15-50mm15-50mm
Sawing width500mm800mm
Circular blade diameter210mm210mm
Electric motor15KW18.5KW
Blade qty1P-6P1P-10P
Rotation speed3500/min3500/min
















Photos:
Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm WidthDouble Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width

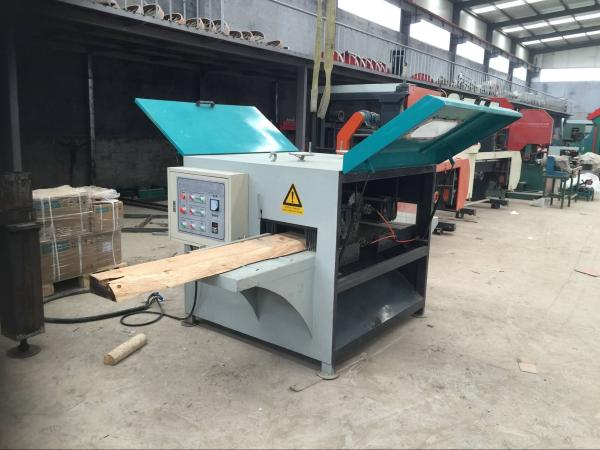

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:

  • with Infrared positioning
  • for big thickness board edger cutting
  • high working efficiency, low cost ,fulfil the max. value of the wood
  • easy usage, no installation

Technical data :

ModelZHW800-70ZHW800-80ZHW800-100
Sawing wood height10-70mm10-80mm20-100mm
Sawing wood width800mm800mm800mm
Carbide blade diameter280mm305mm355mm
Main motor22KW30KW37KW
Blade quantity1P-10P1P-10P1P-10P
Rotation speed3500/min3500/min3500/min

















Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width
Related Saw Machine:
Wood Slabs Cutting Circular Sawmill
Specifications:

Model
Specifications

BPJ200BPJ250BPJ300
Cutting width (mm)200250300
Motor power (KW)7.5kw x 27.5kw x 27.5kw x 2
FeedingFrequency variable auto feeding
Circular blade diameter (mm)300355405
Weight (kg)200220250


We can also do bigger model as customer needs .

Photos :


Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width
Double Blade Edge Trimming Saw Multi Rip Saw Machine 50mm To 1000mm Width
