Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine
Specifications
Brand Name :
TONGLINT
Model Number :
GT2259LS
Certification :
TS16949 / SGS
Place of Origin :
Jiangsu ,China
MOQ :
5
Payment Terms :
Western Union, T/T
Supply Ability :
1000 pcs/ Month
Delivery Time :
10 working days
Packaging Details :
Neutral Packing
Product :
Cartridge
Model :
GT2259LS
Part No. :
766237-5004S
Application :
N04C-TK Engine
Testing :
Balanced
Description

Hino Truck, Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine

Specifications:

Part Number 766237-5004S
Previous Version 766237-5001S, 766237-0005, 766237-5005S, 766237-0001, 766237-0005, 766237-4, 766237-0004
OE number 17201E0080, 17201E0080A, 17201E0081, 17201-E0081, 17201-E0080
Year 2006-
Description Truck, Bus
CHRA 433352-0085 (433352-5085S)
Turbo Model GT22, GT2259LS
Engine N04C-TK
Engine Manufacturer HINO, Toyota Coaster Bus
Displacement 4.0L, 4000 ccm, 4 Cylinders
KW 110/180
RPM Max 3000
Fuel Diesel
Angle α (compressor housing) 297
Angle β (turbine housing) 229
Bearing Housing 734516-0004
Turbine Wheel 434716-0028
Comp. Wheel 702549-0020
Back plate 721019-0004
Heat shield Number 434685-0001
Repair Kit 709143-0001
Turbine Housing 700717-0018
Compressor Cover 773916-0082
Actuator 707787-0013
Settings Waste gate (pressure) 1.100-1.170 bar
Settings Waste gate (lift rod) 0.32 mPictures:

Pictures:

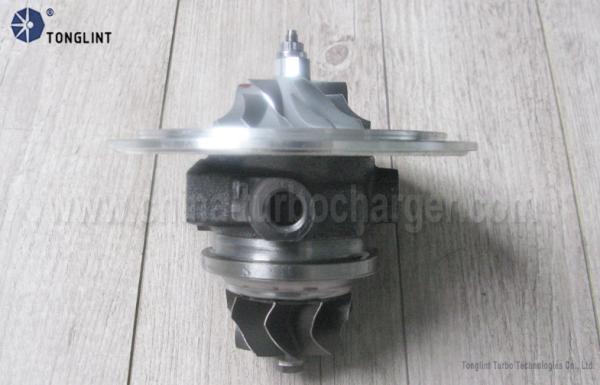

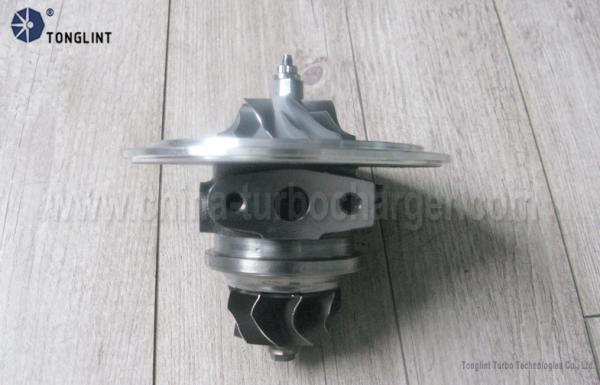

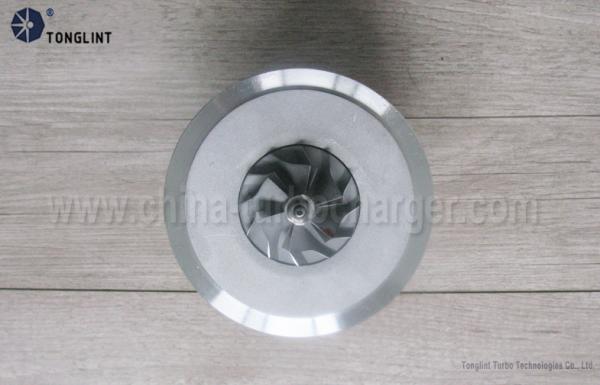

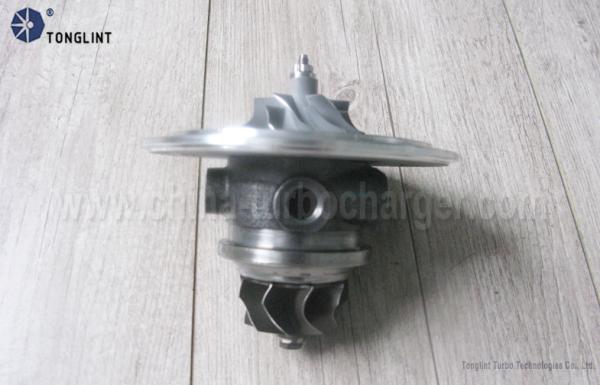

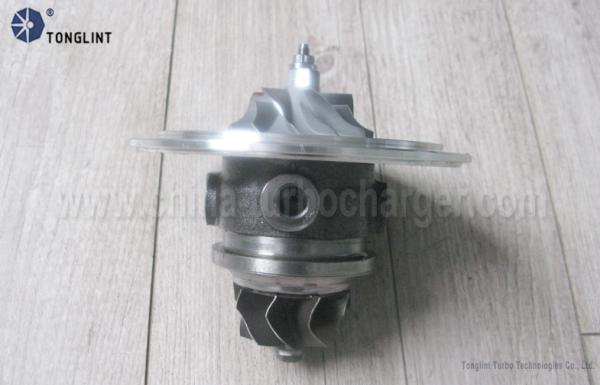

Hino Truck Bus GT2259LS 766237-0004 17201-E0080 Turbo CHRA Cartridge For N04C-TK Engine



Other Turbo Core:

KP35 54359700000/54359880000 　
KP35 54359700002/54359880002 　
KP35 54359700005/54359880005 　
KP35 54359700009/54359880009 　
KP39 54399880007 　
BV39 / KP39 54399880022 038253014G


Sales Market:

Main Markets

Revenue (%)

Main Product(s)

South America

35.00%

Turbocharger & Turbo Spare Parts

North America

35.00%

Turbocharger & Turbo Spare Parts

Eastern Europe

10.00%

Turbo Spare Parts

Domestic Market

5.00%

Turbocharger & Turbo Spare Parts

Southeast Asia

5.00%

Turbocharger & Turbo Spare Parts

Eastern Asia

3.00%

Turbocharger & Turbo Spare Parts

Africa

2.00%

Turbocharger & Turbo Spare Parts

Western Europe

2.00%

Turbo Spare Parts

Mid East

2.00%

Turbocharger & Turbo Spare Parts

Oceania

1.00%

Turbocharger & Turbo Spare Parts
