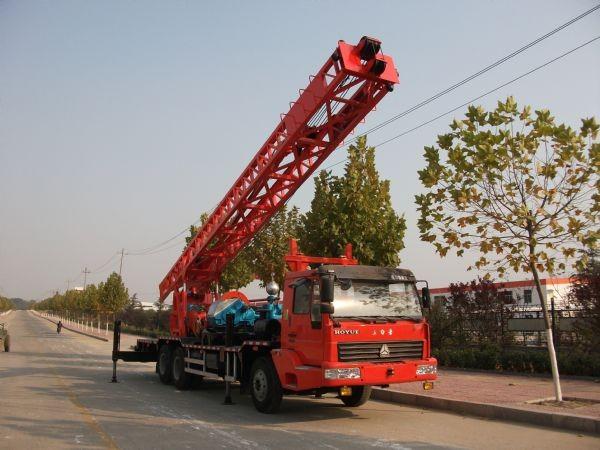

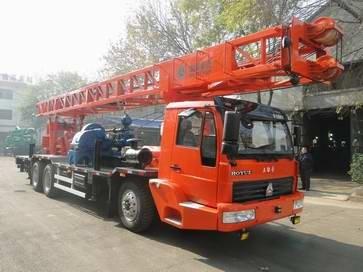

truck mounted water well drilling rig TAZ5173TZJBZC350

Specifications

Place of Origin :

Tanan city, China

Brand Name :

CNHTC

Certification :

ISO9001

Model Number :

TAZ5173TZJBZC350

MOQ :

1 unit

Packaging Details :

Nude packing

Delivery Time :

30 days after receiving 30% deposit by T/T

Payment Terms :

L/C,T/T

Supply Ability :

200 Unit/Units per Year

Description

Specifications:

TAZ5173TZJBZC350 is a multi-purpose water well drill machine .

for light, highly efficient, multi-purpose crawler rigs, which are mainly used in the drilling of wells, monitoring wells, ground source heat pump air-conditioning and other deep hole, especially for applications that require high-performance intensive operations ground-source heat pump air-conditioning hole works.

Technical parameters

Engine Power	Kw	59
Maximum drilling depth	m	400
Drilling diameter	mm	105-305
Air pressure	Mpa	1.05-2.46
Total gas consumption	m³/min	16-30
Footage efficiency	m/h	10-25
Pipe length	m	3
Pipe diameter	mm	Φ89/Φ76
Axial pressure	t	4.5
Lifting Power	t	8
Slow up speed	m/min	4.9
Slow forward speed	m/min	0.5-7.9
Quick up speed	m/min	26
Quick forward speed	m/min	45
Slewing torque	N*m	4000-5400
Rotary speed	r.p.m	0-100
Walking speed	km/h	2.5
Gradeability	°	21
Host weight	t	6.5
Host Overall dimensions	mm	5600x2080x3100
