Product Description:
TITAN produce high qualityFence Semi Trailerwith 60 ton loading capacity and 600mm to 800mm Side Walls, and the side wall fence semi trailer is a specialized for carrying 40ft cargo trailer, two 20ft containers, or one 20ft container without removing the side walls or frame.
All the key component and parts used to make up the Side Wall Fence Trailer are purchased from qualified suppliers, so ourside wall fence semi trailerare able to withstand a long time of use, exhibiting great strength.
Specification:
| Remark | This Specification just for your reference, we can produce fence semi trailer as your demands. |
| Dimensions | 13000mm*2500mm*2000mm |
| Side wall | 600mm, 800mm, 10000mm |
| Loading Capacity | 60 Ton |
| Tire | 12R22.5, 12units |
| Rim | 9.00-22.5, 12units |
| Axles | 4X13T BPW or FUWA brand |
| King Pin | 3.5 inch JOST Brand |
| Brake System | WABCO Valve and relays/ABS |
| Landing Gears | JOST Landing gear |
| Susension | Mechanical spring suspension |
| Electrical | 24 V |
| Light | LED light ( speically intended for Africa market) |
| Container lock | optional |

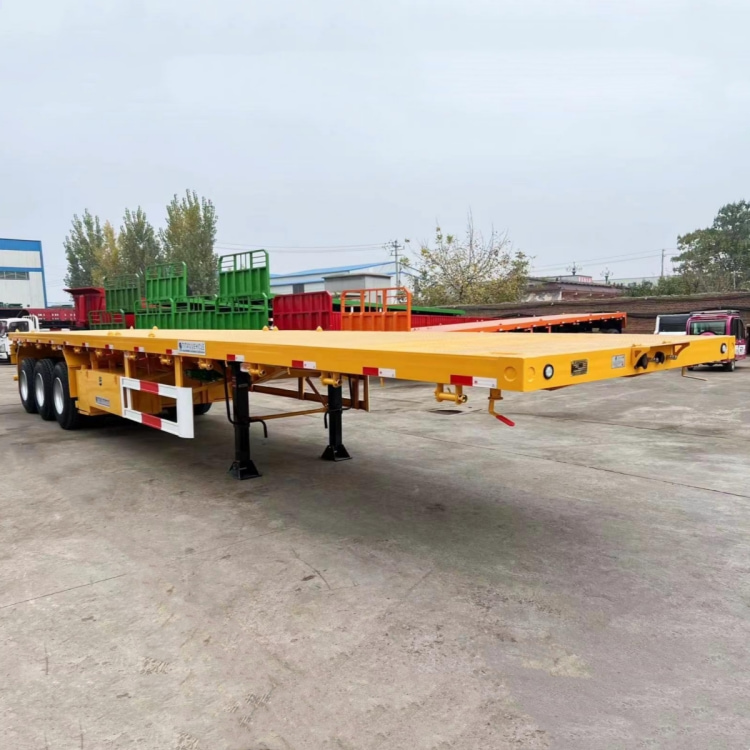

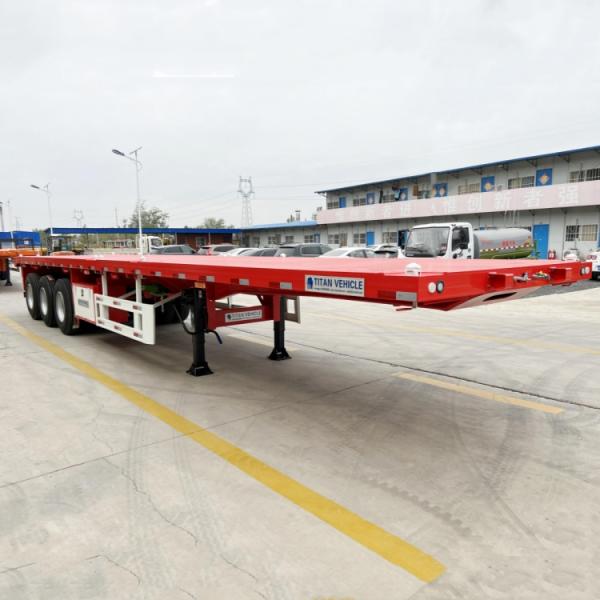

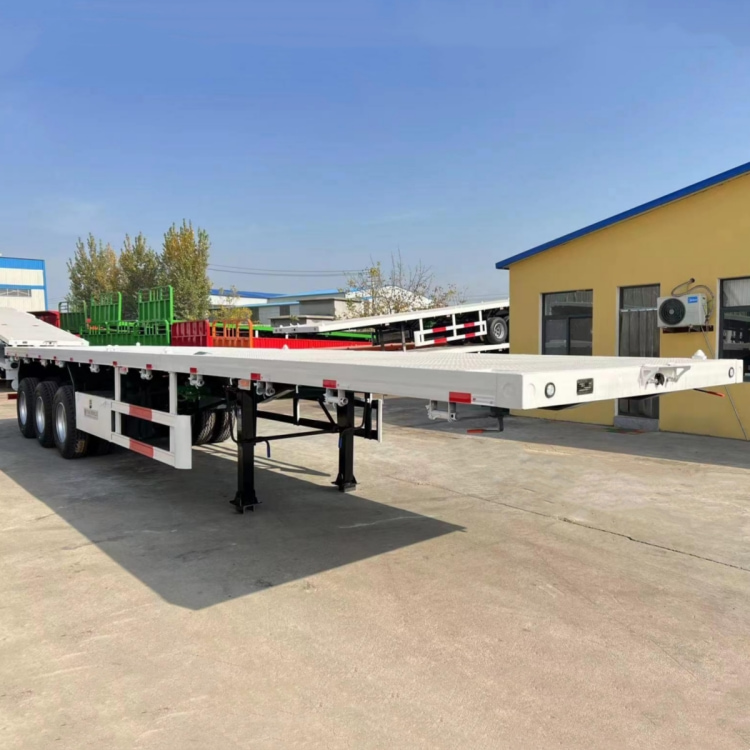

1.TITAN flatbed container trailer adoptsadvanced designconcept. After fully understanding and analyzing the transportation environment in different countries.
2.TITAN Vehicle adoptshigh strength steelmaterial to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
3.TITAN uses the 13 ton axle but the 16 ton 220 mm width brake pads which can improve the brake performance 20 %.
When transporting sugar cane trailers, many customers use container transportation, which has low transportation costs and short transportation time. But the bad thing is that the rear of the fence semi trailer needs to be composed.
Some customers are bulk carriers or ro-ro ships. Titan Flapper Semi Trailer will spray wax and cover the tarpaulin when the cargo ship is bulking.
If you are interested, welcome to the inquire to us! Please fill in your contact information and suggestions! Thank you!
