Video show:

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.

https://youtu.be/OkLrVipEN8w

3 axle tipper trailer https://youtu.be/xtHc8T72rf8

Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam . The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.

Specification:

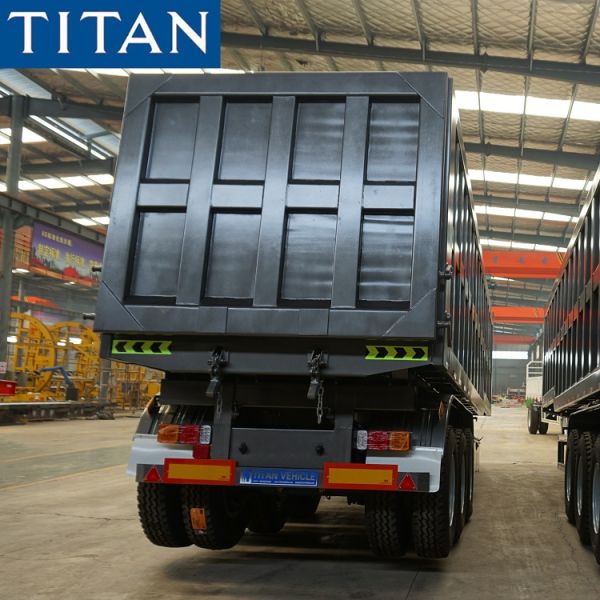

Product Name: Tipper Trailer/Dump Semi Trailer
Function: Transport heavy Stone and Sand
Loading weight: 60t
Main beam: The height of the beam is 480 mm, upper plate is14mm,down plate is 14mm,middle plate is 8mm.
Tool box: 1 unit
Traction pin: JOST Brand, optional 2" or 3.5"
Land gear: Standard 28ton
Axle: 13ton for each axle
Axle brand: FUWA Brand axle
Suspension type: Mechanical suspension

Shipment:

To prevent the TITAN tipper semi trailer paint from being corroded by seawater, TITAN sprays a layer of wax on the surface of the dump trailer before shipping, and then seal it with a waterproof rain cloth.
