4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
Specifications
dimension(l*w*h) :
1500*1200*2200
filling material :
Oil, Liquid Soap, Viscous Liquid, Honey, Peanut Butter, Shampoo, Glue
driven type :
Electric
filling accuracy :
±3%
core components :
Motor, PLC, Pump
automatic grade :
Automatic
Material :
SUS304 / 316
packaging material :
Plastic, Metal, Wood
Voltage :
220 V, 110 V, 415V, 380 V
Product name :
Automatic Liquid Filling Machine
Filling head :
4-12Heads(Customizable)
Control :
PLC+ Touch Screen
filling nozzle :
4, 6, 10, 8
key selling points :
Easy To Operate, Competitive Price, Digital
video outgoing-inspection :
Provided
Weight (kg) :
500
MOQ :
1 set
After-sales Service Provided :
Video Technical Support
Filling Volume :
50ml-20L, 50ml-5000ml
warranty :
1 Year
machinery test report :
Provided
Filling speed :
1200-300BPH
Place of Origin :
Shandong, China
Brand Name :
JIUTAI
packaging type :
Bottles, Cans, Barrel, Pouch
After Warranty Service :
Online Suppot
Price :
$12,000-12,500 / set
Keywords :
Fillng Machine
application :
Water, Chemical, Other
Bottle type :
plastic bottle glass bottle
Suitable for :
viscous liquid(Edible oil, engine oil, washing products, etc.)
Description
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
Products Description
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
This automatic tracking filling machine uses a servo motor to control the piston for liquid filling. Thanks to the piston-type filling principle adopted by the equipment, it is suitable for filling high-viscosity liquids such as edible oil, motor oil, detergent, and gel. During the filling process, the filling nozzle will follow the movement of the bottle and perform filling synchronously, featuring faster filling speed and higher filling accuracy.
Details Images
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine

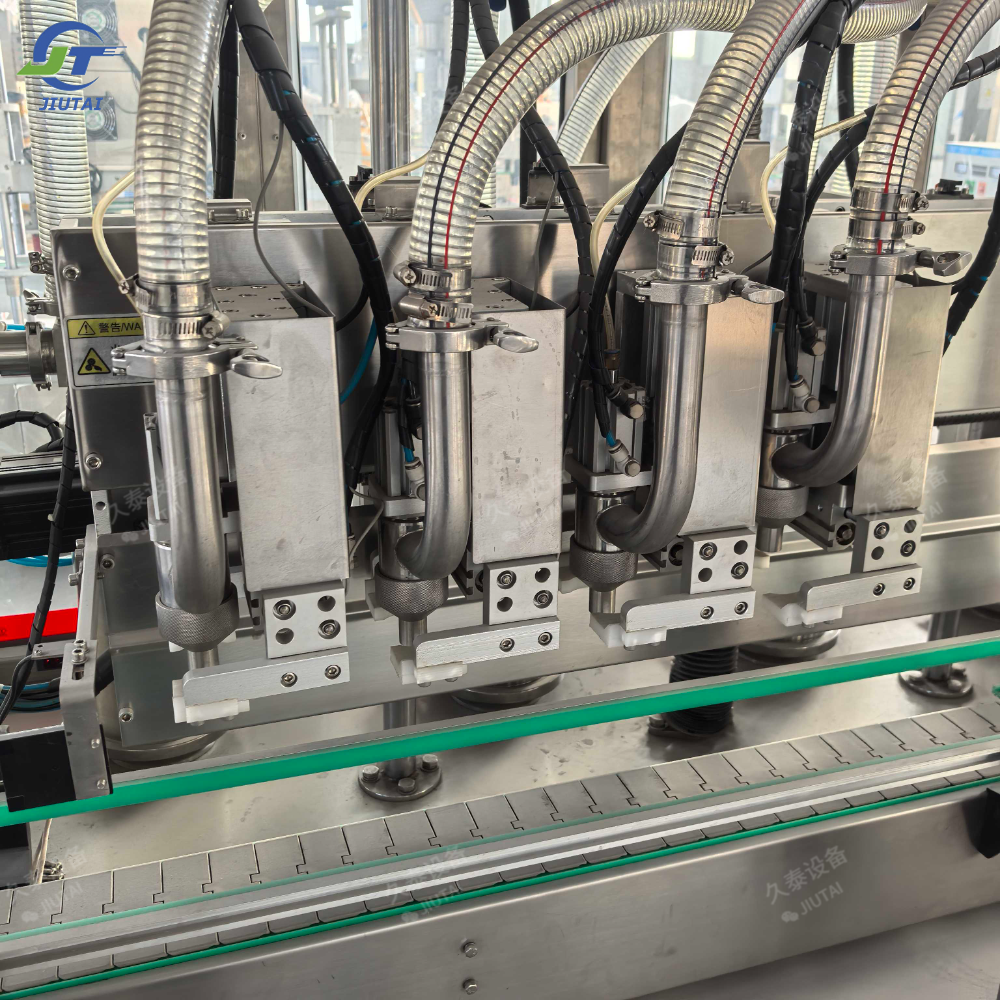

Tracking filling nozzles

During the filling process, the filling nozzles will follow the movement of the bottles and complete the material filling synchronously. Multiple filling nozzles can be customized according to production needs, and each filling nozzle is connected to a piston controlled by a servo motor.
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine

Automatic Tracking Filling Machine

1. This machine uses optical fibers to track bottles, enabling high-speed and efficient filling with an uninterrupted production process.
2. It is suitable for filling viscous liquids such as edible oil, motor oil, shampoo, shower gel, and hand soap.
3. It operates fully automatically. Bottle feeding, positioning, filling, and bottle discharging are all controlled automatically by PLC, and the entire process complies with GMP standards.
4. According to the characteristics of different products, various metering methods such as pumb type, rotor pump, flow meter, and solenoid valve can be provided.
5. For bottles of different heights and capacities, especially special-shaped bottles, debugging can be completed in only 3-5 minutes.
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
Touchscreen Control Panel: The electric control box is equipped with an intuitive touchscreen interface, featuring simple operation, which allows for convenient, quick and precise adjustment of filling volume and filling speed. Moreover, it integrates real-time monitoring function of the filling process, ensuring easy operation and efficient troubleshooting.

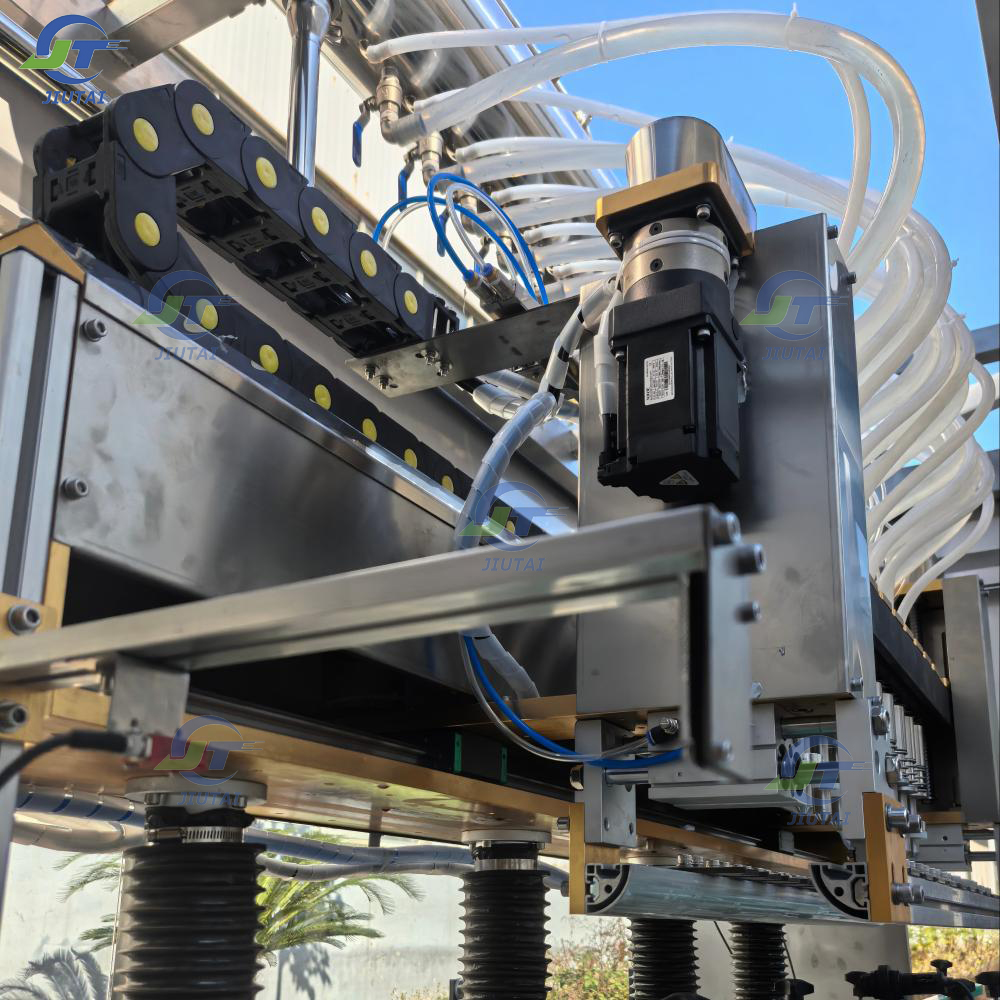

Tracking Module：This module is the core of synchronous filling capability. It can seamlessly coordinate the movement of filling nozzles and the conveyor line, enabling the nozzles to accurately follow the bottles (including special-shaped bottles) during the filling process. This synchronous movement, combined with the continuous operation of the conveyor line, eliminates production bottlenecks and maximizes output.
Note: We can customize the machine according to your actual output requirements and plan the layout of the production line based on your site, so that you can achieve the most efficient use of the site.
Product Paramenters
Model
JTTF-1，JTTF-2，JTTF-4，JTTF-6
Filling speed
2000~3600BPH
Filling volume range
100~5000ml
Filling method
Servo Piston
Bottle size
H=80-180mm W=15-120mm（customized）
Filling accuracy
About ±0.5%
Air pressure
0.5~0.8Mpa
Machine size
1500*1200*2200mm（customized）
Weight
500Kg
Company Profile
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
Qingzhou Jiutai Packaging Equipment Co., Ltd. specializes in filling, packaging and water treatment equipment. Star products include full-auto liquid filling machines, intelligent production lines and flexible systems for diverse industries. Serving 30+ countries, we provide customized, energy-efficient solutions with ISO9001/CE certification. Our goal is to optimize efficiency, cut costs via advanced tech, and drive smart manufacturing upgrades under the "technology + service" philosophy, offering full-cycle support for long-term partnerships.
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
Why Choose Us
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
Product packaging
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
FAQ
1. What main products does Qingzhou Jiutai specialize in?
We specialize in manufacturing filling machinery, packaging equipment, and water treatment
systems, including full-auto liquid filling machines, intelligent packaging lines, and carbonated liquid mixers.

2. Do your products meet international standards?
Yes, all core products are certified under ISO 9001 and CE, ensuring compliance with global quality and safety regulations for food, beverage, and chemical industries.

3. Can you provide customized solutions for specific needs?
Absolutely. We offer tailored equipment designs and production lines to meet unique requirements, with case studies in 30+ countries demonstrating our expertise in customized, energy-efficient solutions.

4. What after-sales support do you provide?
Our "technology + service" philosophy includes comprehensive support: R&D consultation, installation guidance, maintenance training, and 24/7 technical assistance to ensure long-term operational efficiency.

5. How does your equipment enhance production efficiency?
Our automated systems (e.g., semi-auto capping machines, conveyor lines) reduce manual labor, while intelligent controls and energy-saving designs optimize output by up to 40% compared to traditional models.
4 Head Automatic Viscous Liquid Ketchup Chilli Sauce Glass Jar Filling Packaging Machine
